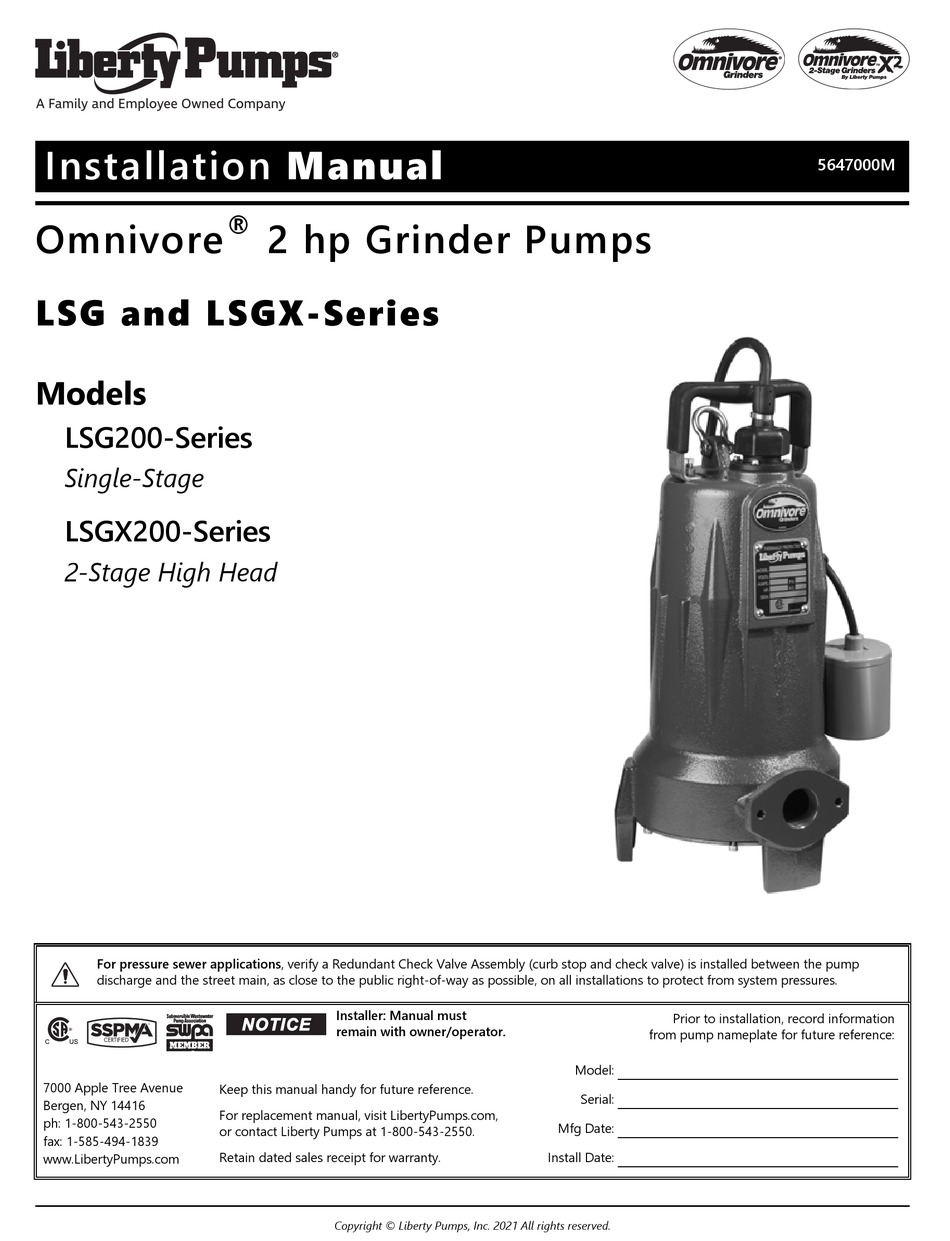

Installation Manual

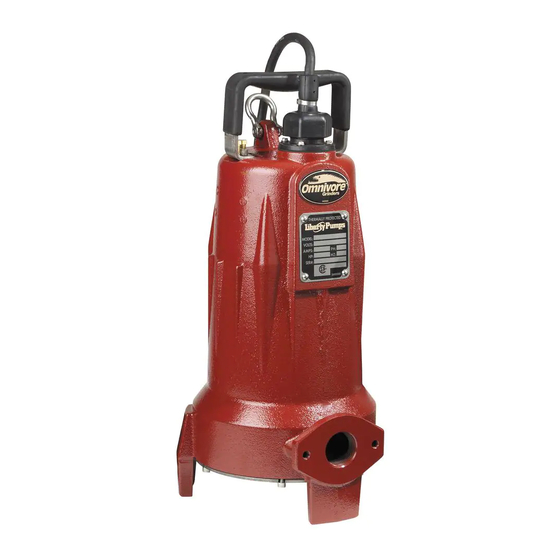

Omnivore
LSG and LSGX-Series
Models
LSG200-Series
Single-Stage
LSGX200-Series
2-Stage High Head
For pressure sewer applications, verify a Redundant Check Valve Assembly (curb stop and check valve) is installed between the pump
discharge and the street main, as close to the public right-of-way as possible, on all installations to protect from system pressures.
7000 Apple Tree Avenue
Bergen, NY 14416
ph: 1-800-543-2550
fax: 1-585-494-1839
www.LibertyPumps.com
®
2 hp Grinder Pumps
Installer: Manual must
remain with owner/operator.
Keep this manual handy for future reference.
For replacement manual, visit LibertyPumps.com,
or contact Liberty Pumps at 1-800-543-2550.
Retain dated sales receipt for warranty.
Copyright © Liberty Pumps, Inc. 2021 All rights reserved.
Prior to installation, record information
from pump nameplate for future reference:
Model:
Serial:
Mfg Date:
Install Date:
5647000M
