Liberty Pumps Omnivore XLSG200 Series Installation Manual

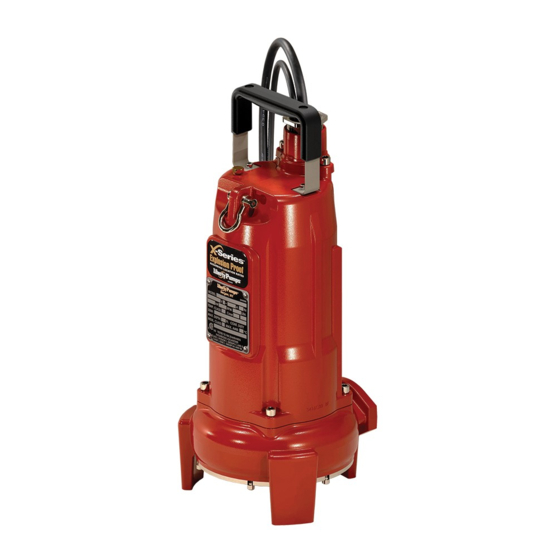

Explosion-proof 2 hp grinder pumps

Hide thumbs Also See for Omnivore XLSG200 Series:

Installation manual (12 pages)

page of 12

/ 12
Bookmarks

Quick Links

Download this manual

Installation Manual

Omnivore

2 hp Grinder Pumps

XLSG and XLSGX-Series

Models

XLSG200-Series

Single-Stage

XLSGX200-Series

2-Stage High Head

7000 Apple Tree Avenue

Bergen, NY 14416

ph: 1-800-543-2550

fax: 1-585-494-1839

www.LibertyPumps.com

Explosion-Proof

Approved for Hazardous Locations

Class I, Division 1, Groups C and D T4

Class I, Zone 1, Groups IIA and IIB T4

Keep this manual handy for future reference.

For replacement manual, visit LibertyPumps.com,

or contact Liberty Pumps at 1-800-543-2550.

Retain dated sales receipt for warranty.

Installer: Manual must remain with owner or

operator/maintainer.

Prior to installation, record information

from pump nameplate for future reference:

Model:

Serial:

Mfg Date:

Install Date:

6850000D

Need help?

Do you have a question about the Omnivore XLSG200 Series and is the answer not in the manual?

Questions and answers

Summary of Contents for Liberty Pumps Omnivore XLSG200 Series

Page 1 Keep this manual handy for future reference. Serial: Bergen, NY 14416 For replacement manual, visit LibertyPumps.com, ph: 1-800-543-2550 Mfg Date: or contact Liberty Pumps at 1-800-543-2550. fax: 1-585-494-1839 Retain dated sales receipt for warranty. Install Date: www.LibertyPumps.com Copyright © Liberty Pumps, Inc. 2021 All rights reserved.
Page 2  Do not use this product with or near flammable or explosive fluids such as gasoline, fuel oil, kerosene, etc. If rotating elements inside pump strike any foreign object, sparks may occur. Sparks could ignite flammable liquids. 2 | EN Copyright © Liberty Pumps, Inc. 2021 All rights reserved. 6850000D...
Page 3  Wear Personal Protective Equipment to protect hands as motor repairs and service must be performed by the factory cutter blades have extremely sharp edges and present a or a repair facility approved by Liberty Pumps and certified to serious cutting hazard. work on explosion-proof motor enclosures.
Page 4  At no time shall the pump be stored within an incomplete wet Contact Liberty Pumps customer service to report any damage or pit. The pump shall not be placed into the pit until it can be shortage of parts.
Page 5 3-phase units. This button must be pressed to reset the system Intrinsically safe control panels designed for use with the XLSG/ after the pump has cooled. 1-phase units reset automatically after XLSGX-Series pumps available from Liberty Pumps can be found the pump has cooled. at http://www.LibertyPumps.com/Portals/0/Files/ panel_selection_guide.pdf or contact Liberty Pumps.
Page 6  All electrical and safety practices shall be in accordance with Intrinsically safe (ISS and ISD) control panels by Liberty Pumps ® the National Electrical Code , the Occupational Safety and...
Page 8 Use of a guide rail system with multiple pumps or custom control configurations. shall be of a non-sparking design. Contact Liberty Pumps for available models, such as GR20NS. If guide rails are not used, complete all pump-mounted plumbing at this time, being sure all gaskets and components are present.
Page 9  Verify correct 3-phase pump rotation before retuning to capability to clean and flush the mid oil chamber. service. Otherwise, the pump must be returned to Liberty Pumps or an authorized hazardous repair facility for electrical and motor Maintenance service. This will ensure the integrity of the hazardous location...
Page 10 Motor stops and then restarts after short Pump operating on a short cycle due to basin period but overload A larger basin may be required. Consult Liberty Pumps. being too small. heaters in starter do not trip. Improper float switch setting.
Page 11 Foreign objects in the impeller cavity. Clean the impeller cavity. Consult Liberty Pumps for information regarding impeller Broken impeller. replacement. Worn bearings. Return pump to an authorized repair facility. 6850000D Copyright © Liberty Pumps, Inc. 2021 All rights reserved. 11 | EN...
Page 12 Liberty Pumps, Inc. shall not be liable for any loss, damage, or expenses resulting from installation or use of its products, or for indirect, incidental, and consequential damages, including costs of removal, reinstallation or transportation.
