3-2 Compaq 3U RM Storage Enclosure Reference Guide
Installing the Storage Enclosure
WARNING: To reduce the risk of personal injury or damage to the equipment,
be sure that:
I
The leveling jacks are extended to the floor.
I
The full weight of the rack rests on the leveling jacks.
I
The stabilizing feet are attached to the rack if it is a single rack installation.
I
The racks are coupled in multiple rack installations.
I
A rack may become unstable if more than one component is extended for
any reason. Extend only one component at a time.
Here are some tips before installing the storage enclosure:
I
Always start at the bottom of the rack, or at the top of a previously
mounted component, and work up.
I
Always make sure that the rack-mounting rails are level from front to
back.
I
Have a pencil available before you begin.
1. Attach the template to the front of the rack.
2. Mark the holes for the front tabs of the spring-loaded rack rails, and
mark the top and bottom edges of the template for successive
installation.

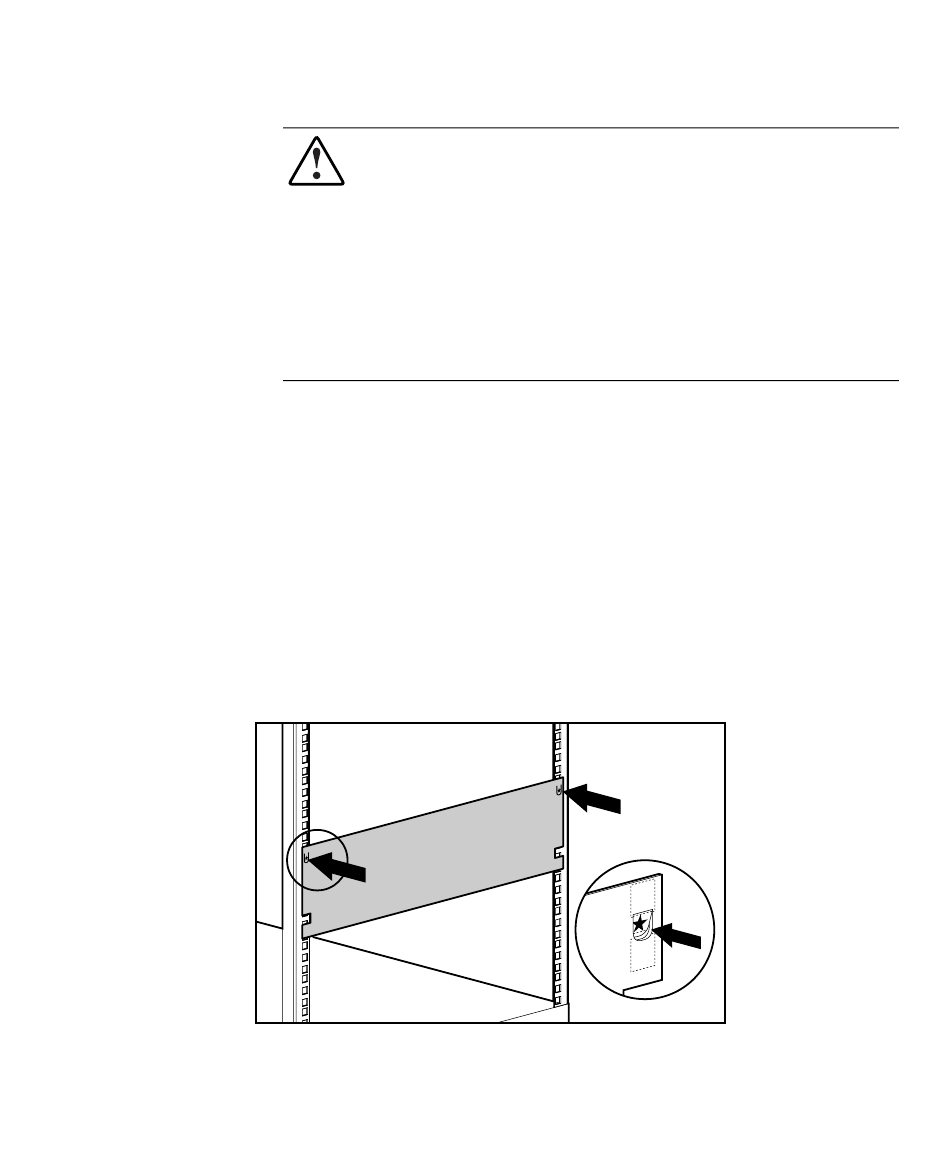

Figure 3-1. Measuring with the template
3. Repeat steps 1 and 2 on the back of the rack.
