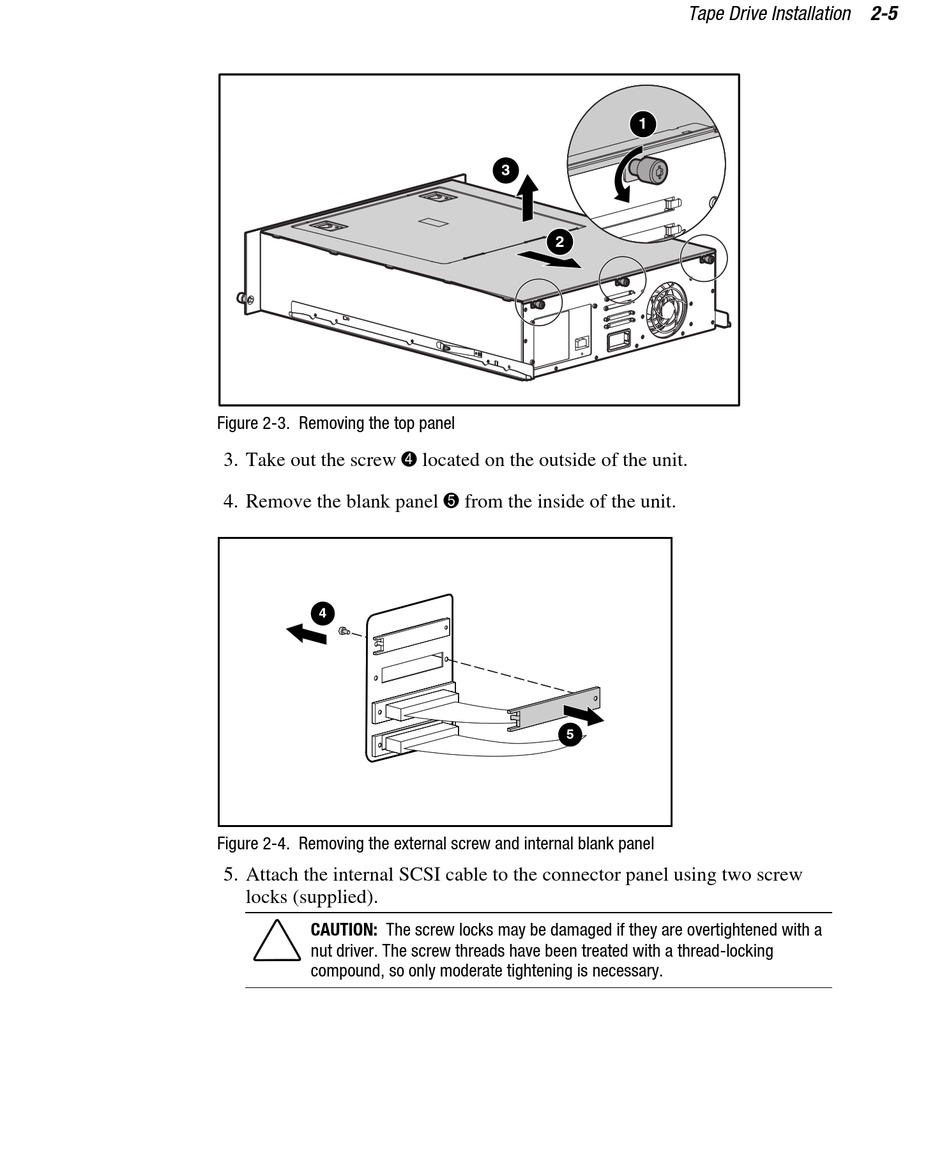

Figure 2-3. Removing the top panel
3. Take out the screw 4 located on the outside of the unit.
4. Remove the blank panel 5 from the inside of the unit.
4
Figure 2-4. Removing the external screw and internal blank panel
5. Attach the internal SCSI cable to the connector panel using two screw
locks (supplied).
CAUTION: The screw locks may be damaged if they are overtightened with a
nut driver. The screw threads have been treated with a thread-locking
compound, so only moderate tightening is necessary.
1
3
2
5
Tape Drive Installation 2-5
