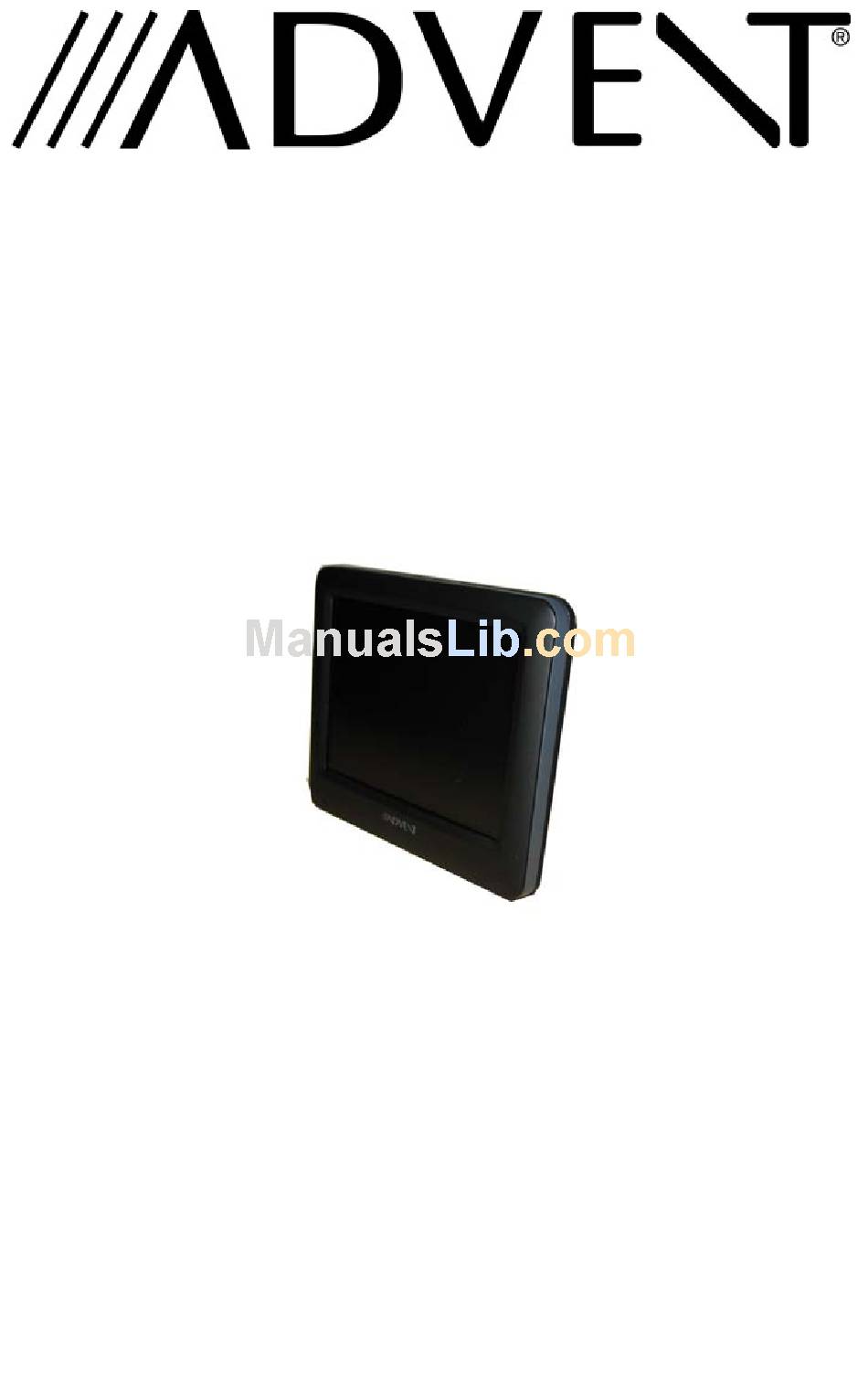

Page 1: Installation Manual
3.5” Inductive Touch Screen LCD Monitor • Low Profile, Slim Design • High Resolution TFT LCD • Built in Speaker • Two video inputs • Fully Adjustable • Auto brightness adjustment • DC12V – DC24V Model: LCD4WM LCD Monitor Installation Manual... -
Page 2: Table Of Contents
Table of Contents Warnings ...3 Product Description ...4 Packing List ...4 LCD Monitor Installation...5 Camera Wiring Diagram...7 Specifications ...7 Troubleshooting ...8... -
Page 3: Warnings
Warnings The product is intended to assist in safe driving and to allow the driver to have a broader rear view while the vehicle is in reverse. You, as the driver, are solely responsible for the safe operation of your vehicle and the safety of your passengers according to local traffic regulations. -
Page 4: Product Description
The LCD is perfect for use on your car, truck, or van. This wired Monitor is designed for use with an Advent camera but is compatible with most video sources and other cameras and can be connected using a standard RCA connector. -
Page 5: Lcd Monitor Installation
5. Attach reverse & accessory power wires. 6. Connect your reversing camera. Note: When using a Advent Camera with your Advent Monitor the signal and power for the camera will be supplied through the monitor extension cable. Please also note that the microphone in the camera will be played on the speaker built into the LCD monitor. - Page 6 Wiring the Camera to the Vehicle’s Reverse Lamp 1. Locate the reverse lamp in the tail light assembly. 2. Using the tap connector supplied, perform the following steps: Place the un-stripped positive lead from the tail lamp in the run channel, which runs completely through the connector.
-
Page 7: Camera Wiring Diagram
Monitor Wiring Diagram Note: If used with an Advent camera – the power and signal will be provided through a single cable from the monitor. Specifications 1. Voltage: DC9V – DC28V 2. Current: 300mA Maximum 3. Signal System: Switchable 4. Viewing Angle: 160 degrees 5. -
Page 8: Troubleshooting
No image from backup camera when vehicle placed in reverse Image is mirrored or requires adjustment Sound can not be heard from Advent camera Solution 1. Check that reverse power is attached to orange wire. 2. Check that accessory power is attached to red wire 3. - Page 10 © 2008 Audiovox Electronics Corp., 150 Marcus Blvd., Hauppauge, N.Y. 11788...
