SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO., LTD.
C60 User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the C60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Chainway C60

Summary of Contents for Chainway C60

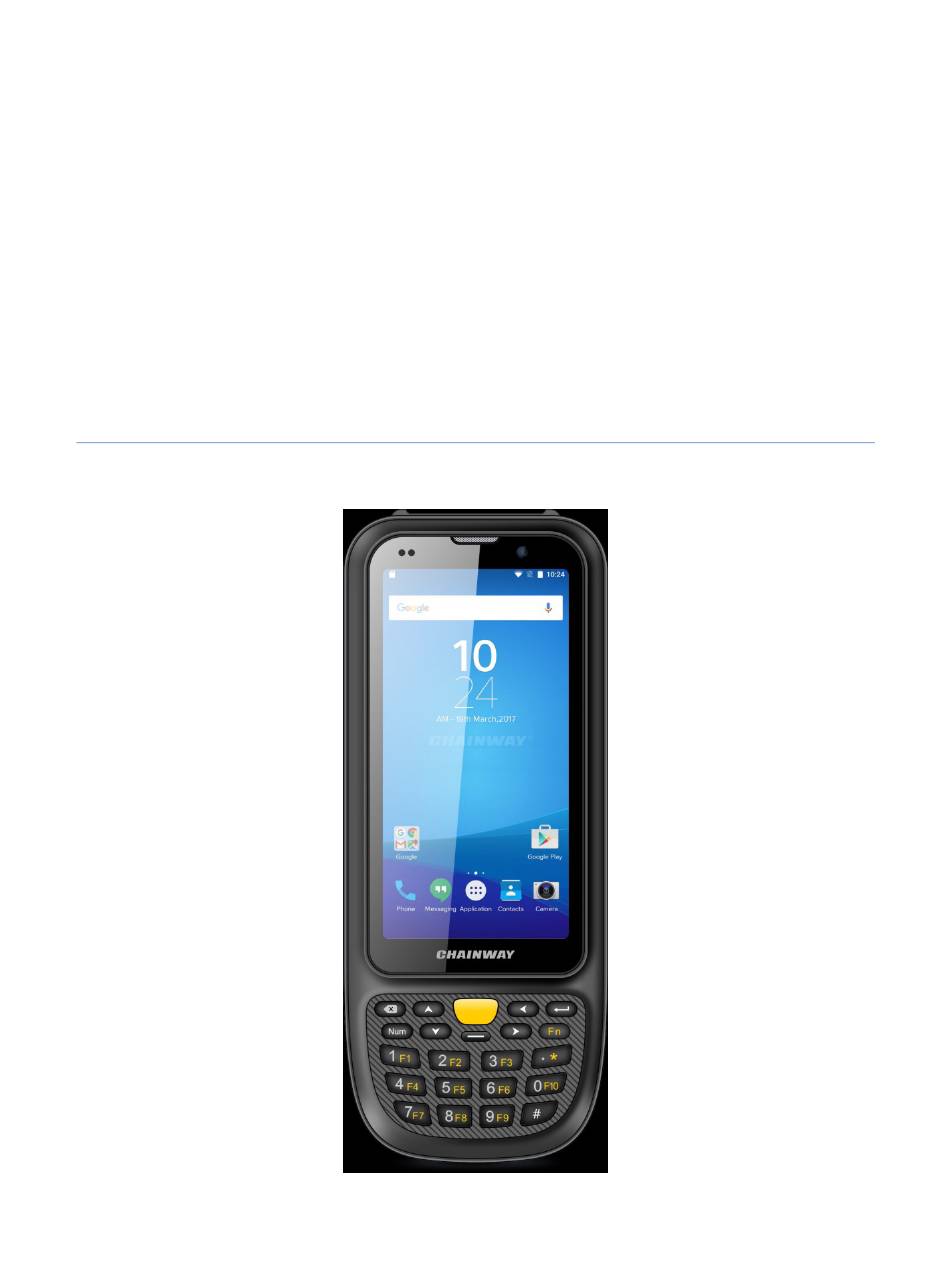

  • Page 1 SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO., LTD. C60 User Manual...

  • Page 2: Statement

    (licensed program). Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of Chainway. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law.

  • Page 3: Table Of Contents

    Contents Statement ..................1 Chapter 1 Brief Instruction ..............4 Brief Instruction ..............4 Precaution Before Using Battery ......... 5 Chapter 2 Installation Guide .............. 7 2.1 Appearance ................7 2.2 Buttons ..................8 2.3 Micro SD、SIM card Installation ..........9 2.4 Battery Charging ..............
  • Page 4 Chapter 7 Device Specifications ............23...

  • Page 5: Chapter 1 Brief Instruction

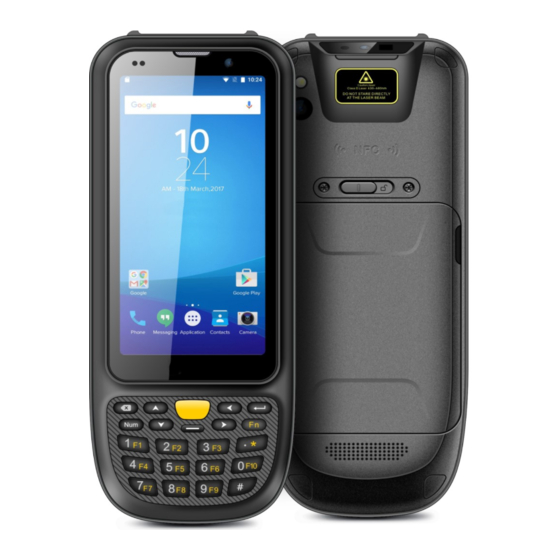

    Chapter 1 Brief Instruction Brief Instruction Chainway C60 is our newly-developed rugged handheld computer which exhibits extremely powerful performance, and that too while being immensely lightweight and portable. Built with Android 10 OS and Qualcomm high-performance processor, it features a removable large capacity battery and vigorous system configuration.

  • Page 6: Precaution Before Using Battery

    Precaution Before Using Battery  Do not leave batteries unused for extended periods of time, either in the product or in storage. When the battery has been unused for 6 months, check the charge status and charge or dispose of the battery as appropriate. ...
  • Page 7  The battery charge time increases significantly.  If a battery is stored or otherwise unused for an extended period, be sure to follow the storage instructions in this document. If you do not follow the instructions, and the battery has no charge remaining when you check it, consider it to be damaged.

  • Page 8: Chapter 2 Installation Guide

    Chapter 2 Installation Guide 2.1 Appearance The C60 device appearance is as follows.

  • Page 9: Buttons

    2.2 Buttons Button Function Power Button Press and hold to turn the device on or off. Custom Function Button Customize function by software SCAN Scan Button Cancel Button Switch white keyboard function Switch orange keyboard function Direction Buttons Move cursor and select different functions Enter Enter Button...

  • Page 10: Micro Sd、Sim Card Installation

    2.3 Micro SD、SIM card Installation User need to install TF card and SIM card according to the slots of card tray as below. Then insert into slot of SIM/TF. 2.4 Battery Charging Use the adapter to charge the battery. Don't use other brands of charger for device.

  • Page 11: Device Power On/Off

    2.5 Device Power on/off Press the ‘Power’ button on side about 3s due to power on/off. And press it shortly to wake up.

  • Page 12: Chapter 3 Call Function

    Chapter 3 Call Function 3.1 Phone Click this icon Click the number button to input the numbers. Click the button to confirm and dial. Click the to end the calling.

  • Page 13: Contacts

    3.2 Contacts Click ‘Contacts’ to open the contacts list. Click “Create new contact” to add the new contact.

  • Page 14: Messaging

    3.3 Messaging Click to open the message list. Click to input the content. Click to send the message. Click to add photos, videos.

  • Page 15: Chapter 4 Barcode Reader

    Chapter 4 Barcode Reader Open the Barcode2D Demo in APP Center and then press the ‘Scan’ button to start scanning. Note: Please scan the barcode correctly, otherwise the scanning might be failed.

  • Page 16: Chapter 5 Rfid Reader(Optional)

    Chapter 5 RFID Reader(optional) 5.1 NFC Open the “NFC” demo within Appcenter, and then reading and writing information of the tag.

  • Page 17: Chapter 6 Other Functions

    Chapter 6 Other Functions 6.1 PING Open the Ping in Appcenter. Set the Ping parameters and select the internal/external addresses.

  • Page 18: Bluetooth

    6.2 Bluetooth 1. Open the Bluetooth demo in Appcenter and turn on the Bluetooth. 2. Input the content or select the file, then scan the nearby Bluetooth printer and pair them. 3. Select the printer and click ‘Print’ to print the content.

  • Page 19: Gps

    6.3 GPS 1. Open the GPS demo in Appcenter and turn on GPS module. 2. Set the GPS parameters and get the GPS data information.

  • Page 20: Volume Settings

    6.4 Volume Settings 1. Open the Volume Setting demo in Appcenter. 2. Set the volumes based on the requirements.

  • Page 21: Sensor

    6.5 Sensor Open the Sensor demo in Appcenter. Test the sensor based on the requirements.

  • Page 22: Keyboard

    6.6 Keyboard 1. Open the Keyboard demo in Appcenter. 2. Set and test the key values of the device.

  • Page 23: Network

    6.7 Network 1. Open the Network demo in Appcenter. 2. Test the WIFI/Mobile signal based on the requirements.
  • Page 24 Chapter 7 Device Specifications Physical Parameters Dimensions 159.5 x 65.7 x 16.8 mm / 6.28 x 2.58 x 0.66 in. Weight 219g / 7.72 oz. (device with battery) Screen 4-inch (16:9), IPS LTPS 800*480 4-inch (18:9), IPS LTPS 1080*540 Keyboard 5 side keys : power, 2 scan keys, volume +/- Main keyboard: 22 keys (numeric keys, direction key, screen-lock key, Enter, Del, F1-F10, etc.)
  • Page 25 Storage Card TF card Type Maximum 128GB Expansion Storage Environmental Parameters Operating -20 ℃~+50 ℃ Temperature Storage -40 ℃~+70 ℃ Temperature Humidity 5%RH-95%RH (non-condensing) Dropping Survive Multiple 2.0 m / 6.56 ft. drops to the concrete across the operating temperature range Sealing IP65, IEC compliance Tumble...
  • Page 26 5, Chinese 2 of 5, Codabar, MSI, RSS, etc. PDF417, MicroPDF417, Symbologies Composite, RSS, TLC-39, Datamatrix, QR code, Micro QR code, Aztec, MaxiCode; Postal Codes: US PostNet, US Planet, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc. RFID Developing Environment Chainway SDK...
  • Page 27 Programming Java Language Developing Tool Eclipse/Android Studio...
  • Page 28 Warning FCC: The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device types C60(FCC ID: 2AC6AC60) has also been tested against this SAR limit. The exposure standard for wireless mobile hotspots employs a unit of measurement known as the Specific Absorption Rate, or SAR.
  • Page 29 Declaration of Conformity Hereby, Shenzhen Chainway Information Technology Co., Ltd. declares that the radio equipment type Mobile Data Terminal of C60 is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: www.chainway.net...
  • Page 30 WWAN Frequency Band Maximum output power (dBm) GSM 900 GSM 1800 30.5 WCDMA Ⅰ 23.5 WCDMA Ⅷ FDD LTE B1 23.5 FDD LTE B3/B7/28 FDD LTE B8 22.5 FDD LTE B20 TDD LTE B38 TDD LTE B40 22.5 WLAN Frequency Band EIRP Power(dBm) Bluetooth 12.35...
