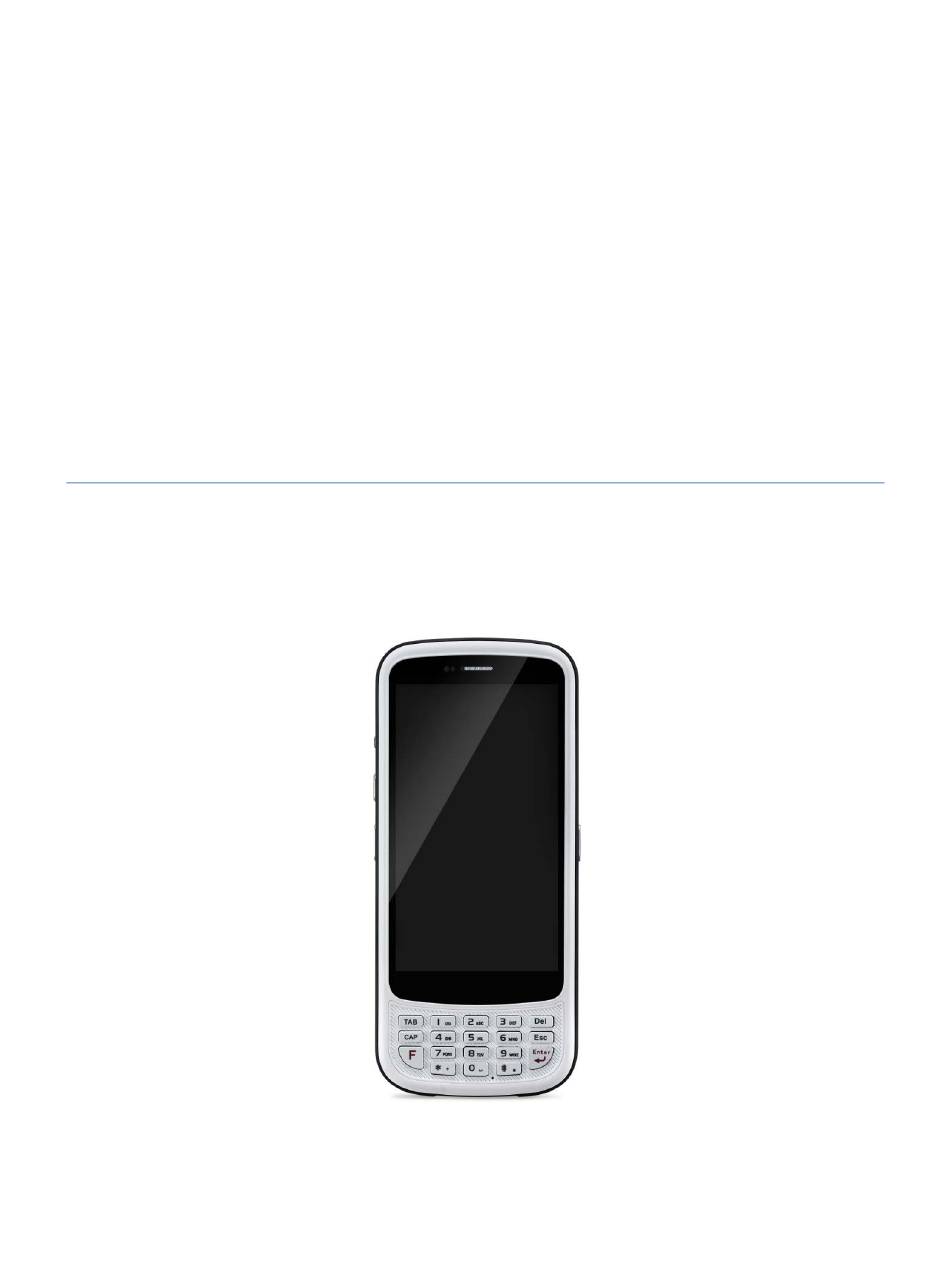

  • Page 1 SHENZHEN CHAINWAY INFORMATION TECHNOLOGY CO.,LTD Mobile Terminal with Printer C75 User Manual...

  • Page 2: Table Of Contents

    Content Content ................... 1 Statement ................... 3 Chapter 1 Product Intro ..............5 Intro ..................5 Precaution before using battery ..........6 Charger ................. 7 Notes ..................8 Chapter 2 Installation instructions ............9 2.1 Appearance................9 2.2 Install Micro SD and SIM cards ..........10 2.3 Battery charge.................
  • Page 3 7.3 GPS ..................20 7.4 Volume setup ................21 7.5 Sensor ..................22 7.6 Keyboard ................23 7.7 Network ................... 24 7.8 Keyboard emulator ..............25 Chapter 8 Device characteristic ............26 Restrictions: .................. 28...

  • Page 4: Statement

    (licensed program). Except as noted below, such license may not be assigned, sublicensed, or otherwise transferred by the user without prior written consent of Chainway. No right to copy a licensed program in whole or in part is granted, except as permitted under copyright law.

  • Page 6: Chapter 1 Product Intro

    Chapter 1 Product Intro 1.1 Intro C75 is a devoted handheld computer that offers mobile printing capabilities. The thermal printer supports various printer engines and prints labels and receipts. Built-in dual slots are for PSAM cards to encrypt data. Portable and durable, this device is the perfect multi- use tool for your advanced data capture and mobility needs in retail, healthcare, parking, etc.

  • Page 7: Precaution Before Using Battery

    1.2 Precaution before using battery  Do not leave battery unused for long time, no matter it is in device or inventory. If battery has been used for 6 months already, it should be check for charging function or it should be disposed correctly.

  • Page 8: Charger

    1.3 Charger The charger type is GME10D-050200FGu, output voltage/current is 5V DC/2A. The plug considered as disconnect device of adapter.

  • Page 9: Notes

    1.4 Notes Note: Using the incorrect type battery has danger of explosion. Please dispose the used battery according to instructions. Note: Due to the used enclosure material, the product shall only be connected to a USB Interface of version 2.0 or higher.

  • Page 10: Chapter 2 Installation Instructions

    Chapter 2 Installation instructions 2.1 Appearance...

  • Page 11: Install Micro Sd And Sim Cards

    2.2 Install Micro SD and SIM cards The cards sockets are showing as follows:...

  • Page 12: Battery Charge

    2.3 Battery charge By using USB Type-C contact, the original adaptor should be used for charging the device. Make sure not to use other adaptors to charge the device.

  • Page 13: Buttons And Function Area Display

    2.4 Buttons and function area display C75 has 4 side buttons and simple keyboard, NFC identification area 2D scanning module and HD camera. Power Button Power Button Setting Button SCAN Button Instructions： Buttons Description 1 Power Button Locates at left side of device, press power button to ON/OFF.

  • Page 14: Chapter 3 Call Function

    Chapter 3 Call function 3.1 Calling numbers 1. Click icon 2. Click number key to input phone numbers. 3. Click icon to call. 4. Click icon to end call. 3.2 Contacts 1. Click contacts to open contacts list. 2. Click icon to add new contacts.

  • Page 15: Chapter 4 Barcode Reader-Writer

    Chapter 4 Barcode reader-writer 1. In App Center, to open 2D barcode scan test. 2. Press “SCAN” button or click scan key to start scanning, the parameter “Auto interval” can be adjusted. Caution: Please scan codes in correct way otherwise the scanning will be failed.
  • Page 16 Max. radiant power: 0.6mW Wave length: 655nM IEC 60825-1 (Ed.2.0). 21CFR 1040.10 and 1040.11 standard.

  • Page 17: Chapter 5 Infrared Read-Write Function

    Chapter 5 Infrared read-write function 1. Open printer function in App Center. 2. Click “Print” to test printing function. 3. Save picture into internal storage or SD card directory and select “Picture” to print pictures. 4. Select “Barcode” and click to print barcode.

  • Page 18: Chapter 6 Rfid Reader

    Chapter 6 RFID reader 6.1 NFC Click App Center, open “NFC” to read and write tag information.

  • Page 19: Chapter 7 Other Functions

    Chapter 7 Other functions 7.1 PING tool 1. Open “PING” in App Center. 2. Setup PING parameter and select external/internal address.

  • Page 20: Bluetooth

    7.2 Bluetooth 1. Open “BT Printer” in App Center. 2. In the list of detected devices, click the device that you want to pair. 3. Select printer and click “Print” to start printing contents.

  • Page 21: Gps

    7.3 GPS 1. Click “GPS” in App Center to open GPS test. 2. Setup GPS parameters to access GPS information.

  • Page 22: Volume Setup

    7.4 Volume setup 1. Click “Volume” in App Center. 2. Setup volume by requirements.

  • Page 23: Sensor

    7.5 Sensor 1. Click “Sensor” in App Center. 2. Setup the sensor by requirements.

  • Page 24: Keyboard

    7.6 Keyboard 1. Click “Keyboard” in App Center. 2. Setup and test the main value of the device.

  • Page 25: Network

    7.7 Network 1. Click “Network” in App Center. 2. Test WIFI/Mobile signal by requirements.

  • Page 26: Keyboard Emulator

    7.8 Keyboard emulator The keyboard emulator can be used in multiple operating background and output formats directly. Please check Keyboard emulator manual for more details.

  • Page 27: Chapter 8 Device Characteristic

    Chapter 8 Device characteristic Physical characteristics Size 186.89*83.99*35.04-49.49mm Weight 507g/17.88oz Display 5.2'' IPS FHD 1920x1080P Touch panel Corning Gorilla Glass, multi-touch panel, gloves and wet hands supported Battery Li-ion, rechargeable, 8000mAh Expansion Slot 2 PSAM slots at most (ISO7816 protocol), 1 slot for SIM card, 1 slot for SIM or TF card Audio Speaker, 2 microphones...
  • Page 28 Depending on the country's ISP Thermal Printer Rate (mm/s) Image Size (pixel) 384 dots Paper Width (mm) Data collection Barcode 2D scanning engine(Honeywell N6603/Zebra scanning SE4710) RFID NFC 13.56Mhz Developing Environment Chainway software develop kit Language Java Develop Eclipse/Android Studio...

  • Page 29: Restrictions

    Restrictions: AT BE BG HR CY CZ DK EE FI FR DE GR HU IE LV LT LU MT NL PL PT RO SK SI ES SE UK This device is restricted to indoor use where operated in the European Community using frequency in 5150MHz-5350MHz to reduce the potential for interference.
  • Page 30 FCC statements: This device complies with part 15 of the FCC rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment.
  • Page 31 RF Exposure Information(SAR) The SAR limit of USA (FCC) is 1.6 W/kg averaged over one gram of tissue. Device Types C75 (FCC ID: 2AC6AC75) has also been tested against this SAR limit. The highest SAR value reported under this standard during product certification for use when properly worn on the body is0.655 W/kg and for...
