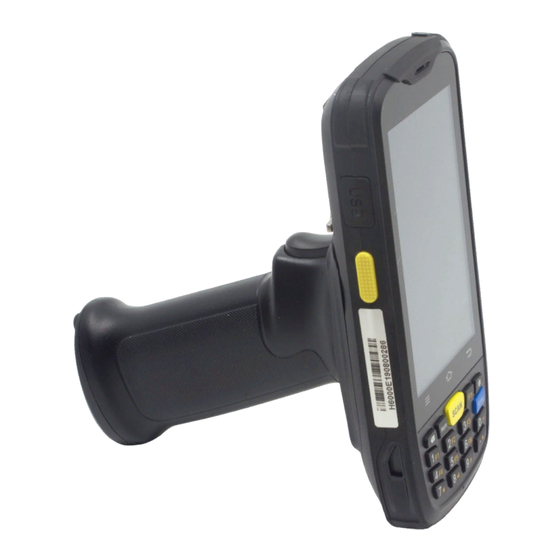

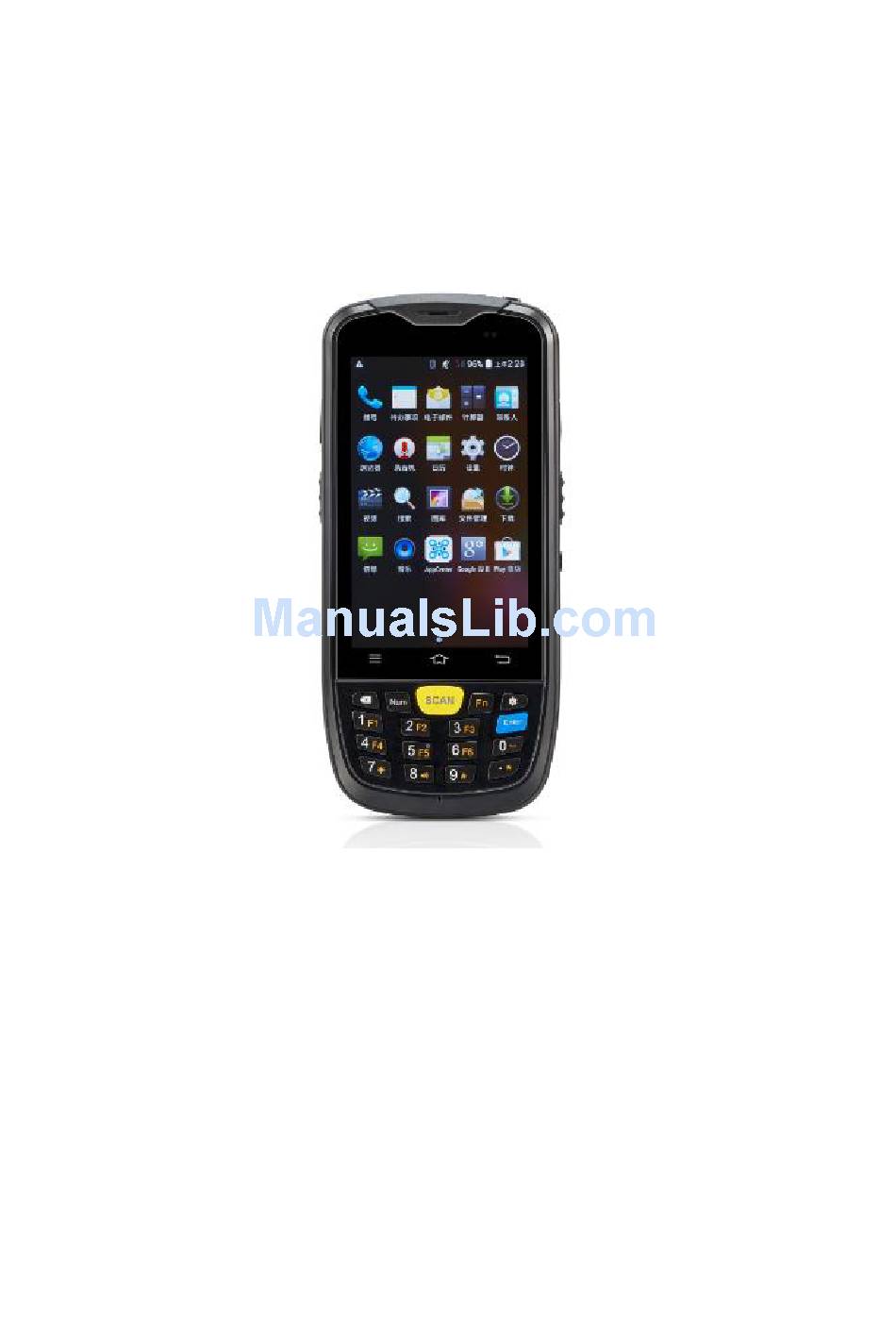

- Page 1 Handheld Mobile Computer C6000 User Manual...
-
Page 2: Table Of Contents
CONTENS Chapter 1 Brief Instruction ....................4 1.1 Brief Instruction ......................4 1.2 Precaution Before Using Battery ................4 Chapter 2 Installation Guide ..................5 2.1 Appearance .......................5 2.2 Buttons ........................6 2.3 Micro SD、SIM、PSAM Card Installation ..............6 2.4 Battery Charging ......................7 2.5 Device Turning on/off ....................7 ... - Page 3 6.4 Volume Settings ...................... 14 6. 5 Sensor ........................14 6.6 Keyboard ........................ 15 6.7 Network ........................15 6.8 KeyboardEmulator ....................16 Chapter 7 Device Specifications ................... 16...
-
Page 4: Chapter 1 Brief Instruction
Cortex-A7 1GHZ quad core processor technology, the operators need only one device to enjoy a convenient and easy job, C6000 will be the ideal choice for key-fact business in mobile solutions, for simplified task flow, enhanced work efficiency, for shortened time to customer response, more satisfied customer care service. -
Page 5: Chapter 2 Installation Guide
Remove the battery and store it separately from the product. Store the battery at temperatures between 5 °C and 20 °C (41 °F and 68 °F). Chapter 2 Installation Guide 2.1 Appearance The C6000 device has black and white appearance optional... -
Page 6: Buttons
2.2 Buttons Button Function Power Button Press and hold to turn the device on or off Custom Function Button Customize function by software SCAN Scan Button Cancel Button Switch white keyboard function Switch orange keyboard function Setting Button Right of the Fn Button Enter Enter Button 2.3 Micro SD、SIM、PSAM Card Installation... -
Page 7: Battery Charging
Micro SD PSAM 2.4 Battery Charging Use the adapter to charge the battery via the USB connector of the snap-on;. Don't use other brands of charger for device 2.5 Device Turning on/off Press the ‘Power’ button on the top about 3s due to turn on/off. And press it shortly to wake up. ... -
Page 8: Contacts
Click the button to confirm and dial; Click the to end the calling; Contacts Logs Voice Calling 3.2 Contacts Emulated Numeric Keypad Click ‘Contacts’ to open the contacts list; Click ‘ ’ to add the new contact; Click ‘ ’ to import/export or delete the contact list; Group Favorites Contact List... -
Page 9: Chapter 4 Barcode Reader
Click ‘ ’ to open the message list; Click ‘ ’ to input the content; Click ‘ ’ to send the message; Click ‘ ’ to add photos, videos; Chapter 4 Barcode Reader Open the Barcode Demo in APP Center and then press the ‘Scan’ button to start scanning;... -
Page 10: Chapter 5 Rfid Reader
Note: Please scan the barcode correctly, otherwise the scanning might be failed; 1D Barcode 2D Barcode Chapter 5 RFID Reader 5.1 High Frequency 5.1.1 14443A Open the 14443A demo within Appcenter, and press the ‘Scan’ button to start reading; Mifare and Ultra Light reading/writing are also supported;... -
Page 11: Nfc
5.1.3 15693 Open the “15693” demo within Appcenter, and then reading and writing information of the tag 5.2 NFC Open the “NFC” demo within Appcenter, and then reading and writing information of the... -
Page 12: Chapter 6 The Other Functions
Chapter 6 The Other Functions 6.1 PING Open the Ping in Appcenter; Set the Ping parameters and select the internal/external addresses; 6.2 Bluetooth Open the Bluetooth demo in Appcenter and turn on the Bluetooth; Input the content or select the file, then scan the nearby Bluetooth printer and pair them;... -
Page 13: Gps
6.3 GPS Open the GPS demo in Appcenter and turn on GPS module; Set the GPS parameters and get the GPS data information... -
Page 14: Volume Settings
6.4 Volume Settings Open the Volume Setting demo in Appcenter; Set the volumes based on the requirements;； 6. 5 Sensor Open the Sensor demo in Appcenter; Test the sensor based on the requirements;... -
Page 15: Keyboard
6.6 Keyboard Open the Keyboard demo in Handset Appcenter; Set and test the key values of the device； 6.7 Network Open the Network demo in Appcenter; Test the WIFI/Mobile signal based on the requirements;... -
Page 16: Keyboardemulator
6.8 KeyboardEmulator Keyboard Emulator can be used directly for multiple using environments and the output formats can including prefix/suffix/enter/tap can also be defined, please define the options properly based on the features of the device. Chapter 7 Device Specifications Physical Parameters Dimensions 157.6mm*73.7mm*29mm... - Page 17 SIM Slot 1 PSAM, 1 SIM, 1 MicroSD Audio 0.5W wat Camera OV 8M pixels, auto focus (optional) Performance Parameters Qualcomm 8909 1.3GHz quad core Android 5.1 Memory 1GB RAM, Build-in 8GB Flash Interface USB Micro-B, Storage Card Type MicroSD card Maximum Expansion 32GB Storage...
- Page 18 FDD-LTE: Band1/3. WLAN IEEE802.11 a/b/g/n, internal antenna WPAN Bluetooth v4.0 Data Collection 1D Barcode Scan Engine 1D barcode（Symbol SE955, laser, hardware decoding）: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, ect 2D barcode（Symbol SE4500，COMS, software decoding）：...
- Page 19 5 mil Code 39 2.1 in./53 mm. 7.5 in./191 mm. 100% UPC/ENA 1.6 in./41 mm. 15.5 in./394 mm. 6.7 mil PDF417 3.4 in./86 mm. 7.1 in./180 mm. RFID HF 13.56MHz, ISO14443A/ISO15693（optional） Developing Environment Chainway SDK Programming Language Java Developing Tool Eclipse/Android Studio...
