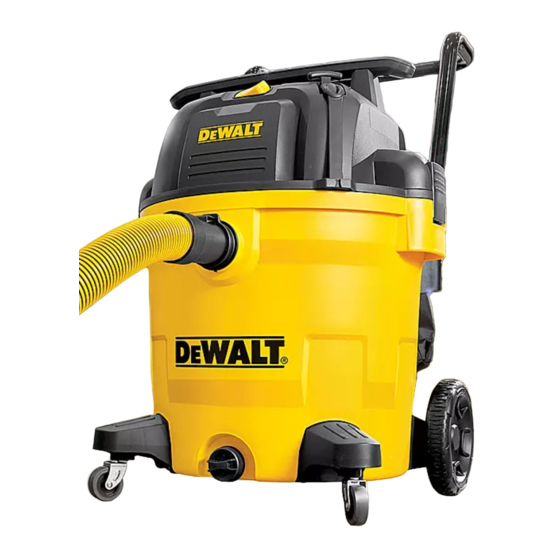

U-Line H-8903 Manual

Wet/dry vacuum
Hide thumbs
1
2
3
4
5
6
7

Advertisement

Table of Contents

H-8903
DEWALT
16 GALLON
®
WET/DRY VACUUM
Vacuum x 1
MODEL
Power
Motor
Tank Capacity
Hose
Power Cord
WARNING: Use only extension cords that are
rated for outdoor use. Extension cords in poor
condition or that are too small in wire size
can pose fire and shock hazards. To reduce
risk of these hazards when using an extension
cord, ensure it is in good condition and that
connection does not come into contact with
liquid.
PAGE 1 OF 7
1-800-295-5510
uline.com
Extension Wand x 2
2-1/2" x 7'
Air Hose x 1
Accessory Bag with
Disposable Filter
Holder x 1
Bag x 3
Wheel Assembly x 1
PRODUCT SPECIFICATIONS
H-8903 (DXV16PA)
120 V / 60 Hz / 12 A
Single Stage
16 Gallon
2⁄" x 7'
20'
PARTS
Floor Nozzle x 1
Cartridge
Filter x 1
Muffler x 1
NOTE: To keep power loss to a minimum, use
the following table to choose the minimum
wire size extension cord
EXTENSION CORD LENGTH
0 - 50'
50 - 100'
Crevice
Round
Nozzle x 1
Brush x 1
Caster x 2
Self-tapping Screw
ST3.9 x 16 F x 8
Hose Adaptor x 1
GAUGE (A.W.G.)
14
12
Utility
Nozzle x 1
Bracket x 2
0321 IH-8903

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the H-8903 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for U-Line H-8903

Summary of Contents for U-Line H-8903

  • Page 1 Muffler x 1 Hose Adaptor x 1 PRODUCT SPECIFICATIONS NOTE: To keep power loss to a minimum, use MODEL H-8903 (DXV16PA) the following table to choose the minimum Power 120 V / 60 Hz / 12 A wire size extension cord...

  • Page 2: Definitions: Safety Guidelines

    DEFINITIONS: SAFETY GUIDELINES Definitions below describe the level of severity for each CAUTION: Indicates a potentially hazardous signal word. situation that, if not avoided, may result in minor or moderate injury. DANGER: Indicates an imminently hazardous situation that, if not avoided, will result in death NOTICE: Indicates a practice not related to or serious injury.
  • Page 3 SAFETY CONTINUED • An extension cord must have adequate wire size WARNING: Servicing of double insulated wet/ (AWG or American Wire Gauge) for safety. The dry vacuum in a double-insulated wet/dry smaller the gauge number of the wire, the greater vacuum, two systems of insulation are provided the capacity of the cable.

  • Page 4: Operation

    OPERATION Pull lid latches in an outward motion, remove power 4. Place accessory bag holder into hole of bracket. head and some accessories that may have been (See Figure 3) shipped in the tank. 2. Attach heavy-duty rubberized casters. 3. Before replacing power head, refer to these instructions to ensure the proper filters are installed for the cleaning operation.
  • Page 5 OPERATION CONTINUED DRY PICK-UP WET PICK-UP Filter must always be in correct position to reduce Cartridge filter must be positioned over filter cage while risk of leaks and possible damage to vacuum. vacuuming liquids. When picking up several tanks full Ensure filter is completely covering the filter cage.

  • Page 6: Blowing Operation

    OPERATION CONTINUED EMPTY THE TANK BLOWING OPERATION WARNING: To reduce the risk of injury from WARNING: Always wear safety goggles accidental starting, unplug power cord before complying with ANSI Z87.1 (or in Canada emptying the dust tank. CSA Z94.3) when using as a blower. Remove power head assembly of the wet/dry WARNING: To avoid injury to bystanders, keep vacuum by pulling outward on lid clips located...

  • Page 7: Maintenance

    MAINTENANCE INSTALLING THE CARTRIDGE FILTER IMPORTANT: After cleaning, check the filter for tears or small holes. Do not use a damaged The cartridge filter can be used for wet or dry pick-up. filter. A small hole can cause dust to come out Installation is same for both.
