PCB Piezotronics IMI SENSORS EX686B01 Installation And Operating Manual page 43

PCB Piezotronics Inc. claims proprietary rights in
the information disclosed hereon. Neither it nor any
reproduction thereof will be disclosed to others
without the written consent of PCB Piezotronics Inc.
B
2.6 [66]
A
UNLESS OTHERWISE SPECIFIED TOLERANCES ARE:
DIMENSIONS IN INCHES
DECIMALS XX ±.03
XXX ±.010

ANGLES 2 DEGREES
FILLETS AND RADII
.003 - .005
2
1.25 [31.8] HEX
PINS ARE BI-POLAR
1.87 [47.5]
.80 [20.3]
.20 [5.1]
DIMENSIONS IN MILLIMETERS
KRM
[ IN BRACKETS ]
TITLE
DECIMALS X ± 0.8
XX ± 0.25

ANGLES 2 DEGREES
FILLETS AND RADII
0.07 - 0.13
2
REV
B
DRAWN CHECKED
7/11/17 JDM 7/11/17

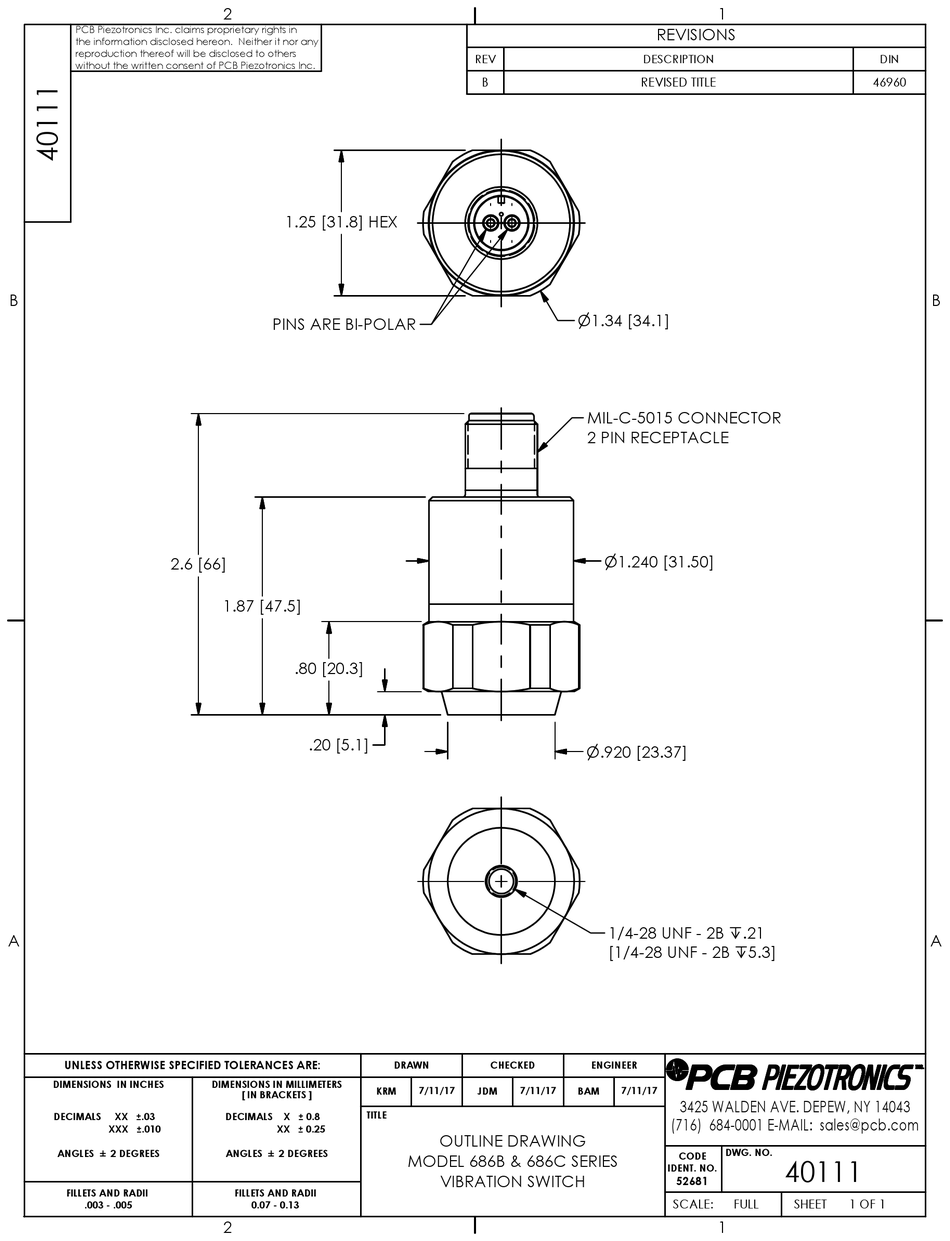

OUTLINE DRAWING
MODEL 686B & 686C SERIES
VIBRATION SWITCH
1
REVISIONS
DESCRIPTION
REVISED TITLE

1.34 [34.1]
MIL-C-5015 CONNECTOR
2 PIN RECEPTACLE

1.240 [31.50]

.920 [23.37]

1/4-28 UNF - 2B .21

[1/4-28 UNF - 2B 5.3]
ENGINEER
BAM 7/11/17
3425 WALDEN AVE. DEPEW, NY 14043
(716) 684-0001 E-MAIL: sales@pcb.com
DWG. NO.
CODE
IDENT. NO.
52681
SCALE: FULL
1
DIN
46960
B
A
40111
SHEET 1 OF 1
