Battery-Powered Signal Conditioner
Power supply/signal conditioner (Model 480C02) is for use with the Smart Switch when determining the alarm
threshold level using the MAVT™ feature. The built-in meter indicates when the process is complete. See
www.pcb.com for product details.

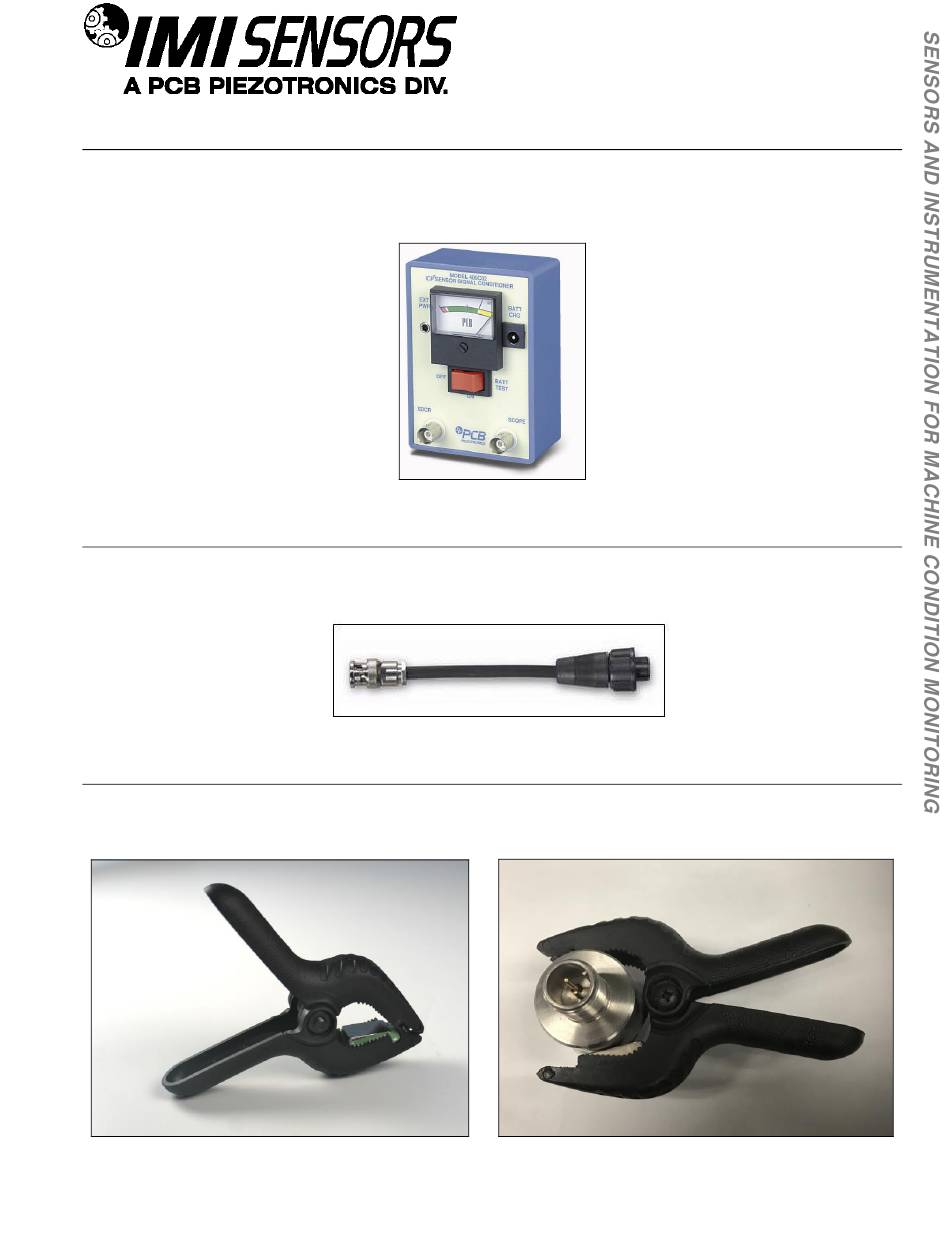

Figure 40 – Battery Powered Signal Conditioner
Calibration Cable
The calibration cable (Model 052BR010AC) is a 10 foot, twisted-pair, shielded cable with a 2-Pin MIL type
connector terminating to a BNC plug for use with 480C02 power supply and Smart Switch.
Figure 41 – Calibration Cable
Magnet Clip
The magnet clip (Model 080A214) is supplied as part of the optional 600A29 USB Programmer Kit or can be
ordered separately for use with the MAVT™.
