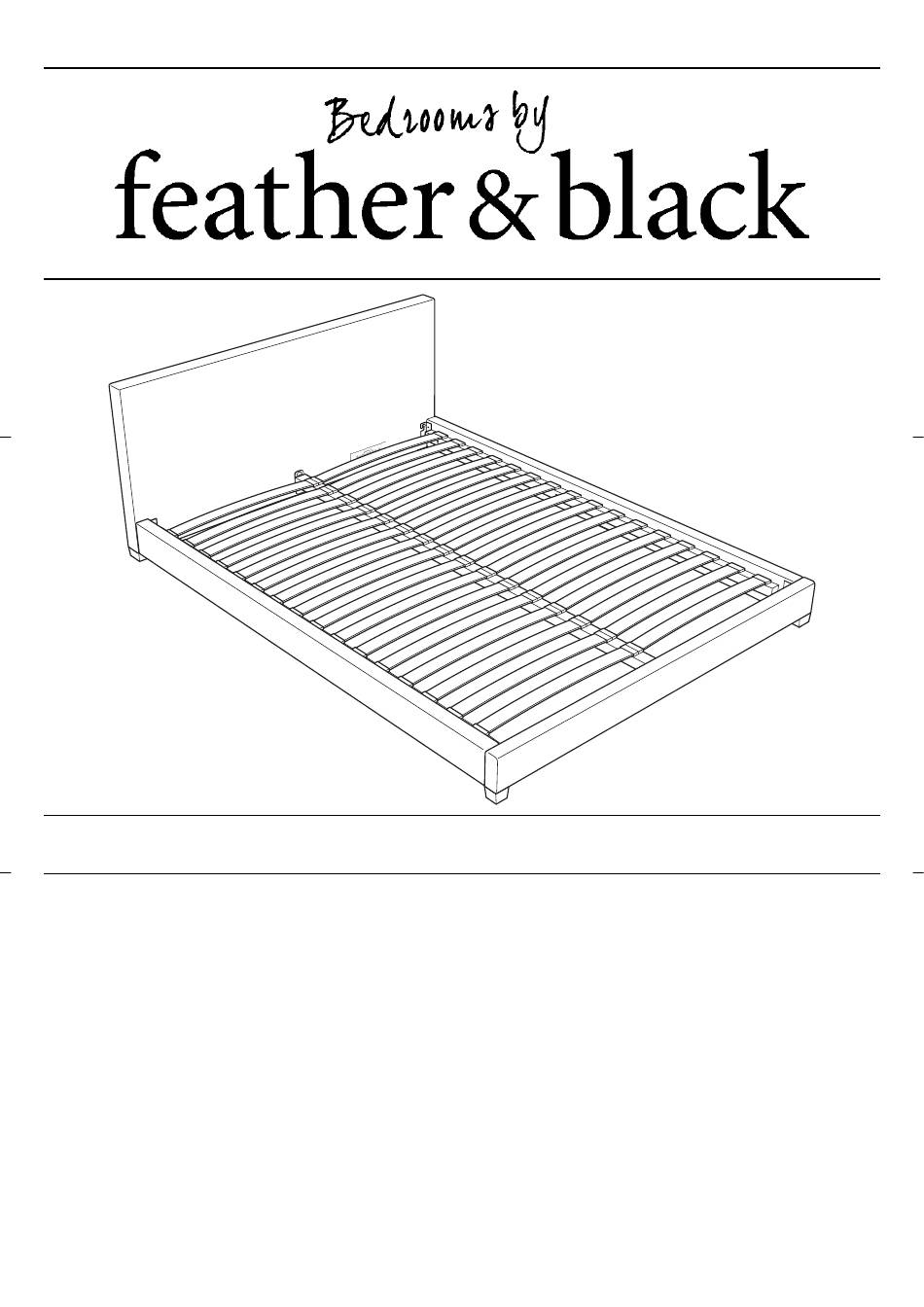

feather&black Bedrooms Assembly And Instructions

Table of Contents

Download this manual

Assembly tool and instructions

Note: Throughout the assembly instructions the

headboard and feet shown may vary depending

up on the customer choice.

Step By Step Assembly Instructions

PLEASE READ these instructions fully prior to assembly to familiarise yourself with the various

stages of construction.

Carefully open all packs supplied and check the contents against the parts and fittings check list.

Do not destroy any of the packaging until you are certain that you have all the necessary parts for

the assembly.

This product is HEAVY, it should be assembled as near as possible to the point of use.

Take care when lifting to avoid personal injury and (or) damage to the product.

This product takes approximately 30 minutes to assemble by a minimum of two people.

Please ensure that the packaging is disposed of in a safe environmentally friendly way.

There are small components used in the construction of this bed as well as plastic foil packaging,

these should be kept away from young children whilst assembling your bed.

819/03/13

Table of Contents

Do you have a question about the Bedrooms and is the answer not in the manual?

Page 1 Assembly tool and instructions Note: Throughout the assembly instructions the headboard and feet shown may vary depending up on the customer choice. Step By Step Assembly Instructions Pre-assembly Preparation PLEASE READ these instructions fully prior to assembly to familiarise yourself with the various stages of construction.
Page 2 Part identification Fittings list Headboard Double bed + Plastic slat clips Single bed Footboard Spare plastic slat clip Side panel Centre rail 13mm ring spanner Legs Double bed + Slats Single bed Corner brackets Centre rail brackets...
Page 3 Attach the legs to the headboard and footboard. step Note: On legs where an additional locating screw is supplied, please fit to hold legs square to the corners. Unscrew the bolts on the headboard and footboard by approximately 10mm (3/8”). While holding the headboard upright, hook the side panels onto the bolts.
Page 4 Fit the centre rail hook into position on the headboard, then footboard and then push down to secure. step Adjust and tighten wing nut on the underside of the centre rail brackets. Starting at the headboard end, fit the slats (centre of the slat to curve upwards), into the first plastic clip on either side, fit centre plastic clips to the slat ends, push down step into the holes on the centre rail.
