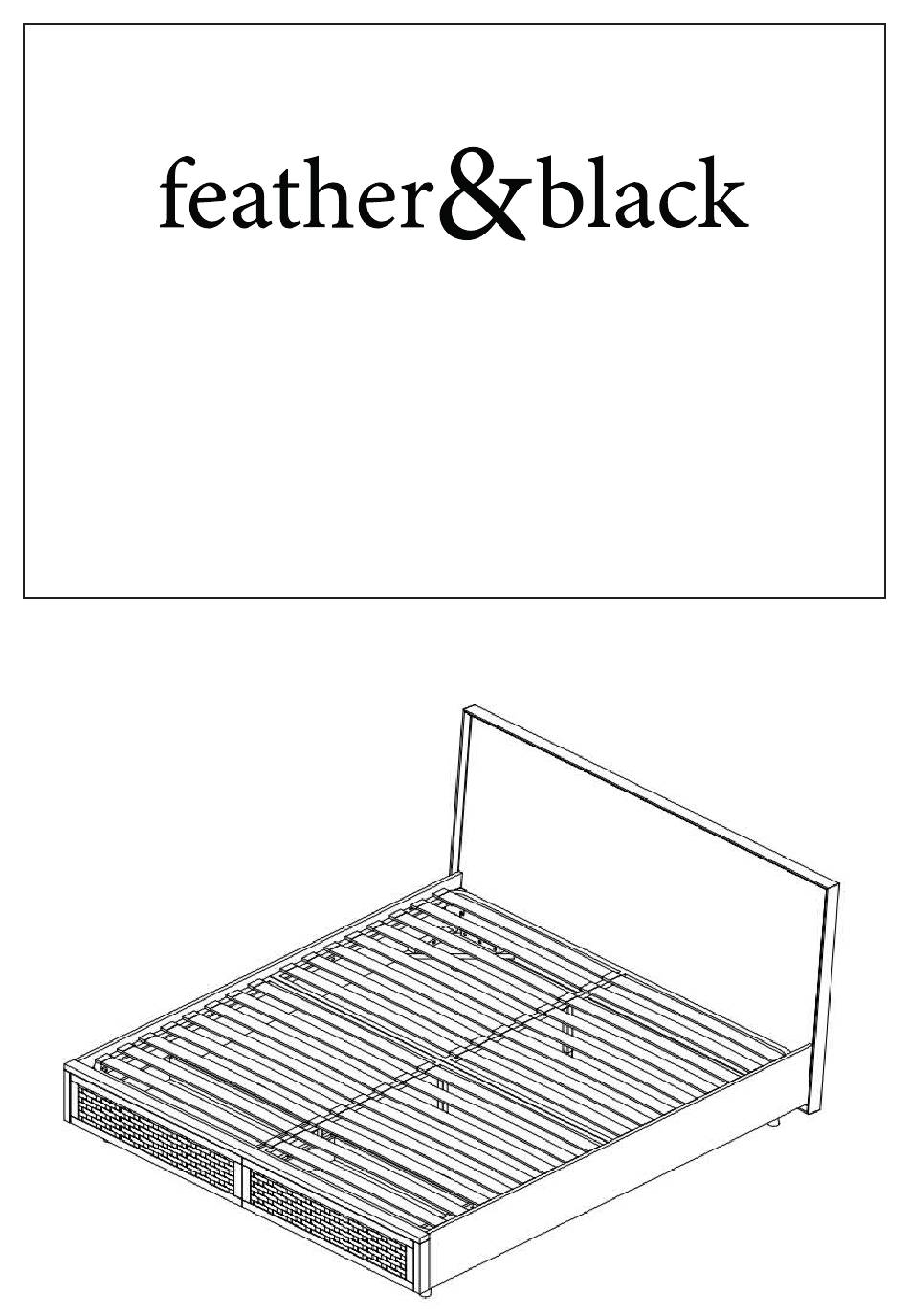

- Page 1 Jensen Bed Assembly Guide...
- Page 2 Welcome to the Feather & Black community. Since 2004, we’ve been passionately helping our customers create beautiful bedrooms with an exceptional level of quality and expertise. We know your home is a truly special place, so it’s a responsibility we don’t take lightly.
- Page 3 Jensen Bed - Assembly Instructions D:1465mm x 2110mm x 1250mm K:1615mm x 2190mm x 1250mm SK:1925mm x 2190mm x 1250mm If you require any advice during assembly, please call our customer service team on 01243 380600 Please retain these assembly instructions for future use Produced in Vietnam for Feather &...
-
Page 4: Before You Start
Jensen Bed Before you start Thank you for purchasing this Jensen Bed. Number of people required to assemble Two people to assemble the product and two people to lift in to position. Please read these instructions fully prior to assembly to familiarise yourself with the various stages of construction. - Page 5 Jensen Bed Components supplied (not actual size) B: Footboard / Drawer D: Right Side Rail E: Drawer A: Headboard C: Left Side Rail Section Quantity: 1 pc Quantity: 1 pc Quantity: 1 pc Quantity: 1 pc Section Support Leg Box: 2...
- Page 6 Jensen Bed 1. Lay the Headboard (A) on its back and attach Wooden legs (F) to each side and tighten with Allen Key (O). 2. Attach Drawer Section Support Legs (E) and Wooden Legs (F) to Footboard / Drawer Section (B) and tighten all Bolts with Allen Key (O).
- Page 7 Jensen Bed 3. Loosen the pre-installed bolts on the Headboard (A) by 10mm and then hook the metal plates of the Side Rails (C and D) over the bolts, ensuring the Washer and Spring Washer are positioned as shown in the diagram. Tighten all bolts with Allen Key (O).
- Page 8 Jensen Bed 5. Sprung Slat System Produced in Vietnam for Feather & Black www.featherandblack.com...
- Page 9 Jensen Bed 6. Open the sprung slat frame and lay face down on the floor. Secure Support Legs (P) and (Q) to frame using Bolts (R) and Washers (S). Tighten securely with Allen Key (O). Produced in Vietnam for Feather & Black...
- Page 10 Jensen Bed 7. Turn the metal slat frame upward and carefully lower it into the bed. Ensure the frame rests on the side rails and align the holes in the slat frame with those in the side rails. Secure the slat frame to the side rails by threading Bolts (L) and Washers (J) through the corresponding holes into the Nuts (M).
