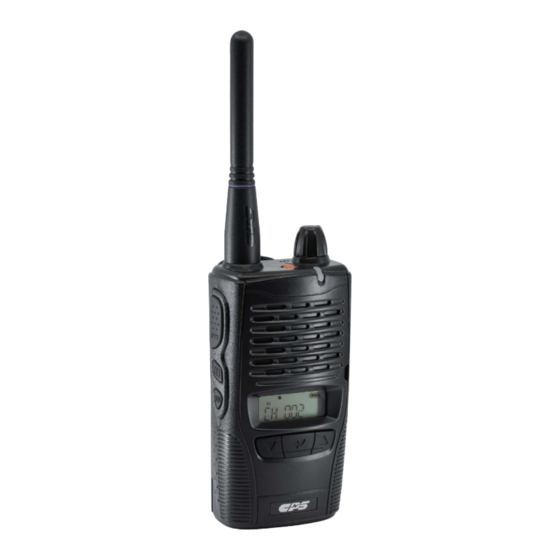

- Page 1 CL230 手持式对讲机 使用说明书 中国无线电管理局型号核准证 CMIIT ID:2010FJ6779...
-
Page 3: Table Of Contents
ㆍ计算机编程 ………………………………………………………………………………………… 9 ㆍ手机自行编程 ……………………………………………………………………………………… 9 ㆍ克隆功能 …………………………………………………………………………………………… 9 4. 电池组安装及拆除………………………………………………………………………………… 10 ㆍ安装电池组 ………………………………………………………………………………………… 10 ㆍ拆除电池组 ………………………………………………………………………………………… 10 ㆍ电池组充电 ………………………………………………………………………………………… 10 ㆍ充电座灯号指示 …………………………………………………………………………………… 10 5. CTCSS/DCS ………………………………………………………………………………………… 11 6. 技术参数…………………………………………………………………………………………… 12 7. 用户安全须知……………………………………………………………………………………… 12 English Version 英文版本………………………………………………………………………… 14-22 CL230 使用说明书 page 3... - Page 4 1.概述 1.1 概述 CL230系列专业手持对讲机，设计优良，线条美观时尚，铝合金机架，坚固耐用，性能良好，配 合大容量锂离子电池，提供长时间通话功能。 1.2 功能 • 频率范围（CL230U/400-470MHz) • 128个工作频道 • 内置53单音CTCSS及208个DCS数字私线组合 • 双音多频功能(可发射DTMF身份编码) • 高和低发射输出功率可设置 • 7.4V 2000mAh 锂离子电池，环保锂离子电池可提供长时间通话电量 • VOX声控发射功能，可无需按动PTT而以讲话声音进行声控发射 • 12.5KHz/25KHZ 可编程频道间隔 • 扫描及优先扫描，多种扫描功能包括优先扫描功能 • 监听功能，能在微弱的接收讯号或带有防干扰静音码的场合中进行监听功能 • 繁忙频道锁定，每收到信号时，禁止发射 • TOT 发射时限，限制连续发射时间，可设置发射定时 • 个人计算机编程及设定， “克隆”复制功能，个人计算机进行编程及可经由外接编程线或复制线 （CLONING）随时作现场编码、复制 • 紧急呼叫按键，当持续按下紧急呼叫按键，该机将发射DTMF身份编码和警报声但本机并无声响...
-
Page 5: 控制键及显示说明
2. 控制键及显示说明 ㆍ电源/音量按钮 ㆍ天线接口 ㆍLED指示灯 - 红灯 - 发射 - 绿灯 - 接收 - 闪动伴随“哔”声 - 低电量 ㆍ扬声器 ㆍ麦克风 ㆍ液晶显示器屏幕显示 ㆍ▲ 上键 ㆍ 确认键 ㆍ▼ 下键 CL230 使用说明书 page 5... - Page 6 2. 控制键及显示说明 ㆍPTT键 ㆍ功能/菜单键 ㆍ监听键 ㆍ皮带夹 ㆍ外置扬声器/ 麦克风插孔 ㆍ电池组 CL230 使用说明书 page 6...
-
Page 7: 显示屏
2. 控制键及显示说明 显示屏 接收信号强度指示 “L” “H” ：发射功率高低指示 提示音指示 键盘锁指示 扫描指示， “P-”优先信道扫描指示 静噪指示 电池电量指示 VOX指示声控发射功能开启 指示DTCSS数字亚音功能开启 指示CTCSS模拟亚音功能开启 SAVE 省电指示 中转功能指示 CL230 使用说明书 page 7... -
Page 8: 一般操作
3.6 扫描 在一般模式，在2秒内先按住 再按下“ ”可选择扫描功能，该机将自动寻找正在通话之频道。当 扫描并停留到通话频道时，按下▲或▼可暂时取消聆听该频道而转入下一个频道。按一下 退出扫描 功能。扫描模式可由PC编程。 3.7 优先频道扫描 如有编选优先频道P-CH（由计算机编程） ，显示屏将显示“P”及“SCAN” 。扫描次序将为 — — — — — — 当收到通话频道时，按一下▲或▼键可暂时取消聆听该频道而转入下一个频道，按一下 退出扫描功 能。 3.8 监听功能 按下 可取消静噪以便监听微弱讯号，该键的工作模式可由PC编程。 3.9 紧急呼叫功能 持续按下紧急呼叫键约3秒，开启紧急呼叫功能，紧急呼叫向其它对讲机发出身份编号(DTMF)和警报声但 本机并无声响和发射指示，仅LCD显示“EMERGEN”而LCD背光灯不亮。此时的发射信道为当前信道或在SCAN 状态时由软件设定的回复信道。 3.10 LCD 背光灯持续打开或关闭 短按 可选择LCD背光灯打开或关闭。 CL230 使用说明书 page 8... -
Page 9: ㆍ键盘锁
VOX_TH（声控发射灵敏度）: 可选 1-9， （出厂值：4） VOX_EN（声控发射(开/关)）: 可选 VOX_ON 或 VOX OFF（出厂值） SAVE(省电功能(开/关)): 可选 SAVE_ON（出厂值） 或 SAVEOFF SCAN(扫描功能(开/关)): 可选 SCAN_ON 或 SCANOFF（出厂值） DTMF(DTMF(开/关)) : 可选 DTMF_ON 或 DTMFOFF（出厂值） 3.14 克隆功能 目的为将一部机（主机）之频率等内容复制到另一部机里（子机） 。 1）主机与子机以复制线连接 2）主机按住PTT并开机直至LCD显示“CLONE” 3）子机按住 后开机直至LCD显示“PROGRAM” 4）主机按下“ ”确认进行主动复制，完成后，主机显示CLON OK 5）除下子机复制连线，复制另一部子机或完成复制 CL230 使用说明书 page 9... -
Page 10: 电池组安装及拆除
4.电池组安装及拆除 4.1安装电池组 1)把电池组下边缘对齐到对讲机铝壳卡位。 2)向上推电池至发出咔哒声。 4.2拆除电池组 关机，按下电池锁按钮，退下电池组。 注意: 卡扣紧为正常现象。 4.3电池组充电 • 将DC插头插入充电座 • 将电源适配器接入110/220V AC电源 • 关上对讲机 • 将对讲机放入充电座进行充电 • 充电完成后提取对讲机 4.4充电器灯号指示 红灯 正在充电中 绿灯 充电完成 红灯闪动 充电短路/电池有问题/过时 绿灯闪动 高温 红灯及绿灯闪动 接触不良 CL230 使用说明书 page 10... -
Page 11: Ctcss/Dcs
210.7 229.1 88.5 136.5 218.1 254.1 91.5 141.3 225.7 165.5 94.8 146.2 233.6 171.3 97.4 151.4 241.8 177.3 100.0 156.7 250.3 60.7 103.5 162.2 69.3 62.5 64.7 DCS表 DCS Code DCS Code DCS Code DCS Code CL230 使用说明书 page 11... -
Page 12: 技术参数
+3,-3dB from 6 dB per Octave de-emphasis characteristic 音频响应 from 300-3000Hz 接收 灵敏度(12dB SINAD) 0.2uV(-120dBm) 门限静噪灵敏度 0.158uV(-123dBm) 选择性 62dB 互调抗拒 62dB 音频输出功率 0.5W，8Ω阻抗 注：以上数据如有变化，恕不另行通知。以实物为准。 7.用户安全须知 1.未经允许请勿拆开对讲机，非专业人员对本机的处理可能会造成对讲机故障。 2.为避免电磁干扰或电磁兼容引起的问题， 请在禁止使用对讲机的场合关闭对讲机。 例如医院和其他保健 场所。 3.汽车加油或停车于加油站期间，请关闭对讲机。 4.在带有安全气囊的汽车内，请勿将对讲机放在气囊展开可能覆盖的区域范围内。 5.在进入易燃、易爆的环境前请关闭对讲机。 6.在易燃、易爆的环境中请勿更换对讲机电池或进行电池充电。 7.在靠近爆破区域和雷管所在区域前，请关闭对讲机。 8.请勿把对讲机长时间暴露在直射日光下，勿将对讲机放在加热器附近。 9.请勿把对讲机放在多尘、潮湿、水溅或者表面不平稳的地方。 10.请勿使用天线已损坏的对讲机，损坏的天线如果接触皮肤可能导致皮肤轻微灼伤。 11.对讲机发射时，请保持对讲机机身处于垂直状态，话筒距离嘴部约5厘米，发射时对讲机天线至少距离 头部或身体2.5厘米， 12.如未安装天线请勿发射。 CL230 使用说明书 page 12... - Page 13 ㆍLCD Back Light„„„„„„„„„„„„„„„„„„„„„„„„„„„„ ㆍKeypad Lock„„„„„„„„„„„„„„„„„„„„„„„„„„„„ ㆍSoftware Programming„„„„„„„„„„„„„„„„„„„„„„„„„ ㆍProgramming at Menu Mode„„„„„„„„„„„„„„„„„„„„„„ ㆍCloning„„„„„„„„„„„„„„„„„„„„„„„„„„„„„„ Battery Pack„„„„„„„„„„„„„„„„„„„„„„„„„„„„ ㆍBattery Installation„„„„„„„„„„„„„„„„„„„„„„„„„„„„ ㆍBattery Removal„„„„„„„„„„„„„„„„„„„„„„„„„„„„ ㆍRapid Charger„„„„„„„„„„„„„„„„„„„„„„„„„„„„ ㆍCharging Status Indicators„„„„„„„„„„„„„„„„„„„„„„„„ CTCSS/DCS Table„„„„„„„„„„„„„„„„„„„„„„„„„„„„ Technical Specifications„„„„„„„„„„„„„„„„„„„„„„„„„„„ User Safety Precautions„„„„„„„„„„„„„„„„„„„„„„„„„„„ Chinese Version 中文版本„„„„„„„„„„„„„„„„„„„„„„„„„„ 4 - 12 CL230 User Manual Page 13...
-
Page 14: English Version 英文版本
Introduction The CL230 Business combines quality and versatility into a compact, light and portable professional two-way radio with state-of-the-art design and easy-to-use features. Key Features Frequency Range (400 - 470MHz) 128 Channels Built-in 53 CTCSS Tones / 208 DCS Codes Dual Tone Modulation Frequency (DTMF) Signaling Adjustable Transmission Power –... -
Page 15: Controls And Indicators
- Red - Transmitting - Green - Receiving - Blinks – Together with beep sound and background light blinking indicates battery level low ㆍSpeaker ㆍMicrophone ㆍLCD Display ㆍ▲ Up Button ㆍ Confirm Button ㆍ▼ Down Button CL230 User Manual Page 15... - Page 16 2. CONTROLS AND INDICATORS ㆍPush-To-Talk (PTT) Button ㆍMenu / Function Key ㆍMonitor Key ㆍBelt Clip ㆍExternal PTT / Ear Microphone Jack ㆍBattery CL230 User Manual Page 16...
-
Page 17: ㆍLcd Display
“L” Low Power; “H” High Power Indicator Alert Key Lock Priority SCAN & Normal SCAN Scramble Battery Level Indicator VOX (Voice Activated Transmission) Function ON DTCSS Function ON CTCSS Function ON Battery Save Indicator Repeater CL230 User Manual Page 17... -
Page 18: Operation
Press and hold the Emergency button for about 3 seconds to activate or deactivate the Emergency mode. During which a distress signals with user ID will be transmitted to other users of the same frequency channel. The subject radio will display “EMERGEN” with no siren or LED light. CL230 User Manual Page 18... -
Page 19: ㆍLcd Back Light
Press and hold while turning on the Receiving Radio until the LCD displays “PROGRAM” Press of the Source Radio for cloning, The Source Radio will display “CLON OK” upon completion. Disconnect the Cloning Cable CL230 User Manual Page 19... -
Page 20: Battery Pack
When the radio with battery is fully inserted, a glowing red light indicates that the battery is charging. Charging Status Indicators Charging Green Charging completed Red blinking Short circuit / Battery problem / Over charged Green blinking Over heating Red & Green blinking Loose contact CL230 User Manual Page 20... -
Page 21: Ctcss/Dcs Table
229.1 88.5 136.5 218.1 254.1 91.5 141.3 225.7 165.5 94.8 146.2 233.6 171.3 97.4 151.4 241.8 177.3 156.7 250.3 60.7 103.5 162.2 69.3 62.5 64.7 DCS Table DCS Code DCS Code DCS Code DCS Code CL230 User Manual Page 21... -
Page 22: Technical Specifications
11. When transmitting, hold the radio upright, speaking at about 5cm from the microphone and keep about at least 2.5cm from the head or body. 12. Do not use the radio without antenna. CL230 User Manual Page 22... - Page 24 Unit 807, Tower A, Manulife Financial Centre, 223 Wai Yip Street, Kwun Tong, Kowloon, Hong Kong Tel: (852) 2185 7888 Fax: (852) 2187 3111...
