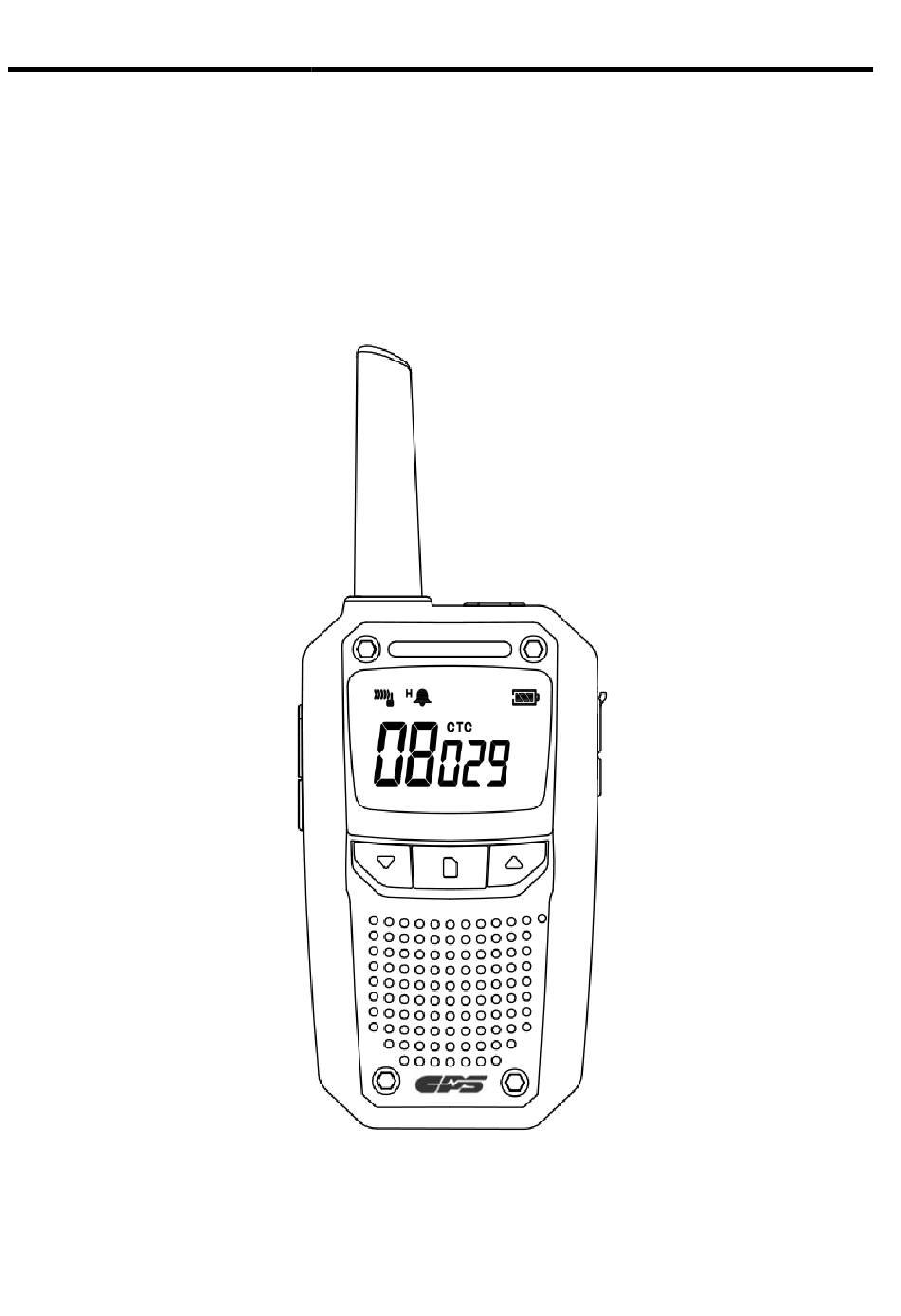

- Page 1 CP229 SMARTB BUSINESS WALKIE TALKIE WALKIE TALKIE USER MANUA USER MANUAL...
-
Page 2: General Information
1. GENERAL INFORMATION 1.1【Introduction】 The CP229 ARC PRO Business Walkie Talkie combines quality and versatility with a robust design that ensures effective communications even in the harshest environments. 1.2【Key Features】 53CTCSS and 104 DCS Volume setting (1–16) S.Q. Level control with 5 steps ... -
Page 4: Controls And Indicators
2. CONTROLS AND INDICATORS Power Switch LCD Display Up Key Down Key Menu Key Loud Speaker Microphone 菜單鍵 External Speaker PTT Key /Mic.Cap Function key Belt Clip... - Page 5 2. CONTROLS AND INDICATORS RF Power ( H/L ) Beep Sound Battery condition Monitor Scan lock RSSI CTCSS DCS BCLO Channel number Dual Watch CTCSS/DCS number Power Saving...
-
Page 6: Menu Setting
3. CHARGING THE BATTERY 3.1【Charging】 1) Plug the AC adaptor into a standard electrical outlet Insert the Walkie Talkie into the charging tray for charging. 2) It will take 3– 4 hours for full charging 4. MENU SETTING 4.1【Menu Setting】 Press and hold the〔... -
Page 7: Operation
5. CHANNEL SETTING BRIEF NOTE 〕key on the top of the unit. Press and hold the〔 〕key until the letter CH is blinking, press〔 〕key to select Press and hold the〔 the number of Channel. 〕key and the screen will display CTC off , press〔 〕key to select your ... - Page 8 6. OPERATION 6.8 【Channel Selection】 〕key until “** CH” is blinking, to select the channel number by pressing Press and hold the〔 〔 〕key and confirm It by pressing〔 〕key . To select channel quickly, press and hold the 〔 〕key.
- Page 9 1. 概述 1.1【概述】 CP229 ARC PRO 商用對講機結合了高品質和多功能性以及堅固耐用的設計，即使在最惡劣的 環境下也能確保有效的通信。 1.2【功能描述】 內置 53 個單音 CTCSS 及 104 個 DCS 數字私線組合(CTCSS 及 DCS) 音量調較(16 級) 5 級選擇靜噪水平 聲控發射功能，可無需按動 PTT 而以講話聲音進行聲控發射(VOX) 雙頻守候功能(DW) 鍵盤鎖功能 省電功能 0.5W 音頻功率輸出...
- Page 10 2. 控制鍵及顯示說明 電源開關鍵 LCD 顯示屏 上鍵 下鍵 選單鍵 揚聲器 麥克風 外置揚聲器 PTT 鍵 麥克風介面 功能鍵 機 夾...
- Page 11 2. 控制鍵及顯示說明 功 率 信 號 高 頻 強 電 提 鍵 度 道 量 示 盤 聲 顯 掃 監 顯 低 音 鎖 控 示 描 聽 示 省 繁 雙 亞 頻 電 守 忙 音 道 數...
- Page 12 3. 充電 3.1【充電】 將 DC 插頭插入充電座並將電源適配器接入 AC 電源 2) 對講機放入充電座進行充電，充電時間: 3-4 小時 4. 功能選擇 4.1【功能選擇】 持續按下〔 〕鍵 2 秒可進入功能選擇，繼續按下〔 〕鍵可進入所需功能選擇,然後按 〔 〕鍵選擇所需功能，按下機側〔 〕鍵確認。若無按鍵操作，10 秒後將自動退 出選單畫面。 --音量-- --級-- STEP 1-16 VOL SET --副頻-- --靜噪-- --聲控發射-- --頻道-- TONE SET SQL SET VOX SET CH SET CTCSS / CH 1-20...
- Page 13 5. 簡易調頻方法 先在機頂長按〔 〕鍵開機。 長按〔 〕鍵,直至 LCD 屏幕數字閃動，再按〔 〕鍵揀選通話頻道。 再輕按〔 〕鍵， LCD 屏幕會出現 CTC oFF， 再按〔 〕鍵揀選副頻道 (CTCSS 1–53,DCS 1-104) 。 此時可按下機側〔 〕鍵完成調頻或可再按〔 〕鍵跳至以下顯示並以 〔 〕鍵揀選需要的設定，任何時候皆可按下機側〔 〕鍵完成設定。 SL001 ......... 靜噪靈敏度 Uo off ........ 聲控發射 dc off ......... 雙守候掃描...
- Page 14 6. 一般操作 6.9 【CTCSS / DCS 模擬亞音頻/數字亞音頻設置】 於調頻時, 按下〔 〕鍵進入“CTC/DCS***”模擬亞音頻/數字亞音頻設置模式，按〔 〕 鍵選擇所需副頻，然後按下〔 〕鍵確認 (如開啟此功能，收發雙方需選用相同的頻道、 CTCSS / DCS 代碼才能互相通話)。 6.10【靜噪水平】 於調頻時, 按下〔 〕鍵進入“SL***”靜噪水平模式，按〔 〕鍵選擇 1-5 級別靜噪功 能，按下〔 〕鍵確認(出廠預設為 1)。 6.11【VOX 聲控發射】 於調頻時, 按下〔 〕鍵進入“Vo***”聲控發射模式，按〔 〕鍵選擇開/關聲控發射功 能，然後按下〔 〕鍵確認。 6.12【DW 雙守候功能】 於調頻時, 按下〔 〕鍵進入“dc***”雙守候模式，“DW”將於...
-
Page 15: Technical Specifications
TECHNICAL SPECIFICATIONS General Battery type Li-Polymer Battery capacity 1100mAh Stand by time 15hours Stand by time+back light 12hours Temperature range 20℃-+55℃ Frequency stability ±2.5ppm Size (HxWxD) 94x53x26mm Weight Incl. battery 115g Sub tones CTCSS/DCS Frequency range 476.425 –477.4125 MHz CP229A Ausralia Channels 80 CHs... - Page 16 CTCSS Frequency Frequency Frequency Frequency 67.0 107.2 167.9 159.8 71.9 110.9 173.8 183.5 74.4 114.8 179.9 189.9 77.0 118.8 186.2 196.6 79.7 123.0 192.8 199.5 82.5 127.3 203.5 206.5 85.4 131.8 210.7 229.1 88.5 136.5 218.1 254.1 91.5 141.3 225.7 165.5 94.8 146.2...
-
Page 17: Warranty
WARRANTY CPS Telecom will give 12 months warranty against failure made by the manufacturer from the date of purchase. The warranty will not cover damage made by the user, the user opening the equipment, moist, dirt, heat or cold. The warranty will not cover lightning/overvoltage. - Page 18 Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 19 CPS Telecom Limited, Hong Kong © 2017 CPS Telecom Limited CPS20171023229V.1.2...
