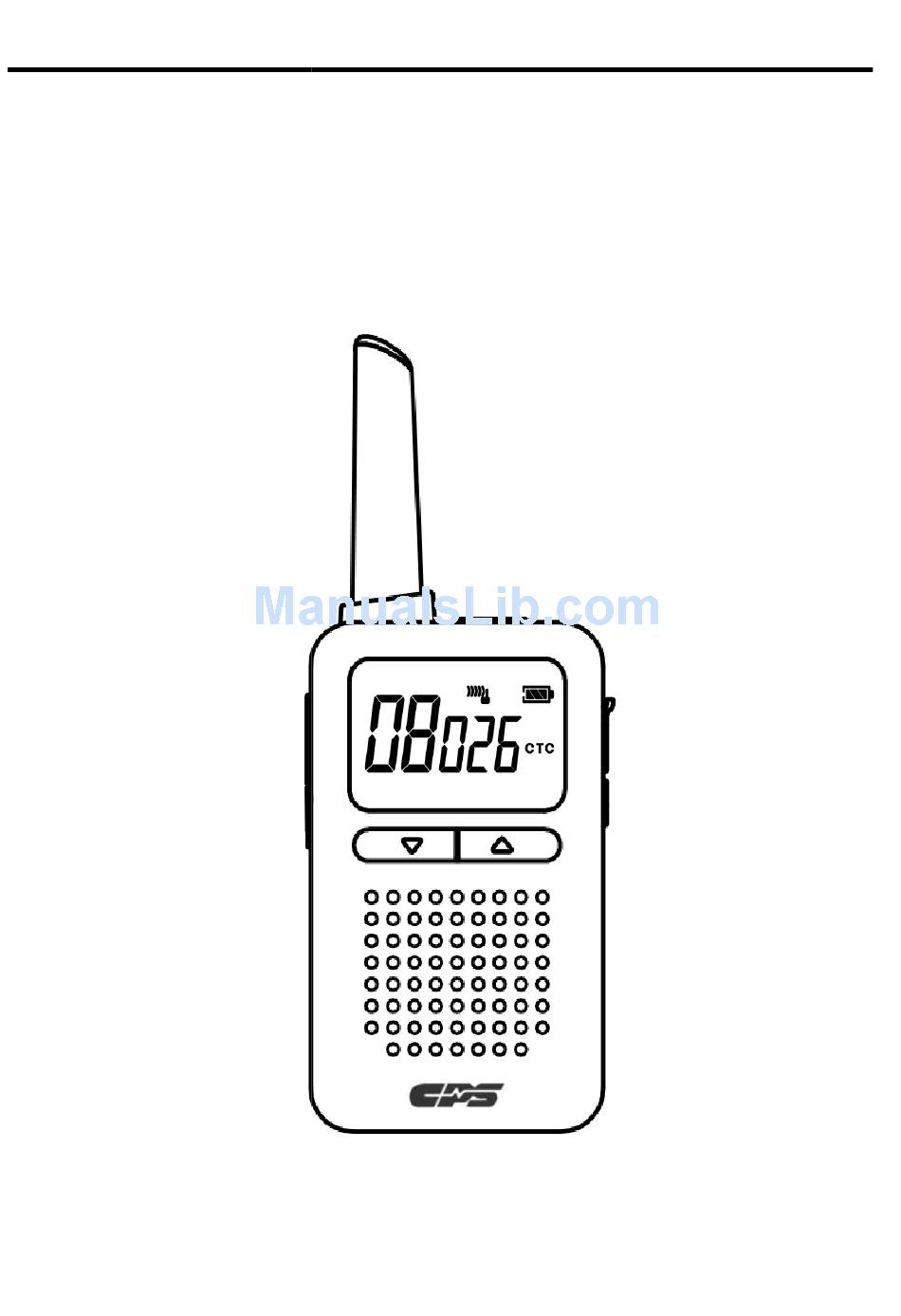

- Page 1 CP226 SMARTB BUSINESS WALKIE TALKIE WALKIE TALKIE USER MANUA USER MANUAL...
-
Page 2: General Information
1. GENERAL INFORMATION 1.1【Introduction】 The CP226 ARC mini Business Walkie Talkie combines quality and versatility with an elegant design that ensures effective communications right at your fingertips. 1.2【Key Features】 53CTCSS and 104 DCS Volume setting (1–16) Key Lock ... -
Page 3: Controls And Indicators
2. CONTROLS AND INDICATORS Power Switch LCD Display Down Key Up Key Loud Speaker Microphone 菜單鍵 External Speaker PTT Key /Mic.Cap Function key Belt Clip... - Page 4 2. CONTROLS AND INDICATORS Battery condition RSSI lock CTCSS Channel number CTCSS/DCS number...
-
Page 5: Menu Setting
3. CHARGING THE BATTERY 3.1【Charging】 1) Plug the AC adaptor into a standard electrical outlet 2) Insert the Walkie Talkie into the charging tray for charging. It will take 3 - 4 hours for full charging 4. MENU SETTING 4.1【Menu Setting】 Press 〔... -
Page 6: Operation
6. OPERATION 6.1 【Power On / Off】 〕key . To turn the radio on or off, press and hold the power on〔 6.2 【Volume】 〕key (16 steps, default 8) Adjust the volume level by using〔 6.3 【Transmission】 〕key while speaking at about 5cm from the microphone for Press and hold the〔... - Page 7 1. 概述 1.1【概述】 CP226 ARC mini 商用對講機結合了高品質和多功能性以及優美輕巧的設計，確保有效的通信令 您得心應手。 1.2【功能描述】 內置 53 個單音 CTCSS 及 104 個 DCS 數字私線組合 DCS(CTCSS 及 DCS) 音量調較(16 級) 鍵盤鎖功能 省電功能 0.5W 音頻功率輸出 3.7V 1100mAh 鋰高分子電池 接收訊號強弱顯示(RSSI) 電量狀態顯示...
- Page 8 2. 控制鍵及顯示說明 電源開關鍵 LCD 顯示屏 上鍵 下鍵 麥克風 揚聲器 PTT 鍵 外置揚聲器 麥克風介面 功能鍵 機 夾...
- Page 9 2. 控制鍵及顯示說明 信 號 強 電 度 量 顯 顯 示 示 鍵 盤 鎖 頻 亞 道 音 數 序 頻 模 字 號 序 拟 亞 號 亞 音 音 頻 頻...
- Page 10 3. 充電 3.1【充電】 1) 將 DC 插頭插入充電座並將電源適配器接入 AC 電源 2) 對講機放入充電座進行充電，充電時間: 3-4 小時 4. 功能選擇 4.1【功能選擇】 同時按下〔 〕鍵及〔 〕鍵可進入功能選擇，繼續按下〔 〕鍵可進入所需功能選擇,然後 按〔 〕鍵選擇所需功能，按下機側〔 〕鍵確認。若無按鍵操作，10 秒後將自動退 出選單畫面。 --副頻-- --頻道-- --音量-- --級-- TONE SET CH SET STEP 1-16 VOL SET CTCSS / CH 1-20 DCS EDIT 5.
- Page 11 6. 一般操作 6.1 【開機/關機】 持續按下電源〔 〕鍵開機或關機。 6.2 【音量調較】 按〔 〕鍵調較音量(共有 16 級, 出廠預設為 8 級)。 6.3 【發射】 持續按下機側〔 〕鍵對距離麥克風 5cm 講話，鬆開機側〔 〕鍵恢復接收狀態。 6.4 【接收】 對講機處於待機模式, 以便接收訊號。 6.5 【鍵盤鎖】 同時按下〔 〕鍵及〔 〕鍵可選擇開或關鍵盤鎖。 6.6 【頻道選擇】 同時按下〔 〕鍵及〔 〕進入“** CH”頻道選擇模式，頻道號碼將會閃動，按〔 〕 鍵選擇所需頻道，再按〔 〕鍵確認。當持續按〔 〕鍵時，頻道會不停地調上/調下。...
-
Page 12: Technical Specifications
TECHNICAL SPECIFICATIONS General Battery type Li-Polymer Battery capacity 1100mAh Stand by time 15hours Stand by time+back light 12hours Temperature range 20℃-+55℃ Frequency stability ±2.5ppm Size (HxWxD) 74x44x19mm Weight Incl. battery Sub tones CTCSS/DCS Frequency range 476.425 –477.4125 MHz CP226A Ausralia Channels 80 CHs British... - Page 13 CTCSS Frequency Frequency Frequency Frequency 67.0 107.2 167.9 159.8 71.9 110.9 173.8 183.5 74.4 114.8 179.9 189.9 77.0 118.8 186.2 196.6 79.7 123.0 192.8 199.5 82.5 127.3 203.5 206.5 85.4 131.8 210.7 229.1 88.5 136.5 218.1 254.1 91.5 141.3 225.7 165.5 94.8 146.2...
-
Page 14: Warranty
WARRANTY CPS Telecom will give 12 months warranty against failure made by the manufacturer from the date of purchase. The warranty will not cover damage made by the user, the user opening the equipment, moist, dirt, heat or cold. The warranty will not cover lightning/overvoltage. - Page 15 Federal Communications Commission (FCC) Interference Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
- Page 16 CPS Telecom Limited, Hong Kong © 2017 CPS Telecom Limited CPS20171030226V.1.2...
