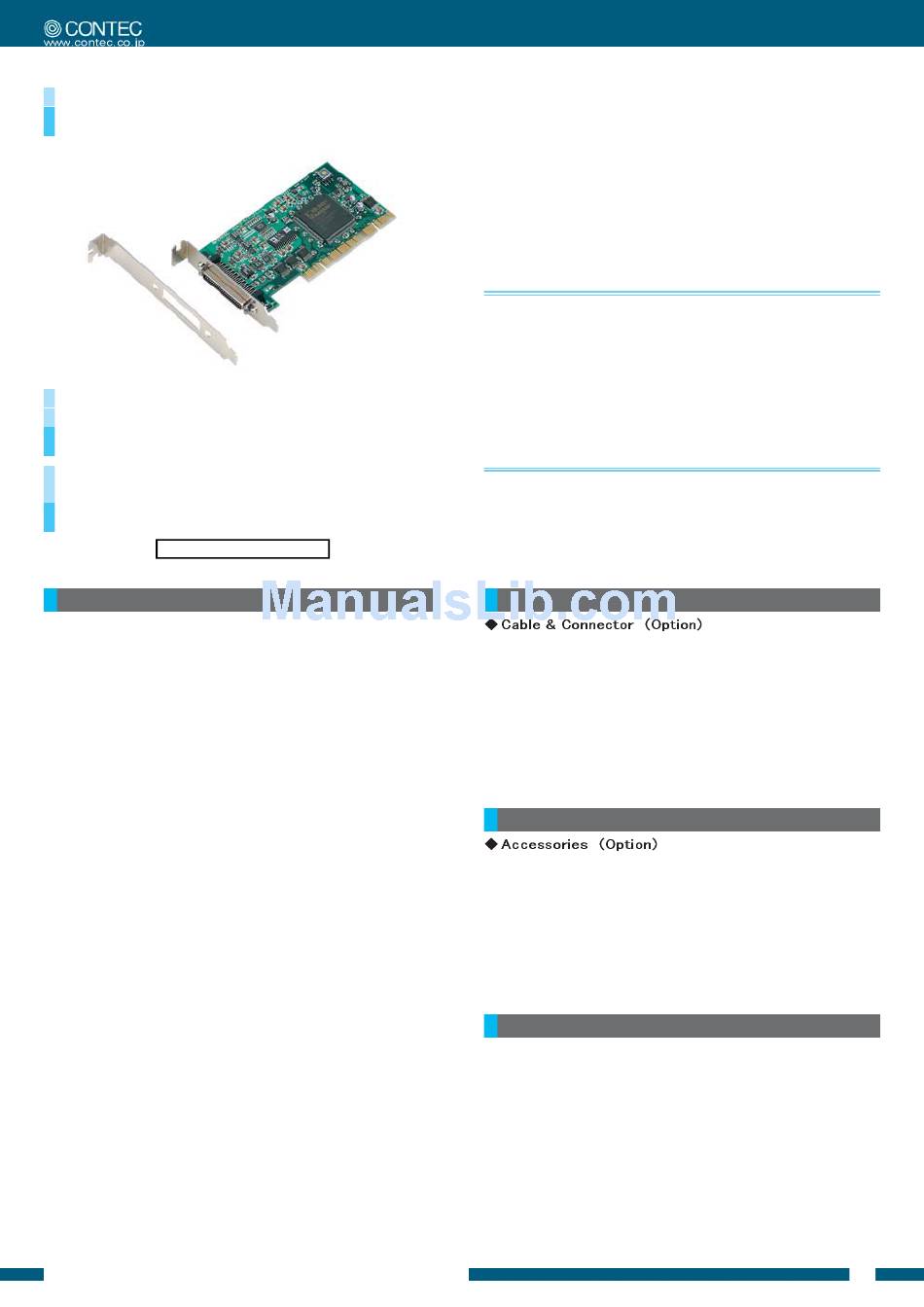

Contec ADA16-8/2(LPCI)L Manual

High-Resolution Analog I/O Board for Low Profile PCI
ADA16-8/2(LPCI)L
High-Reolution Analog Input Board
for Low Profile PCI
AD16-16(LPCI)L
High-Resolution Analog Output Board
for Low Profile PCI
DA16-4(LPCI)L
with Driver Library [API-PAC(W32)]
Features
- Rich set of basic functions
Compact system providing high-precision analog inputs/outputs.
A series of three models selectable to meet the application.
< ADA16-8/2(LPCI)L > is a control single of analog input(16bits,
8ch), analog output(16bit, 2ch), analog I/O.
< AD16-16(LPCI)L > is a control signal(3 points) of analog
input(16bits, 16ch), analog input.
< DA16-4(LPCI)L > is a control signal(3 points) of analog
output(16bits, 4ch), analog output.
Digital inputs (four channels), digital outputs (four channels), and
a counter (32-bit one channel) common to the three models.
- Substantial control functions
Capable of analog input/output in either time-based mode or
external-signal synchronous mode.
- Filter function facilitating external signal connection
Digital filters provided for external control analog I/O signals,
preventing chattering
- Buffer memory
The analog inputs and outputs each have their own buffer
memory.
You can also perform analog input and output in the background,
independent of software and the current status of the PC.
- Software-based calibration
Setting and calibrating the analog input and output can be
performed completely by software.
No tricky jumper settings are required. You can also set your own
calibration data in place of the default data set at the factory and
use different calibration data depending on the operating
conditions.
- Exchangeable low-profile and standard PCI slots
Support for both of low-profile and standard PCI slots
(interchangeable with a bundled bracket).
ADA16-8/2(LPCI)L, AD16-16(LPCI)L, DA16-4(LPCI)L

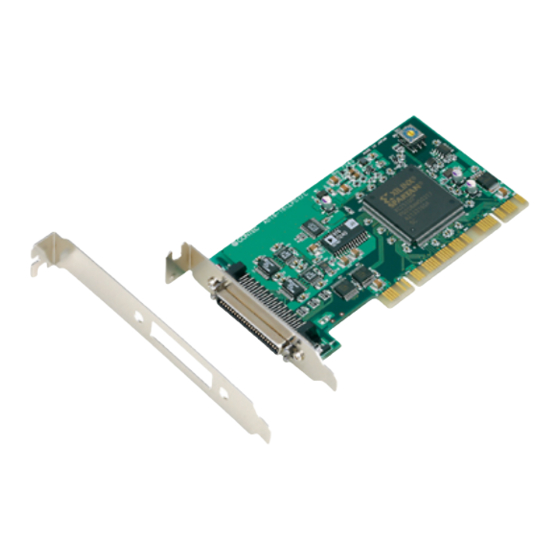

This product is a PCI-compliant interface board that incorporates
high-precision analog inputs, high-precision analog outputs, digital
inputs, digital outputs, and a counter function.
The board can make your space-saving PC into a cost-effective
analog input/output system.
Using the bundled API function library package [API-PAC(W32)],
you can create Windows application software for this board in your
favorite programming language supporting Win32 API functions,
such as Visual Basic or Visual C/C++.
Cable & Connector
Shield Cable with Two 50-Pin Mini-Ribbon Connector
Shield Cable with One 50-Pin Mini-Ribbon Connector
Accessories
Screw Terminal Unit(M3 terminal block, 50 points)
BNC Connector Screw Terminal Unit
*1 PCB50PS-0.5P or PCB50PS-1.5P optional cable is required
separately.
Product Configuration List
- Board (One of the following) ... 1
[ADA16-8/2(LPCI)L, AD16-16(LPCI)L or DA16-4(LPCI)L]
- First step guide ... 1
- CD-ROM *1 [API-PAC(W32)] ... 1
- Bracket for PCI ... 1
*1 The CD-ROM contains the driver software and User's Guide (this
guide)
Ver.1.00
: PCB50PS-0.5P (0.5m)
: PCB50PS-1.5P (1.5m)
: PCA50PS-0.5P (0.5m)
: PCA50PS-1.5P (1.5m)
: EPD-50A *1
: ATP-8L *1
1
