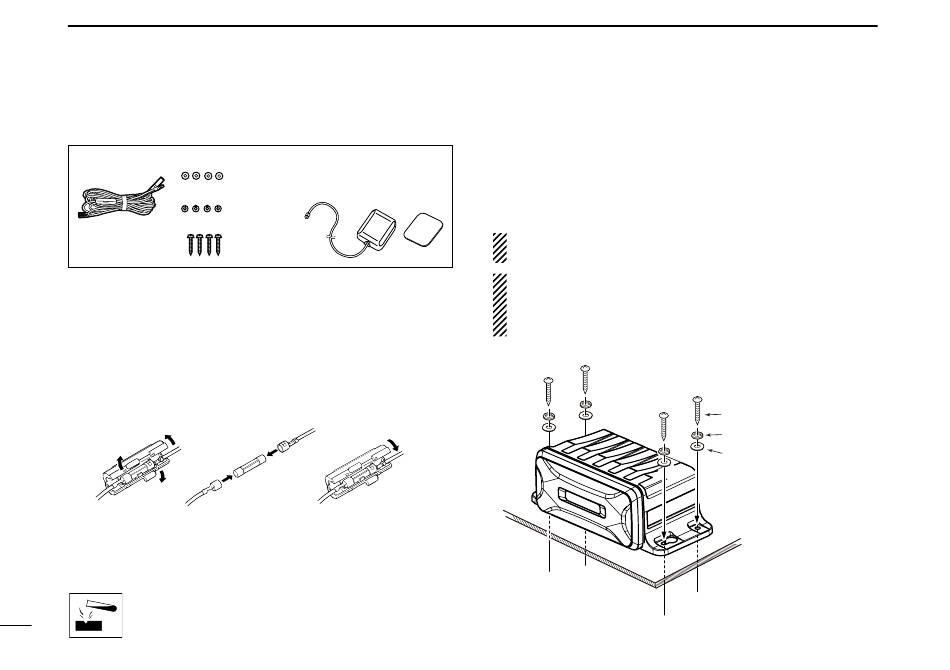

■ Supplied accessories

DC power cable
Flat washers (M5)
(OPC-891A)
Spring washers (M5)
Screws (5×20 mm)
* Not supplied, or the type is different, depending on the transceiver's
versions.

■ Fuse replacement

One fuse is installed in the supplied DC power cable. If the
fuse blows or the transceiver stops functioning, track down
the source of the problem, repair it, and replace the damaged
fuse with a new one of the proper rating.

■ Cleaning

If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.
DO NOT use harsh solvents such as benzine or
alcohol, as they will damage transceiver surfaces.
8
GPS antenna
and double-sided
adhesive pad*
Fuse rating: 10 A

■ Mounting the transceiver

Using the supplied template on the leaflet, mount the IC-
M400BB/IC-M400BBE securely to a surface which is more
than 10 mm thick and can support more than 5 kg using the 4
supplied screws (5 × 20 mm), as illustrated below.
KEEP the transceiver and microphone at least 1 meter
away from the vessel's magnetic navigation compass.
NOTE for the IC-M400BBE: Be sure the GPS antenna is
positioned where the GPS antenna has a clear view to
receive signal from satellites, and fixed using the supplied
double-sided adhesive pad.
Screws
Spring washer
Flat washer
Secure the transceiver
to a flat surface using
the supplied screws, as
shown in the illustration.
