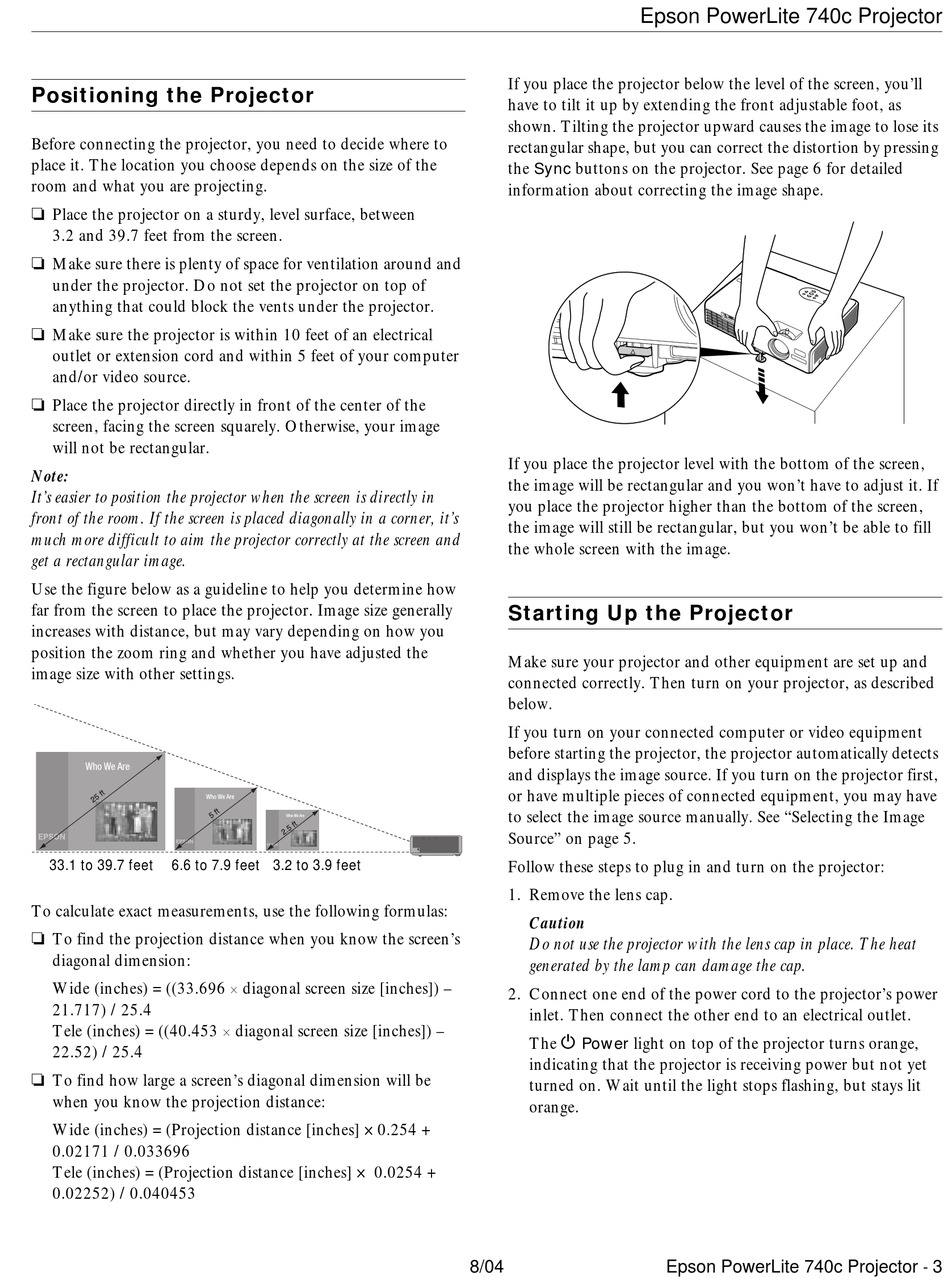

Positioning the Projector

Before connecting the projector, you need to decide where to
place it. The location you choose depends on the size of the
room and what you are projecting.
Place the projector on a sturdy, level surface, between
3.2 and 39.7 feet from the screen.
Make sure there is plenty of space for ventilation around and
under the projector. Do not set the projector on top of
anything that could block the vents under the projector.
Make sure the projector is within 10 feet of an electrical
outlet or extension cord and within 5 feet of your computer
and/or video source.
Place the projector directly in front of the center of the
screen, facing the screen squarely. Otherwise, your image
will not be rectangular.
Note:
It's easier to position the projector when the screen is directly in
front of the room. If the screen is placed diagonally in a corner, it's
much more difficult to aim the projector correctly at the screen and
get a rectangular image.
Use the figure below as a guideline to help you determine how
far from the screen to place the projector. Image size generally
increases with distance, but may vary depending on how you
position the zoom ring and whether you have adjusted the
image size with other settings.
33.1 to 39.7 feet
6.6 to 7.9 feet 3.2 to 3.9 feet
To calculate exact measurements, use the following formulas:
To find the projection distance when you know the screen's
diagonal dimension:
Wide (inches) = ((33.696
21.717) / 25.4
Tele (inches) = ((40.453
22.52) / 25.4
To find how large a screen's diagonal dimension will be
when you know the projection distance:
Wide (inches) = (Projection distance [inches] × 0.254 +
0.02171 / 0.033696
Tele (inches) = (Projection distance [inches] × 0.0254 +
0.02252) / 0.040453
×
diagonal screen size [inches]) –
×
diagonal screen size [inches]) –
Epson PowerLite 740c Projector
If you place the projector below the level of the screen, you'll
have to tilt it up by extending the front adjustable foot, as
shown. Tilting the projector upward causes the image to lose its
rectangular shape, but you can correct the distortion by pressing
the
buttons on the projector. See page 6 for detailed
Sync
information about correcting the image shape.
If you place the projector level with the bottom of the screen,
the image will be rectangular and you won't have to adjust it. If
you place the projector higher than the bottom of the screen,
the image will still be rectangular, but you won't be able to fill
the whole screen with the image.

Starting Up the Projector

Make sure your projector and other equipment are set up and
connected correctly. Then turn on your projector, as described
below.
If you turn on your connected computer or video equipment
before starting the projector, the projector automatically detects
and displays the image source. If you turn on the projector first,
or have multiple pieces of connected equipment, you may have
to select the image source manually. See "Selecting the Image
Source" on page 5.
Follow these steps to plug in and turn on the projector:
1. Remove the lens cap.
Caution
Do not use the projector with the lens cap in place. The heat
generated by the lamp can damage the cap.
2. Connect one end of the power cord to the projector's power
inlet. Then connect the other end to an electrical outlet.
The P
light on top of the projector turns orange,
Power
indicating that the projector is receiving power but not yet
turned on. Wait until the light stops flashing, but stays lit
orange.
8/04
Epson PowerLite 740c Projector
3
-
