Projector Parts

Focus ring
Exhaust air vent
Foot adjust lever
Lens cap
Video port
Audio port
USB port
Rear adjustable
Power inlet
foot

Specifications

General
Type of display
Poly-silicon TFT active matrix
Resolution
1024
(native format)
Color
24-bit, 16.8 million colors
reproduction
Brightness
2500 lumens (High Brightness mode)
(ANSI)
2000 lumens (Low Brightness mode)
Contrast ratio
400:1
Image size
30 to 300 inches (0.8 to 7.6 meters)
Projection
3.2 to 39.7 feet (1.0 to 12.1 meters)
distance
Zoom ring
Control panel
Security lock
I/R receiver
S-Video port
Computer/Component
Video port
Speaker
×
768 pixels (XGA)

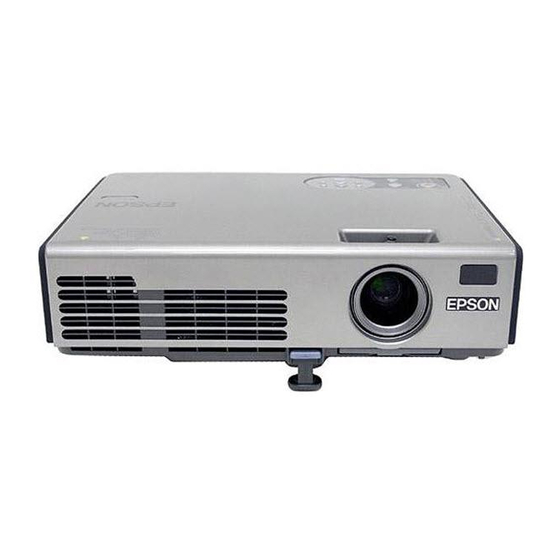

Epson PowerLite 740c Projector
Projection
Front, rear, upside-down (ceiling mount)
methods
Internal
1 W monaural
sound system
Optical aspect
4:3 (horizontal:vertical)
ratio
Zoom ratio
1:1.2
Noise level
36 dB (Low Brightness mode)
Mouse
Supports USB (type B)
compatibility
Projection Lamp
Type
UHE (Ultra High Efficiency)
Power
170 W
consumption
Lamp life
High Brightness mode: about 2000 hours
Low Brightness Mode: about 3000 hours
Part number
V13H010L32
Remote Control
Range
20 feet (6 meters)
Batteries (2)
Alkaline AAA
Dimensions
Height
2.7 inches (70 mm), feet retracted
Width
10.9 inches (276 mm)
Depth
7.6 inches (193 mm)
Weight
3.8 lb (1.7 kg)
Electrical
Rated frequency
50/60 Hz AC
Power supply
100 to 120 VAC, 2.7 A
200 to 240 VAC, 1.1 A
Power
Operating: 240 W
consumption
Environmental
Temperature
Operating: 41 to 95 °F (5 to 35 °C)
Storage: 14 to 140 °F (–10 to 60 °C)
Humidity
Operating: 20 to 80% RH
(non-condensing) Storage: 10 to 90% RH
8/04
Epson PowerLite 740c Projector
