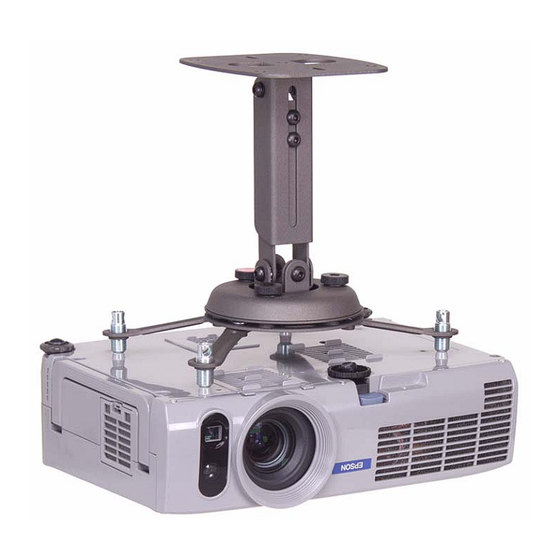

Epson PowerLite ELPMBUNI Installation Manual

Epson powerlite elpmbuni: installation guide.
Hide thumbs

Advertisement

INSTALLATION MANUAL

ELPMBUNI
EPSON AMERICA, INC.
INDIANAPOLIS DISTRIBUTION CENTER
2350 Stafford Road Suite 101
Plainfield, IN 46168
IN-ELPMBUNI.R3

Advertisement

   Related Manuals for Epson PowerLite ELPMBUNI

   Summary of Contents for Epson PowerLite ELPMBUNI

  • Page 1: Installation Manual

    INSTALLATION MANUAL ELPMBUNI EPSON AMERICA, INC. INDIANAPOLIS DISTRIBUTION CENTER 2350 Stafford Road Suite 101 Plainfield, IN 46168 IN-ELPMBUNI.R3...

  • Page 2: Table Of Contents

    ELPMBUNI Table of Contents Warranty ... - 3 - Contact Premier Mounts ... - 3 - Warning Statements ... - 4 - Parts List ... - 5 - Installation Tools ... - 5 - ELPMBUNI Universal Mount Assembly ... - 6 - Projector Preparation ...

  • Page 3: Contact Premier Mounts

    WARNING: PREMIER MOUNTS DOES NOT WARRANT AGAINST DAMAGE CAUSED BY THE USE OF ANY PREMIER MOUNTS PRODUCT FOR PURPOSES OTHER THAN THOSE FOR WHICH IT WAS DESIGNED OR DAMAGE CAUSED BY UNAUTHORIZED RESPONSIBLE FOR ANY DAMAGES, CLAIMS, DEMANDS, SUITS, ACTIONS OR CAUSES OF ACTION OF WHATEVER KIND RESULTING FROM, ARISING OUT OF OR IN ANY MANNER RELATING TO ANY SUCH USE, ATTACHMENTS OR MODIFICATIONS.

  • Page 4: Parts List

    ELPMBUNI Parts List NOTE: This mount is shipped with all proper installation hardware and components. Make sure that none of these parts are missing and/or damaged before beginning installation. If there are parts missing and/or damaged, please stop the installation and contact Premier Mounts (800-368-9700). Upper Assembly (Qty 1) Plastic Barrel Caps...

  • Page 5: Elpmbuni Universal Mount Assembly

    ELPMBUNI Universal Mount Assembly Single Wooden Stud Mounting Points Solid Structure Mounting Points Ceiling Plate Allen Wrench Height Adjustment Screws Tension Knobs Safety Knob Security Screws Leveling Barrels Universal Mounting Bracket Leg Assembly Projector (Not Supplied) Tri-Lock Opening Combination Single Leg NOTE: See the best configuration for your projector for filter and lamp...

  • Page 6: Projector Preparation

    ELPMBUNI Projector Preparation WARNING: Proper installation procedure by qualified personnel as outlined in the installation instructions must be adhered to. Failure to do so could result in serious personal injury and possible damage to the projector. CAUTION: THE PROJECTOR IS FRAGILE; HANDLE WITH CARE AT ALL TIMES. NOTE: Review the projectors manufacture’s operation manual and refer to the ceiling installation instruction.

  • Page 7

    Separate the upper assembly from the projector mounting bracket by slightly loosening the two tension knurl knobs to create free play between the bracket tri-lock assembly and the upper section tri-lock assembly points. Next loosen the safety screw knurl knob far enough to allow the two parts to be rotated 180° apart and separate.

  • Page 8: Securing The Bracket To The Projector

    ELPMBUNI Securing the Bracket to the Projector NOTE: The two-piece mounting legs are designed to allow routing of the legs around critical ventilation screens on the base of the projector as shown. You may also reduce the two-piece leg to a one-piece leg as shown for a better overall fit to the projector.

  • Page 9

    NOTE: If your projector model is not shown, when arranging the leg combination, simply ensure access to filters and lamp housings when aligning brackets. This mount works with all sub-25 pound projectors. Page - 10 - PowerLite S3, S4, 62C, 76C, 82C, Hardware: M4 x 12mm (Qty 3) PowerLite 830p, 835p Hardware: M4 x 12mm (Qty 4)

  • Page 10

    ELPMBUNI Top View Front View PowerLite 732c, 737c, 740C, 745C, 750c, 755c, 760c, 765c Hardware: M4 x 12mm (Qty 3) Installation Manual Page - 11 -...

  • Page 11

    ELPMBUNI PowerLite 7800p, 7850p, 7900p Hardware: M4 x 12mm (Qty 4) PowerLite 61p, 81p, 821p Hardware: M4 x 12mm (Qty 4) Page - 12 - Installation Manual...

  • Page 12

    ELPMBUNI Installation Manual PowerLite S1, S1+ Hardware: M4 x 12mm (Qty 3) PowerLite 6100i Hardware: M4 x 12mm (Qty 4) Page - 13 -...

  • Page 13: Leveling The Mounting Bracket

    Leveling the Mounting bracket Rotate the leveling barrels to level the mounting bracket next, position the mounting bracket so that it avoids most, if not all, ventilation points (including lamp & filter access doors). When the position desired is achieved tighten the mounting hardware to the projector then tighten the hex head leg screws with the Allen wrench (supplied) (Figure 8 and Figure 9).

  • Page 14: Securing The Upper Assembly Ceiling Plate

    ELPMBUNI Securing the Upper Assembly Ceiling Plate Review your projector’s distance calculation to determine what distance is recommended from the front of the lens to the edge of the screen for best picture ratio. Locate the inverted projectors top of the lens point to a point centered horizontally on the screen and no higher then the top image edge of the screen).

  • Page 15: Low-profile Installation

    Low-Profile Installation If your installation requires the overall height of the mount to be less that the approximate 9” shown with the standard mount assembly, you can convert the height to only 2 ½” by simply removing the adjustment channel as shown. Once the extension channel is removed, attach the upper ceiling plate to the ceiling.

  • Page 16

    ELPMBUNI Ceiling Plate Ceiling Structure Ceiling Structure Attach Bell Housing to the Ceiling Plate NOTE: Do not use the star washers on a close ceiling application. Installation Manual Wood Screws Figure 11 Figure 12 Wood Stud Allen Wrench Wood Stud Secure Bell Housing with Two...

  • Page 17: Securing The Projector To The Upper Assembly

    Securing the Projector to the Upper Assembly Make sure the three-knurl knobs are loosened to fully expose to the “tri-lock” mounting plate in the base of the upper assembly. Carefully lift the projector and insert the mounting bracket mating special tri-lock cutout into the mating portion of the upper assembly.

  • Page 18: Final Adjustments

    ELPMBUNI Final Adjustments With the projector secured in the mount and power on and signal supplied to the projector you can now proceed with the final height, tilt, and roll and yaw to optimize the projected image. The height can be adjusted by slightly loosening the two 8mm height adjustment screws and raising or lowering the projector (Figure 14).

  • Page 19: Installing The Plastic Caps

    Installing the Plastic Caps Once all the final adjustments have been done, install the plastic caps on the leveling barrels (Figure 17). Page - 20 - Figure 17 ELPMBUNI Installation Manual...
