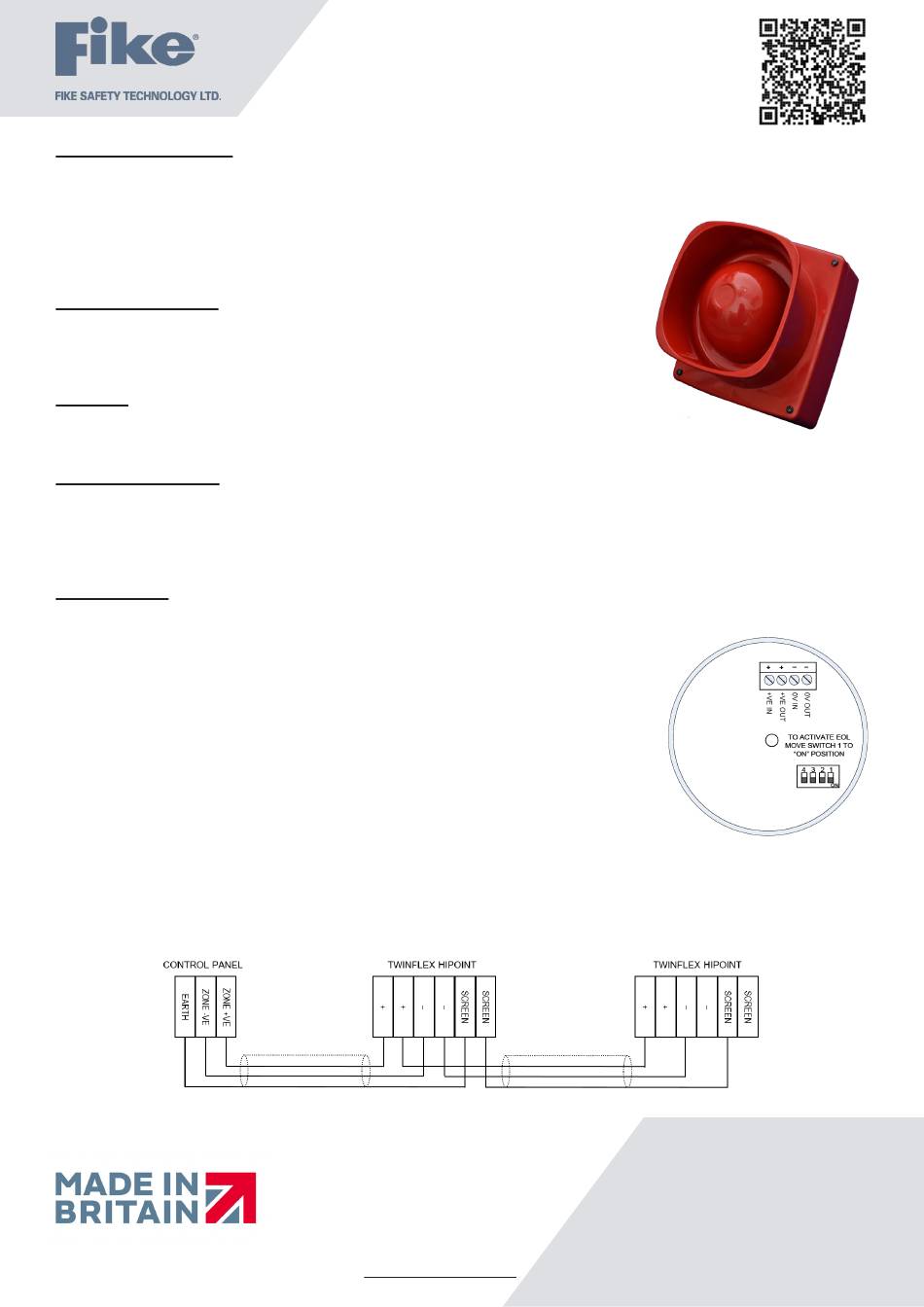

INSTALLATION AND MAINTENANCE
INSTRUCTIONS
302-0004 TWINFLEX HIPOINT
http://www.fike.co.uk/

General Description

resource-downloads/twinflex/
The Twinflex Hipoint unit allows for audible indication when the system enters an
alarm condition. This device is compatible with the Twinflex 2-wire range of Fire
Alarm equipment and comprises a 2-wire zone-powered sounder. This device may be
installed on the same zone as the Multipoint detector/sounder and associated Twinflex
devices.

Before Installation

The Sounder must be installed in compliance with the control panel installation manual.
The installation must also meet the requirements of any local authority.

Spacing

Fike recommends spacing of sounders in accordance with any local authority.

Device Installation

Fix the back box in a suitable position using at least two screw holes/slots, remembering to allow enough cable length
for installation. All wiring must be installed in compliance with the recommendations laid out by any local authority as
well as any special recommendations documented in the control panel installation manual.

Connections

The cabling used should be of a 2-core 1.5mm2 screened, fire resistant type (e.g. FP200
or equivalent), and is to be wired in the form of a screened 2-core radial circuit (with no
spurs) from the control panel, terminating at the last ("End of Line") device.
No screen connection is allowed for within the device. Incoming and outgoing cable
screens must therefore be connected through using a suitable connector. It is important
to maintain the screen continuity in order to protect against data corruption from
interference.
Once all testing has been carried out on the cabling and continuity & insulation has been
proven, the Hipoint front may be fitted. The Hipoint front is fitted by locating the rubber
seal in the groove on the back box and then pushing the front unit gently home. The four
fixing screws may then be tightened as required.
Remember that the device at the end of the line must have its EOL signal activated using the relevant DIL
switch. Do not use a resistor or capacitor (or another manufacturer's End of Line device) as the end of line, as
this may prevent correct operation of the zone.
Document No. 26-0378 Issue 13
This document is only intended to be a guideline and is not applicable to all
situations. Information subject to full disclaimer at www.fike.com/disclaimer
Subject to change

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Twinflex Hipoint and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Fike Twinflex Hipoint

  • Page 1 General Description resource-downloads/twinflex/ The Twinflex Hipoint unit allows for audible indication when the system enters an alarm condition. This device is compatible with the Twinflex 2-wire range of Fire Alarm equipment and comprises a 2-wire zone-powered sounder. This device may be installed on the same zone as the Multipoint detector/sounder and associated Twinflex devices.
  • Page 2 Twinflex Hipoints can be mixed on the same zone as other types of Twinflex device (eg. Twinflex Multipoint Detectors). The above diagram shows how to make the zone positive, zone negative and screen connections between the control panel and Twinflex Hipoints. Refer to the instruction leaflets supplied with other Twinflex devices for their equivalent wiring/terminal labelling details.
  • Page 3 Performance ensure that the contents of this document are correct Nominal activation conditions/Sensitivity, response delay (response time) at time of publication, Fike shall be under no liability Pass and performance under fire conditions whatsoever in respect of such contents. E&OE...
