OPERATING INSTRUCTIONS
High Temperature Capacity
Ultra-Life Stainless Steel Elements
Toughened Safety Glass
Easy Clean Crumb Tray
These instructions cover the models of ROBAND
variances between models, the installation, operation, care and maintenance procedure is the
same for all.
Manufactured By
ROBAND AUSTRALIA PTY LTD
PIE WARMERS
Models
PA50, PA100
PA40L, PA80L
Includes
Alternative models: ...-G
Special Features:
Version 3
Version 1
®
Pie Warmers only. Although there are slight
8/09/2014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROBAND PA100
Summary of Contents for ROBAND PA100

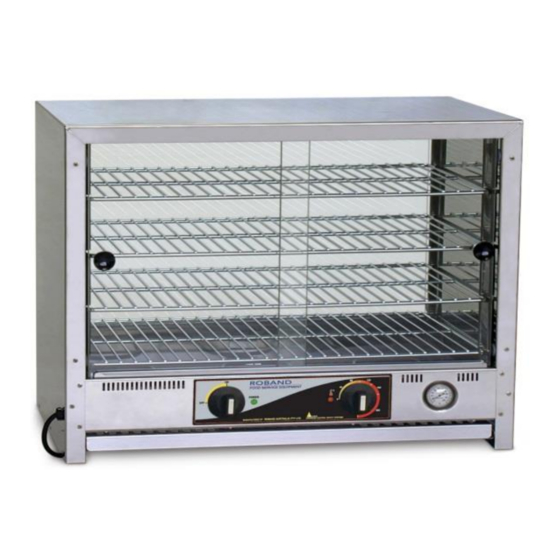

- Page 1 Ultra-Life Stainless Steel Elements Toughened Safety Glass Easy Clean Crumb Tray ® These instructions cover the models of ROBAND Pie Warmers only. Although there are slight variances between models, the installation, operation, care and maintenance procedure is the same for all.
- Page 2 Soup/Rice Warmers, Robatherm Urns, ö ® Austheat Fryers, Dipo Induction & Autofry Machines. Roband also has its own line of ® commercial cookware and cutlery under the Robinox brand name. For a complete set of brochures please contact your nearest authorised dealer or contact Roband directly at our head office.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 2 OPERATION......................3 GENERAL SAFETY ....................5 SAFETY GLASS ...................... 6 CLEANING, CARE & MAINTENANCE ..............7 TROUBLESHOOTING ..................... 8 SPECIFICATIONS ....................8 CIRCUIT DIAGRAM....................9 EXPLODED DIAGRAM .................. -
Page 4: Introduction
Pie Warmer, and ensure that any risk to unwary customers or staff is minimised with additional signage if necessary. Due to the obvious heat hazard Roband recommends that these units be kept out of reach of children. The performance of this unit cannot be guaranteed for operational use outside its design parameters. -
Page 5: Packaging
PACKAGING All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package of this Pie Warmer should include: One Pie Warmer (appropriate model) – includes shelves and crumb tray... -
Page 6: Operation
OPERATION The pie warmer is thermostatically controlled. First, rotate the on/off switch to the on position. The green pilot light will indicate that the unit has power. On the PA40L model, the internal light will also illuminate. Then rotate the thermostat knob to select the desired operating temperature, usually about 85-90°C for pies and sausage rolls. - Page 7 Please note: Heating is generated from the bottom of the unit. Consideration should be given when loading product into the pie warmer to allow spacing on the lower racks so that the hot air can rise through the lower shelves to the upper shelves.
-
Page 8: General Safety
SAFETY GENERAL SAFETY This machine contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Any repair person(s) should be instructed to read the safety warnings within this manual before commencing work on these units. -
Page 9: Safety Glass
(without being noticed). It is the opinion of Roband Australia that this glass is superior to both “Clear Float” and “Ceramic” glass with regards to function and safety. If glass doors are a concern a set of stainless steel doors may be purchased (contact your supplier). -
Page 10: Cleaning, Care & Maintenance
CLEANING, CARE & MAINTENANCE Attention to regular care and maintenance will ensure long and trouble free operation of your Pie Warmer. Ensure the power is off and the Pie Warmer is cool before attempting to clean any part of the machine. ... -
Page 11: Troubleshooting
Check Appendix A on page 14 of this manual on RCD’s. SPECIFICATIONS Nominal Dimensions Power Power MODEL Source Consumption Width(mm) Depth(mm) Height(mm) PA50, 240 Volts 1250 Watts PA40L 240 Volts PA100 1550 Watts Constant Research & Development may necessitate machine changes at any time Page: 8... -
Page 12: Circuit Diagram
CIRCUIT DIAGRAM Models: PA Series Note: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should person’s not suitably qualified attempt repairs to any electrical equipment. Page: 9... -
Page 13: Exploded Diagram
EXPLODED DIAGRAM PA50 Page: 10... - Page 14 PA100 Page: 11...
- Page 15 PA40L Page: 12...
- Page 16 PA80L Page: 13...
- Page 17 If you are unable to locate a circuit without an RCD please contact your supplier, or if you prefer you can contact Roband and send the unit to one of our offices where we can run the machine on a suitable circuit free of charge (a return freight charge may apply).
-
Page 18: Ec Declaration Of Conformity
DECLARATION I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above-mentioned standard(s). Roband Australia has appointed Valera Ltd as our EU Authorised Representative of : 5-7 The Glade Business... -
Page 19: Warranty
Any repairs or replacement of defective goods or materials pursuant to this warranty, must be authorized by Roband Australia prior to any action being taken. The company reserves the right to reject a claim for warranty if it is not completely satisfied with the circumstances under which it occurred and any other costs incurred for false claims or faults due to incorrect usage etc. - Page 20 OTHER LEADING PRODUCTS AVAILABLE: -PLUS DRINK MIXERS PIE & FOOD WARMERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS NOAW Slicers GRILLMAX TOASTERS Manufactured/Imported in Australia by: Authorised Distributor/Agent...
