Manufactured By
ROBAND AUSTRALIA PTY LTD
OPERATING INSTRUCTIONS

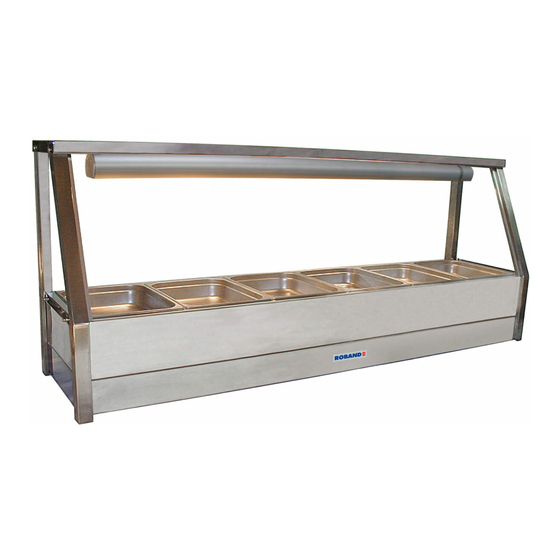

HOT FOOD BAR
Models: E14, E16, E22, E23, E24, E25, E26
Versions 6 and 7 Units
C22, C23, C24, C25 & C26
S22, S23, S24, S25 & S26
Versions 5 and 6 Units
®
These instructions cover the models of Roband
Hot Food Bars listed above only. Although there
are slight variances between models, the installation, operation, care and maintenance procedure
is the same for all.
2/09/2016
Advertisement
Table of Contents
Troubleshooting
Subscribe to Our Youtube Channel
Related Manuals for ROBAND E14
Summary of Contents for ROBAND E14
-
Page 1: Operating Instructions
Manufactured By ROBAND AUSTRALIA PTY LTD OPERATING INSTRUCTIONS HOT FOOD BAR Models: E14, E16, E22, E23, E24, E25, E26 Versions 6 and 7 Units C22, C23, C24, C25 & C26 S22, S23, S24, S25 & S26 Versions 5 and 6 Units ®... - Page 2 Soup/Rice Warmers, Robatherm Urns, ö ® Austheat Fryers, Dipo Induction & Autofry Machines. Roband also has its own line of ® commercial cookware and cutlery under the Robinox brand name. For a complete set of brochures please contact your nearest authorised dealer or contact Roband directly at our head office.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 3 OPERATION......................4 LAMP REPLACEMENT & INSTALLATION .............. 5 TROUBLESHOOTING ..................... 7 USE OUTSIDE DESIGN PARAMETERS..............7 GENERAL SAFETY ....................8 SAFETY GLASS ...................... 9 CLEANING, CARE &... -
Page 4: Introduction
Always be careful when near an operating food bar, and ensure that any risk to unwary customers or staff is minimised with additional signage if necessary. Due to the obvious heat hazard Roband recommends that these units be kept out of reach of children. -
Page 5: Packaging
PACKAGING All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package of these grills should include: One Hot Food Bar (appropriate model) – includes Heat lamps Steam Pans (If ordered with E series) -
Page 6: Installation
If it is preferred that these gaps be sealed Roband recommends the use of a silicon sealant such as Silastic. Before connecting the Food Bar to the power supply, ensure that the energy regulator is in the "OFF"... -
Page 7: Operation
OPERATION The food bar tank element and heat lamps are controlled individually. The tank element is controlled by an energy regulator, located on the control panel. The heat lamps are switched on with a toggle switch, also located on the control panel. The thermometer on the control panel has been designed to function as a guide for operation only. -
Page 8: Lamp Replacement & Installation
HEAT LAMPS The heat lamp globes in these appliances are specifically designed and manufactured for Roband food bars. Each lamp globe is rated at 250W, 230V. The lamps are controlled by a simple rocker switch. IMPORTANT: The heat lamp assembly should be powered on DURING and AFTER operation of the food bar. - Page 9 4) Using gentle force, push the lamp so that the sprung terminal pin and lamp retracts 5mm into the terminal block, then rotate lamp upwards so that alternate end is inserted into the other terminal block. Taking care to line up Centre Boss of Lamp with terminal pin in terminal, release spring and allow lamp to seat between the two terminal blocks.
-
Page 10: Troubleshooting
Such issues would not be covered by warranty. Chickens kept in these appliances should be kept on a Roband Chicken Tray (ECT22 and ECT23) and should be displayed for short periods only. Chickens kept in these appliances for periods of more than a couple of hours will dry out and become less palatable. -
Page 11: General Safety
SAFETY GENERAL SAFETY This appliance contains no user-serviceable parts. Roband Australia, one of our agents, or a similarly qualified person(s) should carry out any and all repairs. Any repair person(s) should be instructed to read the Safety warnings within this manual before commencing work on these units. -
Page 12: Safety Glass
The alternative is to have glass that can be very dangerous when broken, or worse, could chip off and fall onto the food within (without being noticed). It is the opinion of Roband Australia that this glass is superior to both “Clear Float” and “Ceramic” glass with regards to function and safety. -
Page 13: Troubleshooting
Use only soapy water to clean the unit (or glass cleaners on the glass panels) – many industrial chemical cleaners will damage plastics, polycarbonates or stainless steel, all of which are used in the construction of these appliances. Such damage could severely affect the operation of the unit and may result in appliance failures. -
Page 14: Specifications
SPECIFICATIONS Nominal Dimensions Depth – Power Power Width - Height - Model Source Rating 230Volts AC 2300 Watts 1135 230Volts AC 2300 Watts 1665 230Volts AC 1450 Watts 230Volts AC 2300 Watts 1030 230Volts AC 3200 Watts 1355 230Volts AC 3450 Watts 1680 230Volts AC... -
Page 15: Circuit Diagram
CIRCUIT DIAGRAM Models: E14, E16, E22, E23, E24, E25 & E26, C22, C23, C24, C25, C26, S22, S23, S24, S25 & S26, Note: For each model quantity of heatlamps vary. Note: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. -
Page 16: E Series Parts List
Terminal Block - Ceramic MC0435 Valve - Drain, 3/4" Energy Regulator & Graduated MC0086 Thermometer - 0 to 120°C TS0007 Knob EC0422 Lamp - 250W 230V PARTS FOR E14 PARTS FOR E16 Part Part Description Description Number Number EC0239 EC0239 Plug &... - Page 17 PARTS FOR E23 PARTS FOR E24 Part Part Description Description Number Number EC0239 Plug & Cord - 10 Amp Black EC0306 Plug & Cord - 15 Amp Black GC0012 Glass - Front GC0013 Glass - Front GC0017 Glass - Side GC0017 Glass - Side HC0031...
-
Page 18: C Series Parts List
C SERIES PARTS LIST COMMON PARTS LIST FOR C SERIES Part Part Description: Description: Number Number EC0008 Pilot Light - Amber MC0435 Valve - Drain, 3/4" EC0030 PS0075 Terminal Block - Plastic Silicone - Side Glass EC0031 Terminal Block - Ceramic PS0081 Silicone - Top EC0158... -
Page 19: S Series Parts List
PARTS FOR C25 PARTS FOR C26 Part Part Description Description Number Number EC0306 Plug & Cord - 15 Amp Black EC0306 Plug & Cord - 15 Amp Black GC0031 Glass - Front GC0032 Glass - Front HC0033 Element - 2700W 230V HC0034 Element - 2700W 230V PC0061... - Page 20 PARTS FOR S24 PARTS FOR S25 Part Part Description Description Number Number GC0105 Glass - Top GC0106 Glass - Top GC0110 Glass - Front GC0111 Glass - Front HC0032 HC0033 Element - 2700W 230V Element - 2700W 230V PC0061 Cord Clamp - 15A PC0061 Cord Clamp - 15A PS0078...
-
Page 21: Appendix A
If you are unable to locate a circuit without an RCD please contact your supplier, or if you prefer you can contact Roband and send the unit to one of our offices where we can run the appliance on a suitable circuit free of charge (a return freight charge may apply). - Page 22 NOTES This page is intentionally left blank. Please note your favourite settings here. Page: 19...
-
Page 23: Warranty
Any repairs or replacement of defective goods or materials pursuant to this warranty, must be authorized by Roband Australia prior to any action being taken. The company reserves the right to reject a claim for warranty if it is not completely satisfied with the circumstances under which it occurred and any other costs incurred for false claims or faults due to incorrect usage etc. - Page 24 OTHER LEADING PRODUCTS AVAILABLE: Sycloid Toaster DRINK MIXERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS NOAW Slicers GRILLMAX TOASTERS Manufactured/Imported in Australia by: Authorised Distributor/Agent Page: 21...
