OPERATING INSTRUCTIONS
Product Display Light
Alternate Shelf Spacings
Slimline Thermometer
These instructions cover the models of Roband
variances between models, the installation, operation, care and maintenance procedure is the
same for all.
Manufactured By
ROBAND AUSTRALIA PTY LTD

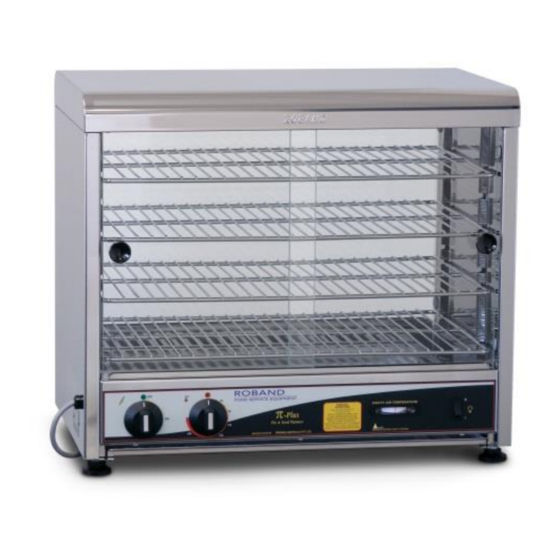

PIE WARMER
Models
PW50, PW100
PW50-UK
Includes
International models: ...-UK
Alternative models: ...-G
Special Features:
Version 3
Version 1
®
Pie Warmers only. Although there are slight
19/11/2014
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ROBAND PW50
Summary of Contents for ROBAND PW50

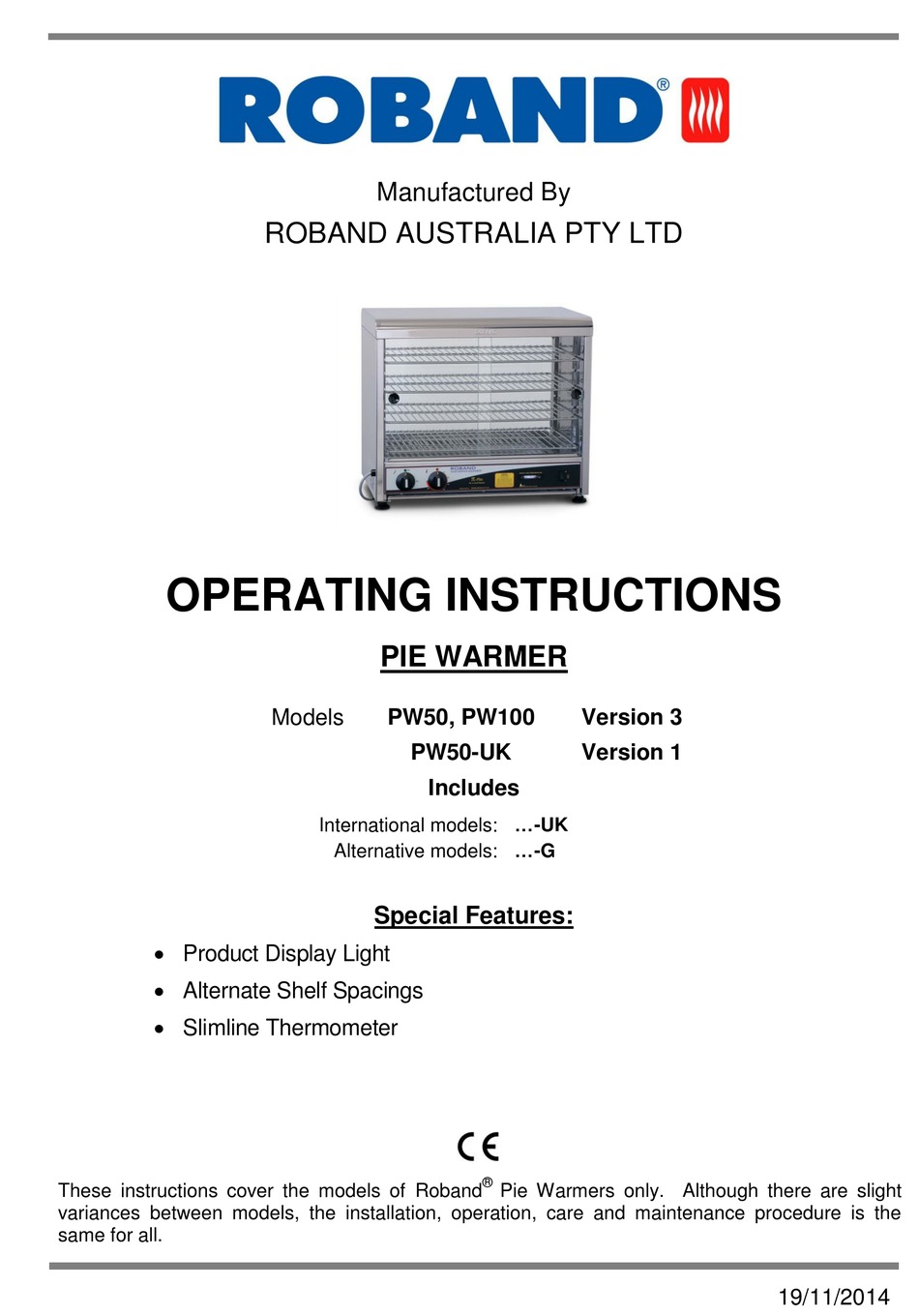

- Page 1 Product Display Light Alternate Shelf Spacings Slimline Thermometer ® These instructions cover the models of Roband Pie Warmers only. Although there are slight variances between models, the installation, operation, care and maintenance procedure is the same for all.
- Page 2 Soup/Rice Warmers, Robatherm Urns, ö ® Austheat Fryers, Dipo Induction & Autofry Machines. Roband also has its own line of ® commercial cookware and cutlery under the Robinox brand name. For a complete set of brochures please contact your nearest authorised dealer or contact Roband directly at our head office.
-
Page 3: Table Of Contents
CONTENTS INTRODUCTION ..................... 1 GENERAL PRECAUTIONS ..................1 PACKAGING ......................2 COMPLIANCE ......................2 INSTALLATION ....................... 3 OPERATION......................4 A GUIDE TO THE HEATING OF PIES ..............5 PRODUCT PLACEMENT ..................6 GENERAL SAFETY ....................7 CLEANING, CARE & MAINTENANCE ..............8 TROUBLESHOOTING ..................... -
Page 4: Introduction
Pie Warmer, and ensure that any risk to unwary customers or staff is minimised with additional signage if necessary. Due to the obvious heat hazard Roband recommends that these units be kept out of reach of children. Do not allow children to play with these units. -
Page 5: Packaging
PACKAGING All care is taken when packing and Roband ensures that every unit is functional and undamaged at the time of packaging. The Package of this Pie Warmer should include: One Pie Warmer (appropriate model) Shelves (appropriate number) One Crumb tray... -
Page 6: Installation
INSTALLATION Remove all the packaging materials and tape, as well as any protective plastic from the machine. Clean off any glue residue left over from the protective plastic or tape using methylated spirit. Place the warmer on a firm, level surface in the required position. As a precaution, it is recommended that all non-metal bench top surfaces be protected from heat with some form of insulation. -
Page 7: Operation
OPERATION Turn the ON/OFF switch to the ON position to turn on the unit. It should lock in the on position and illuminate the green pilot light above the ON/OFF switch. The pie warmer is thermostatically controlled. Rotate the thermostat knob to select the desired operating temperature, usually about 85-90°C for pies and sausage rolls. -
Page 8: A Guide To The Heating Of Pies
A GUIDE TO THE HEATING OF PIES These units are best utilised for maintaining and displaying freshly cooked Pies, Pasties and Sausage Rolls. Best results will be achieved with freshly baked pies being placed into the pre-heated cabinet. As most Pies sold now are pre-cooked and delivered either frozen or at room temperature the above circumstances are somewhat uncommon. -
Page 9: Product Placement
PRODUCT PLACEMENT Due to the heat emission from the element the hottest shelves in the Pie warmer will be the bottom shelves. When new product is placed in the unit throughout the day it is recommended that these shelves be utilised to prepare the food more quickly. -
Page 10: General Safety
(without being noticed). It is the opinion of Roband Australia that Toughened glass is superior to both “Clear Float” and “Ceramic” glass with regards to function and safety. If glass doors are a concern a set of Stainless steel doors may be purchased as an alternative (contact your supplier). -
Page 11: Cleaning, Care & Maintenance
CLEANING, CARE & MAINTENANCE Attention to regular care and maintenance will ensure long and trouble free operation of your toaster. Although scheduled servicing is not required we do recommend you adopt a program of regular maintenance to ensure that the machine is clean and functional and to avoid inadvertently damaging the unit. -
Page 12: Troubleshooting
The thermostat knob is not loose or broken, rendering the switch inoperable. The Green on/off switch is not in the “OFF” position. Only after all these points have been checked should you call for service. SPECIFICATION Model PW50 & PW50-UK PW100 Power Source 220-240 Volts AC 220-240 Volts AC... -
Page 13: Circuit Diagram
CIRCUIT DIAGRAM Models: PW50 & PW100 NOTE: This circuit diagram has been provided for reference and to assist qualified service and repair agents only. Under no circumstances should a person not suitably qualified attempt repairs to any electrical equipment. Page: 10... -
Page 14: Exploded Diagram
EXPLODED DIAGRAM Model: PW50 Page: 11... - Page 15 Model: PW100 Page: 12...
- Page 16 If you are unable to locate a circuit without an RCD please contact your supplier or contact Roband or our Agent for alternative suggestions. Page: 13...
- Page 17 NOTES This page is intentionally left blank. Please note your favourite settings here. Page: 14...
-
Page 18: Ec Declaration Of Conformity
DECLARATION I hereby declare under our sole responsibility that the product mentioned above to which this declaration relates complies with the above-mentioned standard(s). Roband Australia has appointed Valera Ltd as our EU Authorised Representative of : 5-7 The Glade Business... -
Page 19: Warranty
Any repairs or replacement of defective goods or materials pursuant to this warranty, must be authorized by Roband Australia prior to any action being taken. The company reserves the right to reject a claim for warranty if it is not completely satisfied with the circumstances under which it occurred and any other costs incurred for false claims or faults due to incorrect usage etc. - Page 20 OTHER LEADING PRODUCTS AVAILABLE: -PLUS DRINK MIXERS PIE & FOOD WARMERS HIGH PERFORMANCE DEEP FRYERS VITAMIX BLENDERS GRILLMAX TOASTERS NOAW Slicers Manufactured/Imported in Australia by: Authorised Distributor/Agent...
