Infinity MODULUS II Service Manual page 5

Technical Manual
MS-1
II

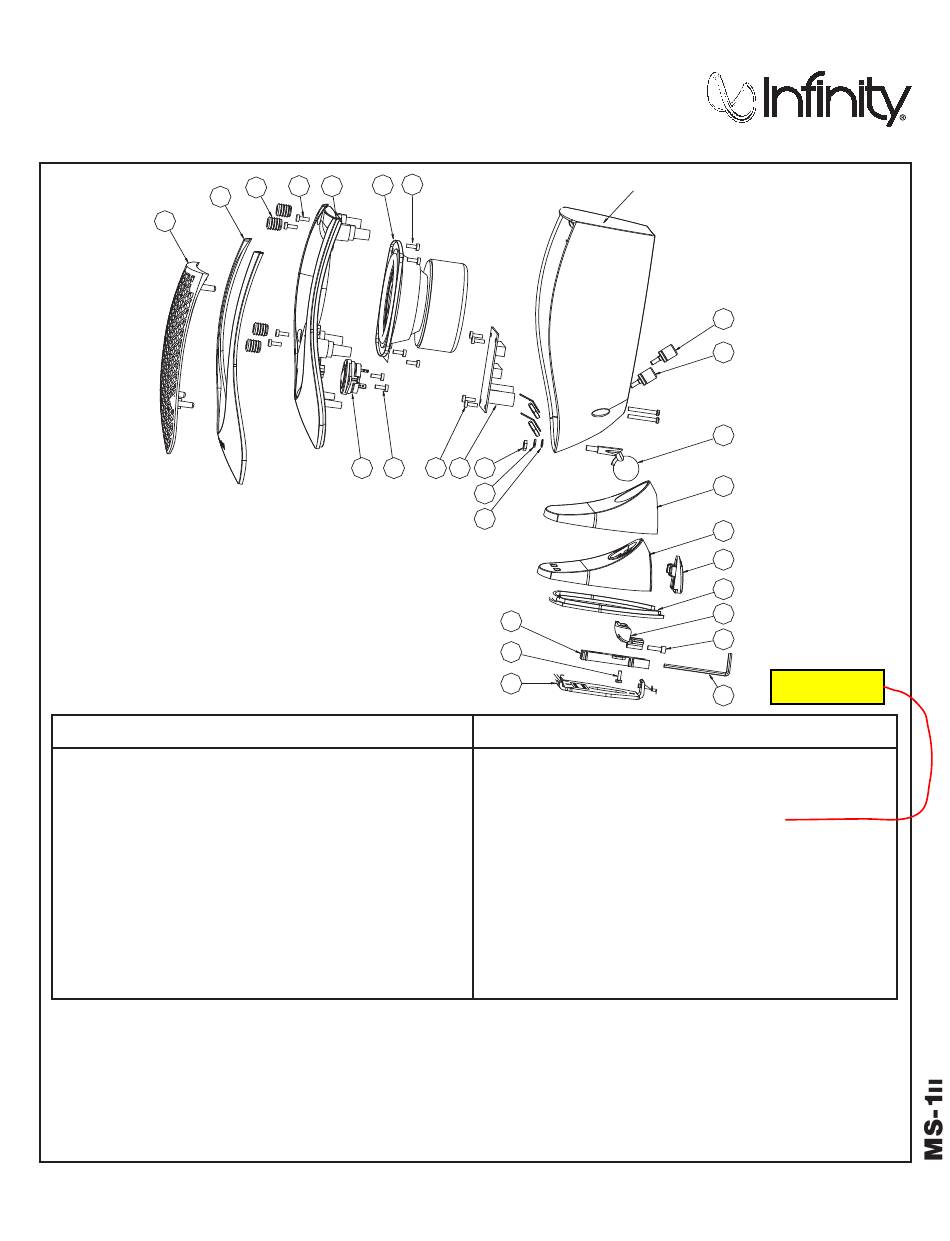

EXPLODED VIEW
2
1
ITEM
NO. DESCRIPTION
1. Front Grille (platinum)
(charcoal)
2. Aluminum Face Plate
3. Grommet (platinum)
(charcoal)
4. Screw
5. Baffle
6. Woofer
7. Screw
8. Tweeter
9. Screw
10. Screw
11. Crossover
12. Screw Cap
13. Skidproof Sheet
14. Washer Sheet
TO SERVICE THE MS-1
II
1. Remove the grille.
2. Remove the (4) exposed rubber grille retainers; this can be accomplished by carefully pulling them out of their cavities with long-nosed pliers or
similar tool.
3. Remove the (4) Phillips screws underneath, that are now exposed.
4. Remove the (2) additional screws in their respective cavities at the rear of the housing; push the wall bracket to one side for access with a
screwdriver bit.
5. Carefully lift the front baffle, with drivers attached, off the cabinet. Caution – do not pull on the corner of the metal baffle shield, or you may
dislodge it from the front baffle.
Infinity Systems, 250 Crossways Park Drive, Woodbury, New York 11797
7
6
4 5
3
8 9 10
QTY. PART NO.
1 244-040-00254W
1 244-040-00254G
1 Not For Sale
4 327-010-00112W
4 327-010-00112B
6 352-AM04020D603
1 Not For Sale
1 10PR80BZR-DW01
4 351-LM04006A565
1 60DA20AD-DT01
2 352-CM03010D593
4 352-FM04014P602
1 0B-1500-00751
1 354-HM05418
1 355-L0507239
1 355-P0510240
MS-1
II
11 12
13
14
25
27
28
ITEM
NO. DESCRIPTION
15. Rear Cabinet (platinum)
(charcoal)
16. Left Terminal
17. Right Terminal
18. Bracket Ball
19. Aluminum Plate (platinum)
(charcoal)
20. Aluminum Base
21. Back Foot Base
22. Rubber Strip
23. Bracket Holder
24. Screw
25. Wrench Box
26. Wrench
27. Screw
28. Iron Plate
Cabinet – Not for Sale
16
17
18
19
20
21
22
23
24
320-AL-00187
26
QTY. PART NO.
1 Not for Sale
1 Not for Sale
1 215-000-00792
1 215-000-00793
1 325-AL-00187
1 320-AL-00184-0WA
1 320-AL-00184-0W
1 320-AL-00185
1 320-RUB-00186
1 398-RUB-00249
1 320-AL-00416
1 351-KM04012A578
1 398-ABS-00250
1 399-FE-00618
1 351-AM03005A015
1 399-FE-00619
Rev2 03/05
6/04
