Maintenance (Cont.)
SHOCK OR BURN HAZARD: Before replacing oven light bulb, disconnect the electrical power to the
WARNING
range at the main fuse or circuit breaker panel. Failure to do so may result in electric shock or burn.
BURN HAZARD: The glass cover and bulb should be removed when cool. Touching hot glass with
CAUTION
bare hands or a damp cloth can cause burns.

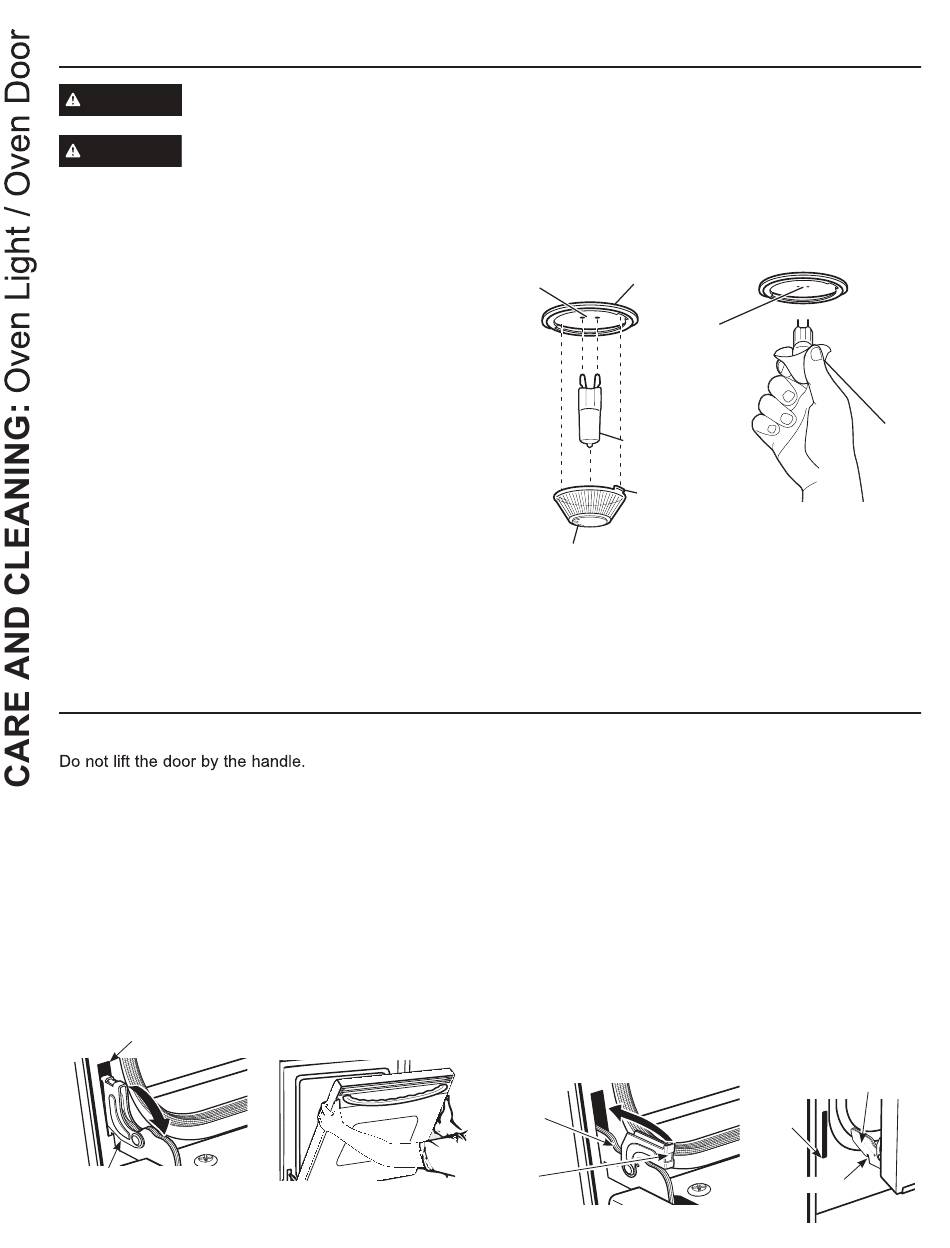

Oven Light Replacement (on some models)
To remove:
1. Turn the glass cover counterclockwise 1/4 turn until
the tabs of the glass cover clear the grooves of the
socket. Wearing latex gloves may offer a better grip.
2. Using gloves or a dry cloth, remove the bulb by
pulling it straight out.
To replace:
1. Use a new 120/130-volt halogen bulb, not to exceed
50 watts. Replace the bulb with the same type of bulb
that was removed. Be sure the replacement bulb is
rated 120 volts or 130 volts (NOT 12 volts).
2. Using gloves or a dry cloth, remove the bulb from its
packaging. Do not touch the bulb with bare fingers.
Oil from skin will damage the bulb and shorten its life.
3. Push the bulb straight into the receptacle all the way.
4. Place the tabs of the glass cover into the grooves of
the socket. Turn the glass cover clockwise 1/4 turn.
For improved lighting inside the oven, clean the glass
cover frequently using a wet cloth. This should be
done when the oven is completely cool.
5. Reconnect electrical power to the oven.

Oven Door

The door is very heavy. Be careful when removing and lifting
To remove the door:
1. Fully open the door.
2. Pull the hinge locks down toward the door frame, to
the unlocked position. A tool, such as a small flat-
blade screwdriver, may be required.
3. Firmly grasp both sides of the door at the top.
4. Close door to the door removal position. The door
should be open approximately 3" with no obstruction
above the door.
5. Lift door up and out until both hinge arms are clear of
the slots.
Slot
Hinge lock
Pull hinge locks down to unlock
26
Receptacle
Removal position
Socket
G9 Bulb
Tab
Glass cover
the door.
To replace the door:
1. Firmly grasp both sides of the door at the top.
2. Starting on the left side, with the door at the same
angle as the removal position, seat the indentation of
the hinge arm into the bottom edge of the hinge slot.
The notch in the hinge arm must be fully seated into
the bottom of the slot. Repeat for right side.
3. Fully open the door. If the door will not fully open, the
indentation is not seated correctly in the bottom edge
of the slot.
4. Push the hinge locks up against the front frame of the
oven cavity, to the locked position.
5. Close the oven door.
Hinge
arm
Hinge
lock
Push hinge locks up to lock
Receptacle
Hinge arm
Bottom
edge of
slot
Indentation
Use
gloves or
cloth
