OWNER'S /
OPERATOR'S
MANUAL
MODEL NO.'s
PF-448
SSPF-3748
SSPF-3755
SSPF-3760
SSPF-442
SSPF-448
SSPF-5548
SSPF-5560
GLPF-442
GLPF-448
GLPF-5548
GLPF-5560
JDPF-5442
JDPF-5448
JDPF-5460
JDPF-6748
JDPF-6760
JDPF-H48048
JDPF-H48060
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SI NO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.

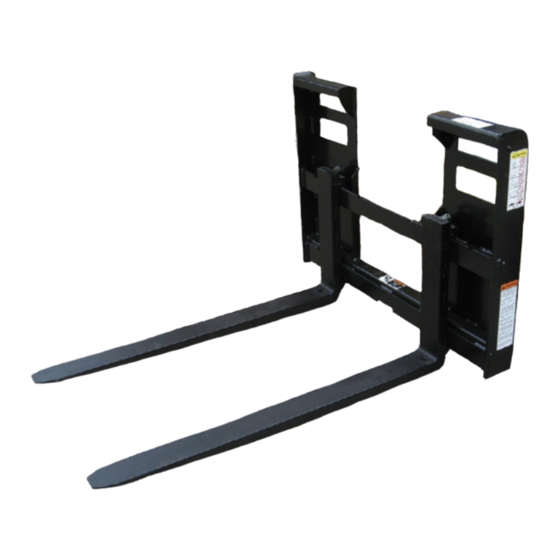

PALLET FORK
FOR SKID STEER
TRACTOR FRONT LOADERS
Safety Instructions
Tractor Preparation
Operating Instructions
PF-448
SSPF-3748/3755/3760
GLPF-448/5548/5560
Assembly & Mounting
Maintenance
Repair Parts
SSPF-442/448/5548/5560
JDPF-5442/5448/5460
JDPF-48048/48060
Advertisement
Related Manuals for Worksaver SSPF-3755
Summary of Contents for Worksaver SSPF-3755

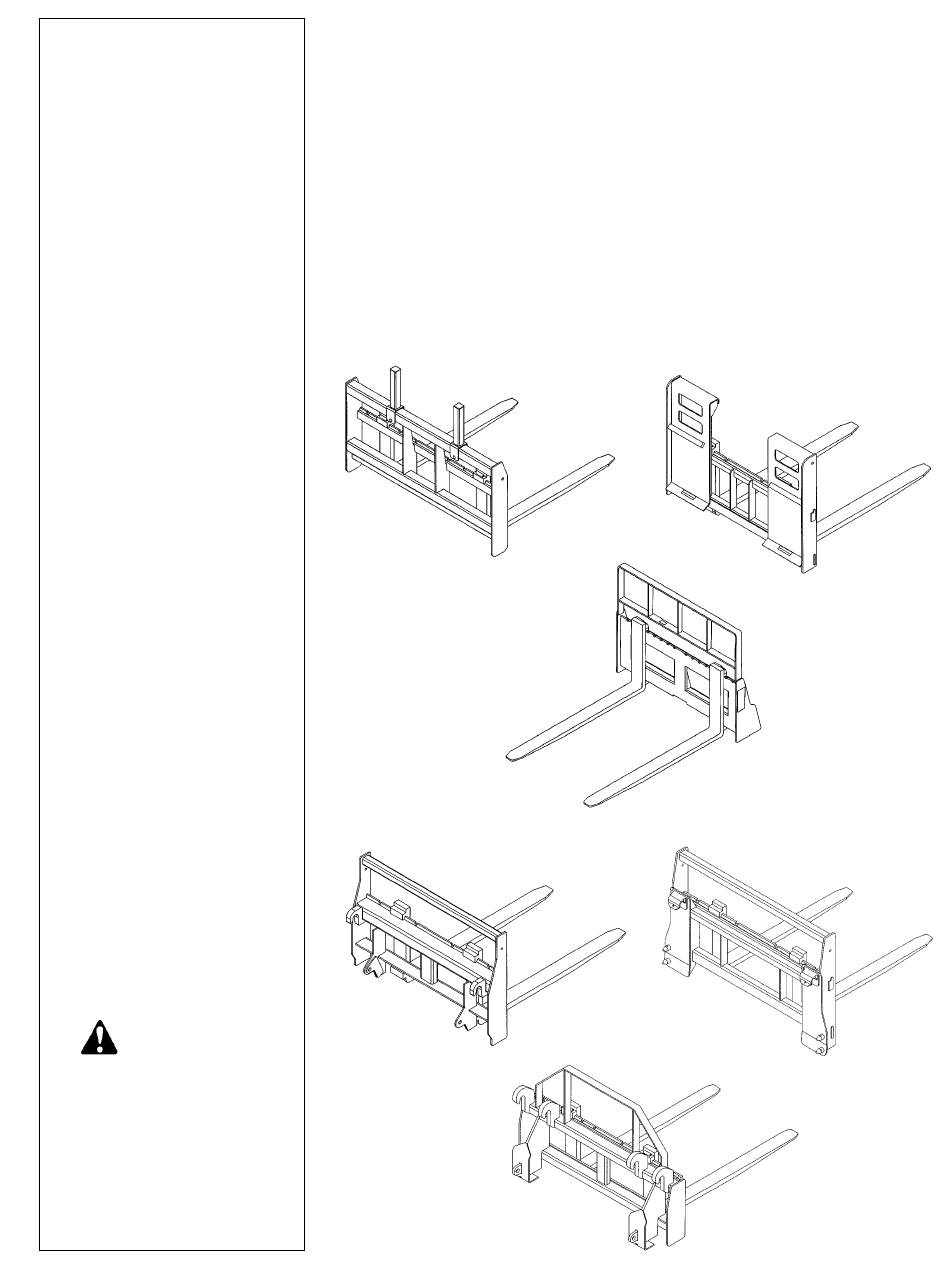

- Page 1 PALLET FORK OWNER’S / OPERATOR’S FOR SKID STEER MANUAL TRACTOR FRONT LOADERS MODEL NO.’s PF-448 Safety Instructions Assembly & Mounting SSPF-3748 Tractor Preparation Maintenance SSPF-3755 Operating Instructions Repair Parts SSPF-3760 SSPF-442/448/5548/5560 SSPF-442 SSPF-448 SSPF-5548 SSPF-5560 PF-448 GLPF-442 GLPF-448 GLPF-5548 SSPF-3748/3755/3760...
- Page 2 Like all mechanical products, it will require cleaning and upkeep. Use only genuine Worksaver, Inc. service parts. Substitute parts will void the warranty and may not meet stan- dards required for safe and satisfactory operation. Record the model and serial number of your Pallet Fork here: Model:________________________________________ Serial Number:_______________________________ RETAIL CUSTOMER’S RESPONSIBILITY...
- Page 3 2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judgement of Worksaver such use affects its performance, stability, or reliability.
- Page 4 To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. BEFORE YOU START!! Read the safety messages on the implement and shown in your manual.
- Page 5 SAFETY INSTRUCTIONS (continued) EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
- Page 6 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY Start prime mover only when properly seated in the operator’s seat. Starting a prime mover in gear can result in injury or death. Do not mount or dismount while the prime mover is moving. Mount or dismount only when the prime mover and all moving parts are completely stopped.
- Page 7 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Do not allow children or others to ride on the power unit with an operator. Riders are subject to injury such as being struck by foreign objects or being thrown off. Riders obstruct the operator’s view resulting in unsafe oper- ation.
- Page 8 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Be certain the power unit is in neutral or park position before starting engine. Always shut off power unit and shift to “Park” or set brakes when leaving unit. Always lower bucket or attachment to ground, relieve all hydraulic pressure. Remove key when leaving equipment unattended. Park in level area.
- Page 9 SAFETY INSTRUCTIONS (continued) TRANSPORT SAFETY Comply with state and local laws governing highway safety and movement of farm machinery on public roads. The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use. Local laws should be checked for all highway lighting and marking requirements. When driving the tractor and equipment on the road or highway under 20 mph (32 kph) at night or during the day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem.
- Page 10 SAFETY INSTRUCTIONS (continued) MAINTENANCE SAFETY Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Before working on this machine, drive to a level area, disengage the PTO, lower implement or loader (or if working underneath, raise and block securely), shut off the engine, relieve all hydraulic pressure, set the brakes, and remove the ignition keys.
- Page 11 SAFETY INSTRUCTIONS (continued) STORAGE SAFETY Following operation or when unhooking, stop the tractor, set the brakes, shut off the engine, relieve all hydraulic pressure and remove the ignition keys. Store the unit in an area away from human activity. Do not permit children to play on or around the stored unit. Do not park equipment where it will be exposed to livestock for long periods of time.
- Page 12 SAFETY SIGNS BE CAREFUL! Use a clean, damp cloth to clean safety decals. Avoid spraying too close to decals when using a pres- sure washer; high-pressure water can enter through very small scratches or under edges of decals causing them to peel or come off. REMEMBER: If Safety Signs have been dam- aged, removed, become illegible or...
- Page 13 4,000# 48” tires to the proper recommended air pressure. SSPF-3748 4,000# 48” When lifting loads with a tractor front loader, it is always SSPF-3755 5,500# 48” best to have a heavy implement or weight box connected SSPF-3760 5,500# 60” to the rear 3 pt. hitch.
- Page 14 INSTRUCTIONS (continued) ASSEMBLY – TRACTOR LOADERS For first time installation, read the instructions for mounting your pallet fork attachment on your front loader PIN ON ATTACHMENT —————————————————— or skid steer. (See pages 13-16.) Preview the assembly instructions and the exploded Remove the bucket from your front end loader.
- Page 15 4,000 lbs. The Models These two models are designed for the John Deere SSPF-5548/5560 and SSPF-3755/3760 are rated for H480 loader. The Model JDPF-H48048 has 48" long fork loads up to 5,500 lbs. These models are for the standard tines and the Model JDPF-H48060 has 60"...
- Page 16 INSTRUCTIONS (continued) MODELS SSPF-442/448 & SSPF-3748/3755/3760 ATTACHMENT TO PRIME MOVER —————————————————— WARNING Improper attachment of the Pallet Fork could result in injury or death. Do not operate this product until you have positive indication that the attachment is securely mounted. Figure 3.
- Page 17 INSTRUCTIONS (continued) 4. Raise loader and retract tilt cylinders until latch MODELS GLPF-442/448/5548/5560 closes. ATTACHMENT TO PRIME MOVER —————————————————— 5. Lower attachment and shut off engine. Installation is The Models GLPF-442, GLPF-448, GLPF-5548, and GLPF-5560 are specifically designed for tractor front now complete.
- Page 18 INSTRUCTIONS (continued) MODELS JDPF-5442/5448/5460 ATTACHMENT TO PRIME MOVER —————————————————— The Pallet Fork Models JDPF-5442, JDPF-5448, and JDPF-5460 are specifically designed for John Deere 400 and 500 series loaders. They are rated for loads up to 4,000 lbs. Note that the JDPF-5460 forks are rated above the loader capacity.
- Page 19 INSTRUCTIONS (continued) MODEL JDPF-6748/6760 ATTACHMENT TO PRIME MOVER —————————————————— The Model JDPF-6748 and JDPF-6760 Pallet Forks are specifically designed for John Deere 600 and 700 series loaders with quik-change latches. It has a load rating of up to 5,500 lbs. NOTE: Procedure is the same for all attachments.
- Page 20 OPERATING INSTRUCTIONS OPERATION WARNING —————————————————— ■ ■ Rear ballast is required to ensure 25% of gross vehicle weight is transferred to the rear axle. Safety is a primary concern in the design and manufacture of our products. Unfortunately, our Attachment and load must be included as weight. efforts to provide safe equipment can be wiped out Adequate rear weights are required to counterbal- by an operator’s single careless act.
- Page 21 OPERATING INSTRUCTIONS (continued) OPERATION TRANSPORTING (continued) —————————————————— —————————————————— CAUTION WARNING When traveling on public roads, whether at night or Operate up and down slopes with the heavy end of during the day, use accessory light and devices for the machine uphill. Carrying a load with the pallet adequate warnings to operators of other vehicles.
- Page 22 MODEL PF-448 PARTS LIST...
- Page 23 MODELS SSPF-442, SSPF-448, SSPF-5548 & SSPF-5560 PARTS LIST...
- Page 24 MODELS SSPF-3748, SSPF-3755 & SSPF-3760 PARTS LIST...
- Page 25 MODELS GLPF-442, GLPF-448, GLPF-5448 & GLPF-5560 PARTS LIST...
- Page 26 MODELS JDPF-5442, JDPF-5448 & JDPF-5460 PARTS LIST...
- Page 27 MODEL JDPF-6748 & JDPF-6760 PARTS LIST...
- Page 28 MODELS JDPF-H48048 & JDPF-H48060 PARTS LIST...
- Page 29 NOTES...
- Page 30 Please work, drive, play, and live each day with care JDPF-5448/5460 and concern for your safety and that of your family and JDPF-6748/6760 fellow citizens. JDPF-H48048 JDPF-H48060 JULY 2019 WORKSAVER, INC. P.O. BOX 100 LITCHFIELD, IL 62056-0100 (217) 324-5973 WEB: http:// www.worksaver.com E-MAIL: sales@worksaver.com WS-PF001-OG...
