Worksaver PALLET FORK PF-448 Operator's Manual

Tractor front loader pallet fork
Hide thumbs

Advertisement

OWNER'S /
OPERATOR'S
MANUAL
MODEL NO.
PF-448
CAUTION
For Safe Operation
Read Rules And
Instructions Carefully
SINO LEEINGLES, PIDA AYUDA
A AIGUIEN QUE SI LO LEA
PARA QUE LE TRADUZCA LAS
MEDIDAS DE SEGURIDAD.
THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD
1. Select an area for assembly that is clean and free of any
debris which might cause persons working on the
assembly to trip.
2. Do not lift heavy parts or assemblies. Use crane, jack,
tackle, fork trucks or other mechanical devices.
3. Preview the assembly instructions in your operator's
manual before proceeding further.
4. If the assembly instructions call for parts or assemblies to
be blocked up, use only blocking material that is in good
condition and is capable of handling the weight of the
assembly to be blocked. Also insure that the blocking
material is on a clean, dry surface.
5. Never put hands, or any part of body, under blocked up
assemblies if at all possible.
TRACTOR FRONT LOADER
Safety Instructions
Tractor Preparation
Operating Instructions
CAUTION
BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE
PALLET FORK
Assembly & Mounting
Maintenance
Repair Parts
6. After completing assembly, thoroughly inspect the
machine to be sure that all nuts, bolts, hydraulic fittings
or any other fastened assemblies have been thoroughly
tightened.
7. Before operating the machine, thoroughly read the
operation section of your operator's manual.
8. Before operating, read the maintenance section of your
operator's manual to be sure that any parts requiring
lubrication, such as gearboxes, are full, to avoid any
possible damage.
9. Before operating equipment – If you have any
questions regarding the proper assembly or
operation, contact your dealer or representative.

Advertisement

loading

  Related Manuals for Worksaver PALLET FORK PF-448

No related manuals

  Summary of Contents for Worksaver PALLET FORK PF-448

  • Page 1 OWNER’S / OPERATOR’S MANUAL MODEL NO. PF-448 CAUTION For Safe Operation Read Rules And Instructions Carefully SINO LEEINGLES, PIDA AYUDA A AIGUIEN QUE SI LO LEA PARA QUE LE TRADUZCA LAS MEDIDAS DE SEGURIDAD. THE FOLLOWING SAFETY PRECAUTIONS SHOULD BE THOROUGHLY UNDERSTOOD BEFORE ATTEMPTING TO BEGIN ASSEMBLING THIS MACHINE 1.
  • Page 2: Retail Customer's Responsibility

    Like all mechanical products, it will require cleaning and upkeep. Use only genuine Worksaver, Inc. service parts. Substitute parts will void the warranty and may not meet stan- dards required for safe and satisfactory operation. Record the model and serial number of your Loader Fork here: Model:________________________________________ Serial Number:_______________________________ RETAIL CUSTOMER’S RESPONSIBILITY...
  • Page 3: Limited Warranty

    2. If the unit has been subjected to misapplication, abuse, misuse, negligence, fire or other accident. 3. If parts not made or supplied by Worksaver have been used in connection with the unit, if, in sole judgement of Worksaver such use affects its performance, stability, or reliability.
  • Page 4: Important Safety Information

    To the Owner/Operator/Dealer All implements with moving parts are potentially hazardous. There is no substitute for a cautious, safe-minded opera- tor who recognizes the potential hazards and follows reasonable safety practices. The manufacturer has designed this implement to be used with all its safety equipment properly attached to minimize the chance of accidents. Read the safety messages on the implement and shown in your manual.
  • Page 5: Safety Instructions

    SAFETY INSTRUCTIONS (continued) EQUIPMENT SAFETY GUIDELINES Safety of the operator is one of the main concerns in designing and developing a new piece of equipment. Designers and manufacturers build in as many safety features as possible. However, every year many accidents occur which could have been avoided by a few seconds of thought and a more careful approach to handling equipment.
  • Page 6 SAFETY INSTRUCTIONS SAFETY TRAINING Safety is a primary concern in the design and manufacture of our products. Unfortunately, our efforts to pro- vide safe equipment can be wiped out by a single careless act of an operator. In addition to the design and configuration of equipment, hazard control and accident prevention are dependent upon the awareness, concern, prudence and proper training of personnel involved in the operation, transport, maintenance and storage of equipment.
  • Page 7 SAFETY INSTRUCTIONS SAFETY SIGNS Keep safety signs clean and legible at all times. Replace safety signs that are missing or have become illegible. Replaced parts that displayed a safety sign should also display the current sign. Safety signs are available from your Distributor or Dealer Parts Department or the factory. How to Install Safety Signs: Be sure that the installation area is clean and dry.
  • Page 8: Operational Safety

    SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY The use of this equipment is subject to certain hazards which cannot be protected against by mechanical means or product design. All operators of this equipment must read and understand this entire manual, pay- ing particular attention to safety and operating instructions, prior to using. If there is something in this manu- al you do not understand, ask your supervisor, or your dealer, to explain it to you.
  • Page 9 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) Before you operate any equipment, check over all pins, bolts and connections to be sure all are securely in place. Replace any damaged or worn parts immediately. Do not work under a raised loader unless it is securely blocked or held in position. Do not depend on the power unit hydraulic system to hold the implement in place.
  • Page 10 SAFETY INSTRUCTIONS (continued) OPERATIONAL SAFETY (continued) When maneuvering close to buildings or passing through narrow areas, be sure to allow sufficient clearance for the power unit, loader, and load. Drive slowly. Operate loader from operator’s seat only. Remain at controls until operating cycle is complete. Use extreme care when working on inclines and hillsides.
  • Page 11 SAFETY INSTRUCTIONS (continued) TRANSPORT SAFETY Comply with state and local laws governing highway safety and movement of farm machinery on public roads. The use of flashing amber lights is acceptable in most localities. However, some localities prohibit their use. Local laws should be checked for all highway lighting and marking requirements. When driving the tractor and equipment on the road or highway under 20 mph (32 kph) at night or during the day, use flashing amber warning lights and a slow moving vehicle (SMV) identification emblem.
  • Page 12: Maintenance Safety

    SAFETY INSTRUCTIONS (continued) MAINTENANCE SAFETY Good maintenance is your responsibility. Poor maintenance is an invitation to trouble. Follow good shop practices. - Keep service area clean and dry. - Be sure electrical outlets and tools are properly grounded. - Use adequate light for the job at hand. Make sure there is plenty of ventilation.
  • Page 13: Storage Safety

    SAFETY INSTRUCTIONS MAINTENANCE SAFETY (continued) After servicing, be sure all tools, parts and service equipment are removed. Check to ensure all safety signs are installed and in good condition. (See safety sign section for location drawing.) Do not allow grease or oil to build up on any deck or platform. Never replace hex bolts with less than grade five bolts unless otherwise specified, i.e.
  • Page 14: Safety Signs

    SAFETY INFORMATION When working on side hills, DO NOT RAISE LOADER TOO HIGH. Keep an eye on terrain changes. Keep load low. SAFETY SIGNS REPLACE SAFETY DECALS IF DAMAGED OR MISSING! Safety is a primary concern in the design and manufacture of our products.

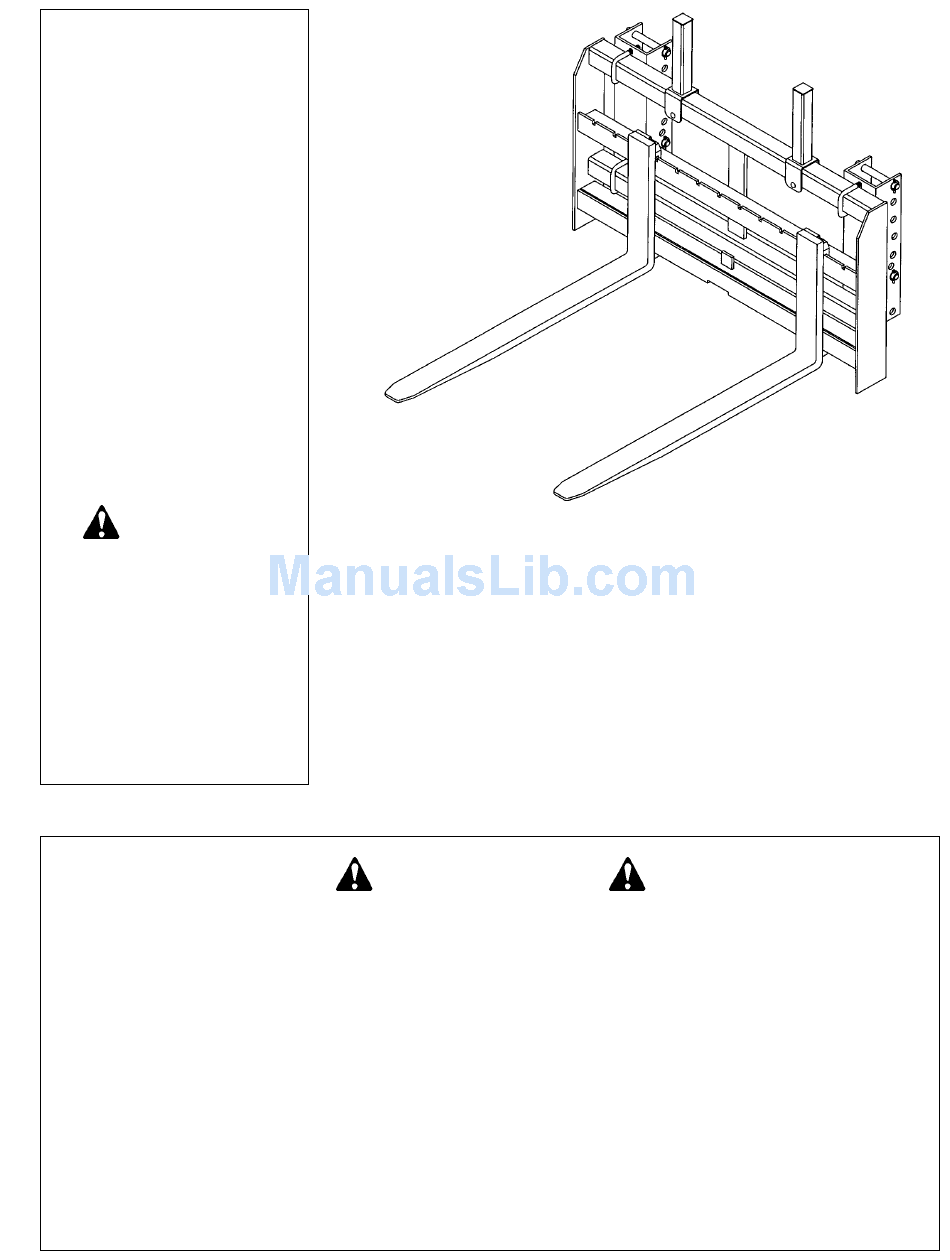

  • Page 15 The Universal Pallet Fork attachment is designed to fit most farm tractor double-cylinder front-end loaders. Optional brackets are available to fit some popular quick coupler front-end loaders. The Universal Pallet Fork will also work on the rear of tractors with a Category II 3 pt. hitch. The model PF-448 with 48”...
  • Page 16: Pre-Operation Checklist

    INSTRUCTIONS ASSEMBLY (continued) —————————————————— Remove the bucket from your front end loader. Check your loader to make sure it is in good working order. Check all frame mounting bolts to make sure they are tight. Loaders that attach to the tractor frame rails should have a cross-tie installed for stability.
  • Page 17: Operation

    OPERATING INSTRUCTIONS OPERATION —————————————————— Be sure tractor or skid steer is properly counter- balanced with weights before attempting to lift any load. Make sure fork latch is properly engaged. Using the bucket tilt cylinders, adjust the angle of the fork tines so they are parallel with the ground. Adjust height of fork tines to enter the pallet to be handled.
  • Page 18: Owner Service

    OWNER SERVICE MAINTENANCE —————————————————— WARNING! Always stop the tractor or skid steer, set brake, shut off engine, remove key, and lower loader to ground before attempting to service. Never leave equipment unattended with engine running. WARNING! Do not work under a raised loader unless it is securely blocked or held in position.
  • Page 19 MODEL PF-448 PARTS LIST...
  • Page 20: Safety Precautions

    Please work, drive, play, and live each day with care and concern for your safety and that of your family and fellow citizens. MAKE EVERY DAY A HOLIDAY FROM ACCIDENTS! WORKSAVER, INC. P.O. BOX 100 LITCHFIELD, IL 62056-0100 WEB: http:// www.worksaver.com (217) 324-5973 E-MAIL: sales@worksaver.com...
