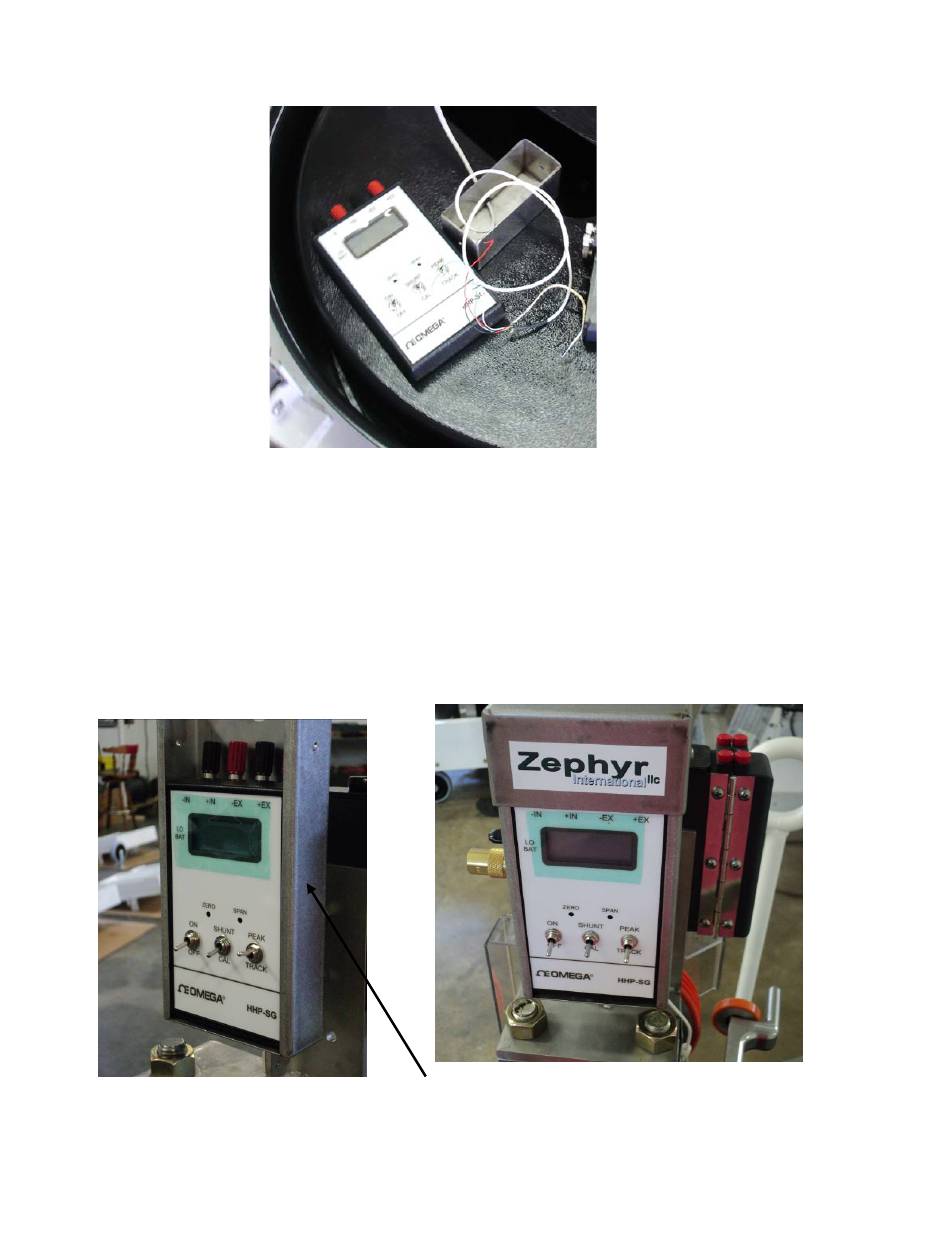

Thread the load cell wire through the cap for the load indicator holder and press the small grommet
into the hole in the cap.
Install the 9 volt battery.
Attach the wires to the load cell indicator as follows:
Red wire = + Ex on meter
Black wire = -Ex on meter
Green wire = +In on meter
White wire = -In on meter
Insert the load cell indicator into the holder. Wrap the excess wires up and stow them under the cover
and install the two screws.
