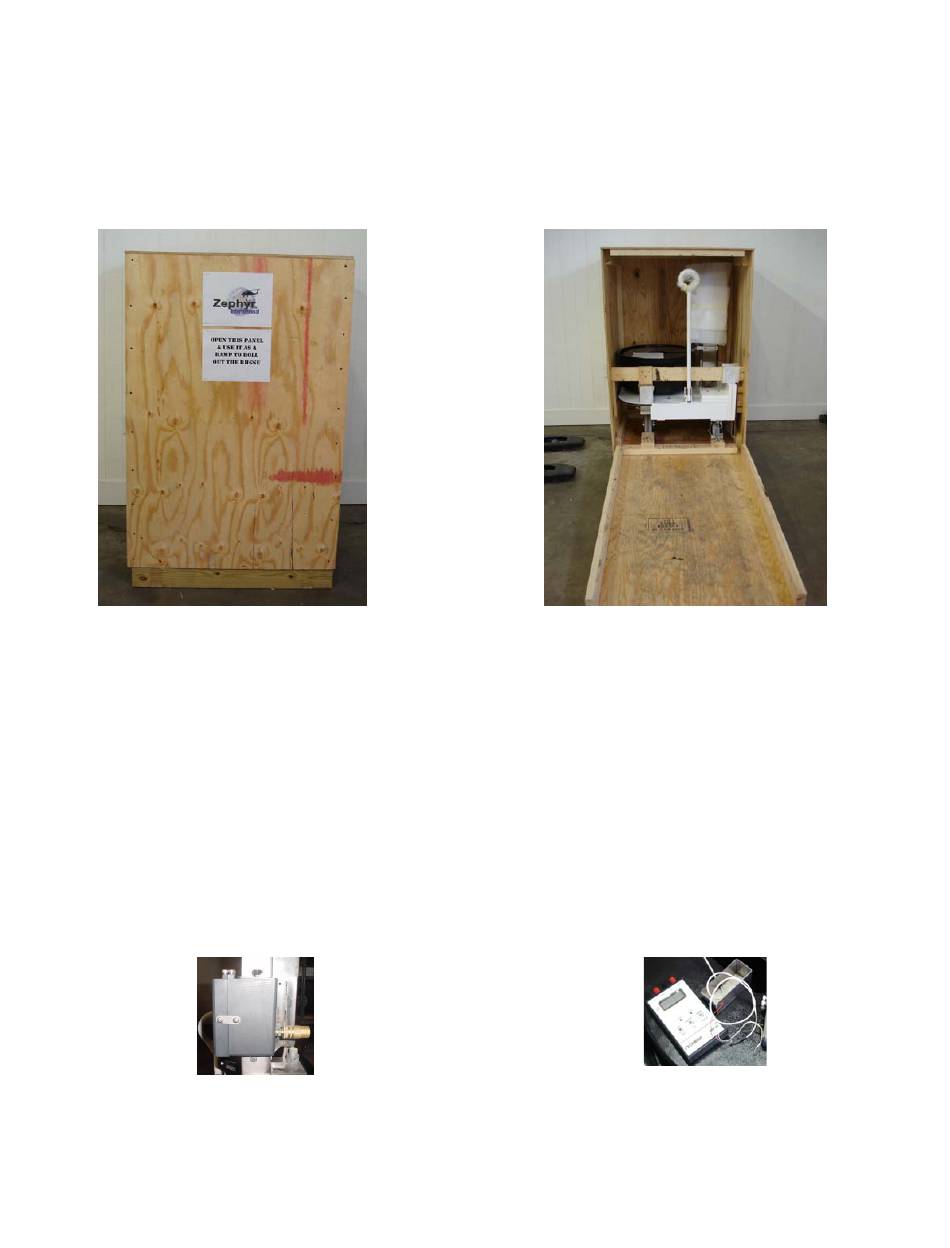

3.0) Unpacking the Equipment

The equipment is shipped in a sturdy plywood box specifically designed to transport and store
the RHGSE.
The box is designed to be opened by removing the screws that are marked "R" and using the
front cover as a ramp.
Remove the screws that hold the wheel chock blocks.
Pull the pin and using the handle, pull the RHGSE out of the box and down the ramp. Check to
insure the wheel locks are unlocked as soon as the swiveling wheels clear the box.
Unlock the swivel locks in order to freely move the RHGSE around.
Remove and unpack the Lubridryer upright bracket, and the can of Lubridryer pads.

4.0) Setup the Equipment

Remove the lubridryer, load indicator , load indicator holder from the Rotatub and unpack.
Lubridryer
Zephyr International llc Page 4 of 40
ZOM-11000-2 v2 rev E
Load indicator
