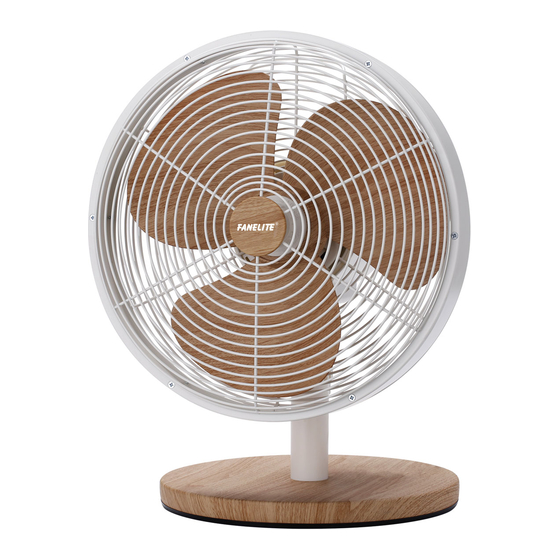

Fanelite ZF-12181D User Manual, Installing And Operating Manual

Fanelite ZF-12181D User Manual, Installing And Operating Manual

Advertisement

Available languages

Available languages

Quick Links

MODE D'EMPLOI - NOTICE DE
MONTAGE, D'INSTALLATION ET
D'UTILISATION
REFERENCE : ZF-12181D (ZF-12181D-II)
USER MANUAL – INSTALLING AND
OPERATING MANUAL
FANELITE vous remercie d'avoir choisi ce produit. Ce produit très
innovant et très design a été conçu pour vous assurer un
maximum de confort et de sécurité. Veuillez lire attentivement
cette notice avant d'utiliser votre appareil et conservez là
soigneusement pour référence ultérieure. Pour une utilisation
correcte et en toute sécurité, veillez à bien lire les consignes de
sécurité.
FANELITE thanks you for choosing this product. This very innovative
and very design product has been designed to ensure maximum
comfort and safety. Please read this manual carefully before using your
appliance and keep it there for future reference. For correct and safe
use, be sure to read the safety instructions.
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the ZF-12181D and is the answer not in the manual?

Questions and answers

Summary of Contents for Fanelite ZF-12181D

  • Page 1 REFERENCE : ZF-12181D (ZF-12181D-II) USER MANUAL – INSTALLING AND OPERATING MANUAL FANELITE vous remercie d’avoir choisi ce produit. Ce produit très innovant et très design a été conçu pour vous assurer un maximum de confort et de sécurité. Veuillez lire attentivement cette notice avant d’utiliser votre appareil et conservez là...
  • Page 2 TABLE DES MATIERES 1. CONSIGNES DE SECURITE 2. GARANTIE 3. DESCRIPTION 4. ASSEMBLAGE / MONTAGE 5. UTILISATION 6. NETTOYAGE ET ENTRETIEN 7. SPECIFICATIONS TECHNIQUES 8. PROTECTION DE L’ENVIRONNEMENT 9. INFORMATION COMPLEMENTAIRE 1. CONSIGNES DE SECURITE Veuillez lire attentivement cette notice avant la première utilisation de l’appareil.
  • Page 3 De par sa construction cet appareil n’est pas prévu pour une utilisation à l’extérieur, usage intérieur uniquement. Retirez tous les éléments de l’emballage et retirez les rubans adhésifs empêchant le fonctionnement de l’appareil avant utilisation. Assemblez entièrement l’appareil avant de l’utiliser. Les connexions électriques doivent être faites selon les normes en vigueur et par un électricien qualifié.
  • Page 4 ont été appréhendés. Les enfants ne doivent pas jouer avec l’appareil. Le nettoyage et l’entretien par l’usager ne doivent pas être effectués par des enfants sans surveillance. Ne laissez jamais d’enfant à proximité de l’appareil sans surveillance ni des personnes handicapées. Ne laissez pas les enfants jouer avec les sachets en polyéthylène film...
  • Page 5 N’utilisez jamais l’appareil sans grilles protection. Une fois l’appareil assemblé, strictement interdit de démonter les grilles de protection. N’introduisez jamais vos mains et/ou objets dans les grilles de protection. Evitez tout contact avec les pièces mobiles. N’utilisez pas d’eau ni de détergent pour le nettoyage de l’appareil.
  • Page 6 L’appareil doit être utilisé dans emplacements où la présence de vapeurs inflammables ou de poussières explosives est probable. Inspectez rigoureusement l’appareil et ne l’utilisez pas s’il est endommagé ou si vous voyez une quelconque détérioration. N’utilisez appareil s’il présente dysfonctionnement ou si son cordon d’alimentation ou sa fiche est endommagé.
  • Page 7 FANELITE se réserve le droit de ne pas appliquer la garantie en cas de négligence du client, d’installations défectueuses, mal adaptées ou non conformes aux normes en vigueur.
  • Page 8 - Une modification ou réparation du produit non effectuée par un professionnel qualifié - Utilisation de pièces et accessoires non compatible avec le produit ou défectueux - Détériorations immédiates ou différées consécutives à une mauvaise manutention au cours du transport, à une fausse manœuvre, chute, choc, à...
  • Page 9 4. ASSEMBLAGE / MONTAGE ATTENTION : Avant d’assembler votre ventilateur, lisez scrupuleusement les consignes de sécurité présentes dans cette notice. 1. Retirez l’écrou d’assemblage (14) en bas du tube, installez le tube correctement dans le trou central de la base (13) puis remettez et serrez l’écrou d’assemblage (14).
  • Page 10 6. Si nécessaire retirez les vis de sécurité (1). Placez la grille avant (2) correctement sur la grille arrière (6) en prenant soin de mettre le logo Fanelite à l’horizontal. Une fois la grille avant correctement positionnée, remettez et serrez les vis de sécurité (1) pour sécuriser l’assemblage.
  • Page 11 Pour régler l’angle de la tête du ventilateur de haut en bas, il suffit juste de faire monter ou descendre la tête du ventilateur manuellement dans la position désirée. ATTENTION : faire uniquement lorsque le ventilateur est arrêté et lorsque la prise est débranchée du secteur. Ne jamais forcer pour ne endommager...
  • Page 12 7. SPECIFICATIONS TECHNIQUES Référence : ZF-12181D (ZF-12181D-II) Alimentation : 220-240 V~ 50/60 Hz Classe de protection : II Dimensions emballage : 36 x 15,5 x 47 cm Poids brut : 3,5 kg Poids net : 2,9 kg Puissance : 45 Watts Diamètre : 30 cm...
  • Page 13 Vous souhaitez nous contacter par e-mail : contact@fanelite.com Vous souhaitez nous contacter par téléphone : (+590) 590 29 44 64 Vous pouvez aussi nous contacter à l’aide des formulaires de contact de nos sites internet. Importé et distribué par LOGIFAN SARL 45 Zac de Hope Estate, 97150 Saint-Martin FWI Imprimé...
  • Page 14: Table Of Contents

    TABLE OF CONTENTS 1. IMPORTANT SAFETY INSTRUCTIONS 2. GUARANTEE 3. DESCRIPTION 4. ASSEMBLY 5. OPERATING INSTRUCTIONS 6. CLEANING AND MAINTENANCE 7. TECHNICAL SPECIFICATIONS 8. ENVIRONMENT PROTECTION 9. ADDITIONAL INFORMATION 1. IMPORTANT SAFETY INSTRUCTIONS Please read these instructions carefully before using the appliance for the first time.
  • Page 15 Due to its construction this device is not intended for outdoor use, indoor use only. Remove all items from the package and remove the adhesive tapes preventing operation of the appliance before use. Assemble the appliance completely before using it. Electrical connections must be made in accordance with current regulations and by a qualified electrician.
  • Page 16 appliance in a safe way and understand the hazards involved. Keep the appliance and its cord out of reach of children aged less than 8 years. Cleaning and user maintenance shall not be made by children without supervision. Children must not play with the appliance. Never leave unattended children near the appliance or persons with disabilities.
  • Page 17 Once assembled, it is strictly forbidden to disassemble the protective grilles. Never put your hands and / or objects into the protective grilles. Avoid contact with moving parts. Do not use water or detergent to clean the appliance. A dry cloth will be preferable. Before cleaning, be sure to switch off the power supply.
  • Page 18 If not used, turn off the appliance and disconnect it from the AC power. Carry the appliance in its original packaging. This appliance complies with current European safety standards. Use only FANELITE spare parts. Any intervention on the appliance by an unqualified person is prohibited.
  • Page 19: Guarantee

    2. GUARANTEE Contact your distributor to find out its guarantee terms. All FANELITE appliances are guaranteed against manufacturing and parts defects insofar as they are working under normal operating conditions. Our appliances must be installed by qualified professionals in accordance with the regulations in force and the instructions given in these operating and assembly instructions.
  • Page 20: Description

    Whether with respect to the purchaser, installer or any other person, our company can not under any circumstances be held liable for any physical or material damage of any kind whatsoever, which may be caused by our products or which would be the direct or indirect consequence of the use of our products.
  • Page 21: Assembly

    6. If needed loosen and remove the safety screw (1). Place the front grill (2) properly on the rear grill (6) by making sure that the logo Fanelite on the central stud is placed horizontally. Once the front grill is properly installed, reput and retighten the safety screws (1) to secure the assembly.
  • Page 22: Cleaning And Maintenance

    Power ON / OFF and speeds Rotate the switch knob (9) to turn on /off the fan and set the speed : 0 : OFF 1 : Low speed 2 : Medium speed 3 : High speed Oscillation Push the oscillation knob (8) to activate the oscillation. Pull the oscillation knob (8) to deactivate the oscillation.
  • Page 23: Technical Specifications

    Do not use water or detergent to clean the appliance. Use a soft, dry cloth. 7. TECHNICAL SPECIFICATIONS Reference : ZF-12181D (ZF-12181D-II) Power source : 220-240 V~ 50/60 Hz Protection class : II Packaging dimensions : 36 x 15,5 x 47 cm...
  • Page 24: Additional Information

    9. ADDITIONAL INFORMATION This manual is available online on our website www.fanelite.com You want to contact us by email : contact@fanelite.com You want to contact us by phone : (+590) 590 29 44 64 You can also contact us by using the contact form of our websites.
  • Page 26 www.fanelite.com...
