Best.-Nr. 022-1400 (ARF)

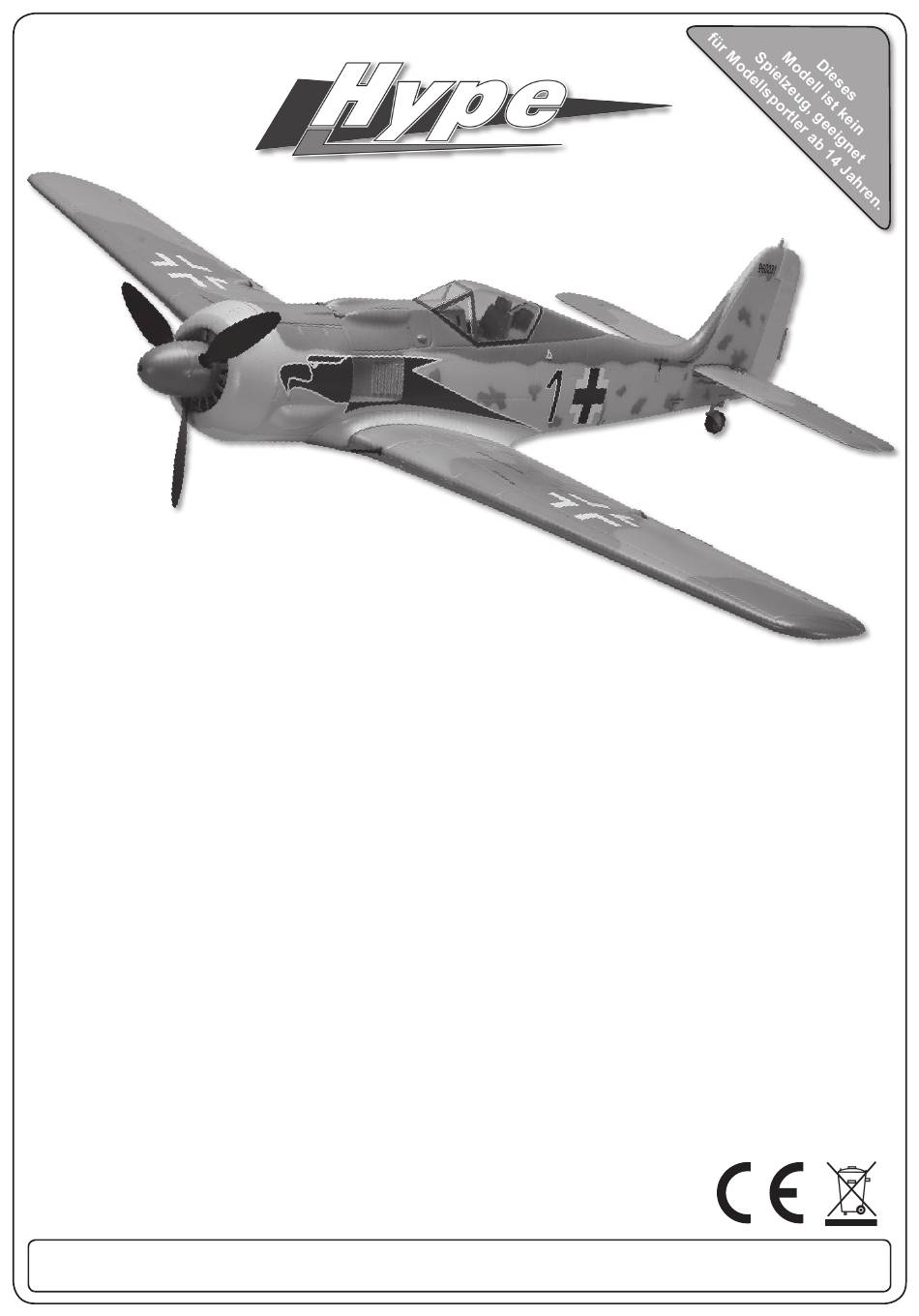

FOCKE WULF FW-190
Die Focke-Wulf FW-190 gilt als eines der besten deutschen Jagdflugzeuge im Zweiten Weltkrieg. Der Prototyp
machte seinen Erstflug am 1. Juni 1939. Trotz einiges Misstrauens des Reichsluftfahrtministeriums in Bezug auf
luftgekühlte Sternmotoren, wurde der BMW 139 14-Zylinder-Doppelstern-Motor in den ersten Prototypen sehr
erfolgreichen Flugversuchen unterzogen. Ab August 1941 wurde die FW-190 bei ersten Einsätzen über England
gesichtet. Unser Modell der Focke Wulf FW-190 gehört zweifellos zu den gelungensten Nachbauten dieses Flug-
zeugtyps. Neben funktionsfähigen Landeklappen, die vorbildgetreu als Spreizklappen ausgeführt sind, verfügt die
Hype FW-190 über ein fertig eingebautes Einziehfahrwerk. Das Modell ist in geschäumter Bauweise aufgebaut.
Dabei kommt der besonders leichte und haltbare Werkstoff HypoDur
gezeigten Tarnmuster lackiert. Das mehrfarbige Dekor ist bereits auf Rumpf, Tragfläche und Leitwerk aufgebracht.
Der Brushless-Direktantrieb mit vorbildgetreuer Dreiblattluftschraube, wird von einem 3s-LiPo-Akku versorgt und
verleiht dem Modell ein kraftvolles Flugbild. Damit setzt sich das Modell auch bei windiger Wetterlage eindrucksvoll
in Szene und verfügt über eine vorbildgetreue Flugperformance.
The Focke Wulf FW-190 was one of the best German fighter planes in World War II. Our FW-190 is undoubtedly
one of the most successful imitations of this aircraft type. In addition to functioning flaps, which are designed as split
flaps, the pursuit plane has a built-in full functional retractable landing gear. The model is made of the innovative
light weight and strong foam material HypoDur
by hard landings. All parts are painted in the shown camouflage pattern, the decals are already attached to the
fuselage, wing and stabilizer. The efficient brushless direct drive with a scale three-blade propeller is powered by
a 3s LiPo battery and gives the model a powerful flight performance. The kit contents 5 micro servos, brushless
motor and speed controller.
Focke Wulf FW-190 è stato uno dei caccia tedeschi migliori usati nella Seconda Guerra Mondiale. L'aeromodello
Hype FW-190 è senza dubbio una delle riproduzioni più riuscite di questo caccia. Oltre ad avere i flaps funzionanti
(sono disegnati come split flaps), Hype Focke FW-190 ha il carrello retrattile già montato. Il modello è realizzato
in un innovativo materiale espanso molto robusto denominato HypoDur
ma resistenza agli impatti, per esempio durante atterraggi bruschi. Tutte le parti sono già colorate con lo schema
mimetico, le decalcomanie sono già incollate sulla fusoliera, sull'ala e sul direzionale. L'efficiente motorizzazione
brushless diretta con elica tripala va alimentata da una batteria LIPO 3s, per una performance in volo molto potente.
Il modello viene fornito comprensivo di 5 servi micro, il motore BLS e il regolatore brushless.
Bauanleitung / Instruction Manual
manuale d'istruzione
Ein Qualitätsprodukt aus dem Hause
. This material features maximum resistance to impacts caused
®
Wichtiger Hinweis:
Bitte bewahren Sie diese Dokumentation für Ersatzteilbestellungen auf.
zum Einsatz. Alle Formteile sind fertig in dem
®
; questo materiale si distingue per massi-
®
Technische Daten
Spannweite: 1.135 mm; Länge: 998 mm; Gewicht
ca.: 1.150 g; Motor: Brushless; Akku: LiPo 11,1 V
/ 1.800 mAh; RC-Anlage: 6 Kanäle; Maßstab
ca.: 1:9
RC-Funktionen
Höhenruder, Seitenruder, Querruder, Motor,
Landeklappen, Einziehfahrwerk
Technical Data
Wingspan: 1.135 mm; Length: 998 mm; Weight
approx.: 1.150 g; Motor: Brushless; Battery: LiPo
11,1 V / 1.800 mAh; RC-System: 6 channels;
Scale approx.: 1:9
RC-Functions
Elevator, Rudder, Aileron, Motor, Flaps, Retrac-
table Landing Gear
Caratteristiche tecniche
apertura alare: 1.135 mm; lunghezza: 998 mm;
peso circa.: 1.150 g; motore: Brushless; batteria:
LiPo 11,1 V / 1.800 mAh; radiocomando: 6 canali;
scala circa.: 1:9
funzioni radio
piano di quota, direzionale, alettoni, motore, flaps,
carrello retrattile
