Efitment T013 User Manual

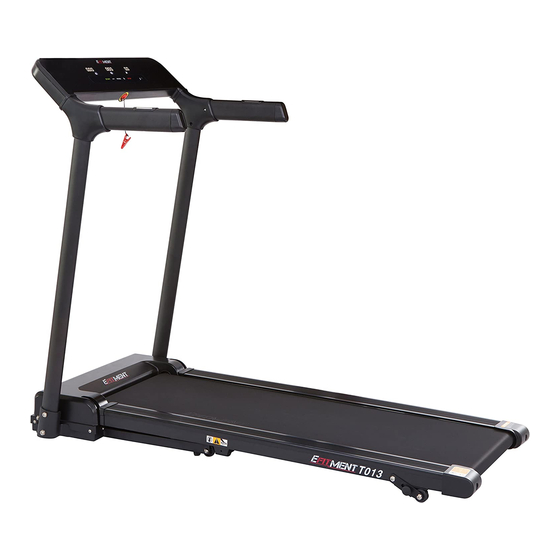

Treadmill with bluetooth
Hide thumbs Also See for T013:
Table of Contents

Advertisement

Quick Links

Download this manual
TREADMILL WITH BLUETOOTH
MODEL NO.:
T013
IMPORTANT!
Read all instructions
carefully before using
this product. Save this
manual
for
future
reference.
EXERCISE
EQUIPMENT
QUESTIONS:
Contact customer
service at
service@zoovaa.com
USER MANUAL

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the T013 and is the answer not in the manual?

Questions and answers

Related Manuals for Efitment T013

Summary of Contents for Efitment T013

  • Page 1 TREADMILL WITH BLUETOOTH MODEL NO.: T013 IMPORTANT! Read all instructions carefully before using this product. Save this manual future reference. EXERCISE EQUIPMENT QUESTIONS: Contact customer service at service@zoovaa.com USER MANUAL...

  • Page 2: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS At Efitment your safety is our top priority and to make sure both you and the unit remain in perfect working order, we encourage you to read all the instructions before assembling and using your new Efitment machine.

  • Page 3: Exploded Drawing

    EXPLODED DRAWING...

  • Page 4: Parts List

    PARTS LIST Description Qty. Description Qty. Base Frame Left End Cap Main Frame Right End Cap Computer Bracket Black Cushion φ30*φ6.2*10 Left Upright Tube Black Cushion φ30*φ6.5*32 Right Upright Tube Foot Pad Adjustable Board Ring Protecting Wire Plug Front Roller Power Wire Buckle Rear Roller Adjustable Rubber Pad...
  • Page 5 Flat Washer Φ8 Bolt M6*35 Bolt M6*25 Filter Screw ST4.2*19 Bolt M5*8 Bolt M5*12 AC Single Line Blue Bolt M5*8 AC Single Line Brown Screw ST4.2*55 Grounding Wire Screw ST4.2*12 Audio Module Fixing Cap Screw ST4.2*8 Audio Connecting Line Screw ST3.5*8 Screw ST2.9*6 Screw ST4.2*12 Speaker...

  • Page 6: Hardware Package

    HARDWARE PACKAGE...
  • Page 7 ASSEMBLY INSTRUCTIONS STEP 1: NOTE: We recommend having two people do the assembly. Open the carton and remove contents. Place the Main Frame (No. A02) on level ground, ensure that you have a work area that is clean and has adequate space. Do not cut the Packing Belt (No.
  • Page 8 ASSEMBLY INSTRUCTIONS STEP 3: Insert 2 Handrail Decorative Rings (No. C14) onto the tubes on Console (No. D01). Connect Upper Signal Wire (No. D07) to Middle Signal Wire (No. D08). Connect 2 Hand Pulse Lower Wires (No. D06) to two ends of Hand Pulse Upper Wire (No.
  • Page 9 ASSEMBLY INSTRUCTIONS STEP 5: Attach the Left Upright Tube Outside & Inside Covers (No. C09 & No. C11) to the Left Upright Tube (No. A04) using 2 Screws (No. E18). Use Spanner with Screwdriver (No. B07) to tighten. Repeat the step above to assemble the Right Upright Tube Outside &...
  • Page 10 ASSEMBLY INSTRUCTIONS STEP 6: You may cut the Packing Belt (No. F). Insert the Safety Key (No. D10) into the magnetic area of the Console (No. D01). The assembly is now complete! IMPORTANT NOTE! You will need to lubricate your treadmill before the first use.

  • Page 11: Lubricating The Treadmill

    LUBRICATING THE TREADMILL IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELT & TREADMILL LUBRICANT: Lubricating the Running Board (No. D15) and Running Belt (No. C23) is essential as the friction affects the life span and operations of the treadmill. Inspect the Running Board (No. D15) and Running Belt (No. C23) regularly.

  • Page 12: Maintenance And Care

    MAINTENANCE & CARE General cleaning will help to prolong the life and improve the performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Cleaning two exposed sides of the Running Belt (No. C23) will prevent dust from accumulating underneath the Running Belt (No. C23). Keep your running shoes clean so that dirt from your shoes does not wear out the Running Board (No.

  • Page 13: Folding Instructions

    FOLDING INSTRUCTIONS FOLDING: Place your hand at position “H” and lift up on the Main Frame (No. A02) until the Air Pressure Cylinder (No. B03) “K” locks into the tube. When the Air Pressure Cylinder (No. B03) successfully locks into the tube, you will hear a clicking sound.

  • Page 14: How To Move The Machine

    HOW TO MOVE THE MACHINE Before attempting to move the Before attempting to move the treadmill, make sure that it has treadmill, make sure that it has been properly folded. Unplug the been properly folded. Unplug the power wire. Power Wire (No. D18). To tilt, start by placing one hand at To tilt, start by placing one hand position “H”...

  • Page 15: Adjusting The Incline

    ADJUSTING THE INCLINE ATTENTION: For your safety and convenience, always fold the treadmill (as shown below) before attempting to adjust the incline. There are two holes located on the Adjustable Board (No. A06). To adjust the level of incline, remove the 2 Fixing Pins (No.

  • Page 16: Important Electrical Information

    IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before powering the equipment. Any power source above or below this level could cause significant damage to the equipment and/or user.

  • Page 17: The Display Console

    THE DISPLAY CONSOLE QUICK START: 1. Insert the magnetic end of the Safety Key (No. D10) into the console. Turn on the power switch. 2. Press the START button, and the system will automatically display a 3 seconds countdown. Once the countdown reaches zero, the running belt will start at the initial default speed of 0.5 MPH.
  • Page 18 THE DISPLAY CONSOLE PROGRAMS Initial Default Value Set Range Display Range TIME(MIN:SECOND) 0:00 15:00 5:00-99:00 0:00－99:59 SPEED(MPH) 0.5-7.5 0.5-7.5 DISTANCE(MILES) 0.00 1.00 0.50-99.9 0.00－99.9 PULSE(BPM) 50-200 CALORIE(KCAL) 10-999 0－999 FUNCTION KEYS: 1. START: To start the treadmill, insert the magnetic end of the Safety Key (No. D10) into the console and then press the START button.
  • Page 19 THE DISPLAY CONSOLE LUBRICATION REMINDER Your treadmill needs lubrication maintenance every 188 miles. The system will release a beeping sound every 10 seconds and display an “OIL” icon on your LCD display to remind you when it’s time. Please read the LUBRICATING THE TREADMILL on Page 10 to learn the proper steps to lubricate your treadmill.
  • Page 20 TREADMILL FUNCTIONS SAFETY LOCK FUNCTION: Removing the Safety Key (No. D10) from the Console (No. D01) while the treadmill is running will cause it to stop immediately. Once the treadmill reaches a full stop, the window display of the Console (No. D01) will show “- - -“...

  • Page 21: Exercise Instructions

    EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the treadmill properly.

  • Page 22: Troubleshooting

    TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in. Plug power cord into outlet. Treadmill will not start. Safety Key is not inserted. Insert Safety Key. Running belt tension is not Tighten the left and right adjusting Running belt is not centered. correct on the left or right bolts of the rear roller.
  • Page 23 Check motor wires to see if the motor is connected. If the wire has The motor wire is not been punctured or damaged, you E06: Motor Abnormality. connected or the motor is will need to replace it. If the damaged. problem is not rectified, you may need to replace the motor.
