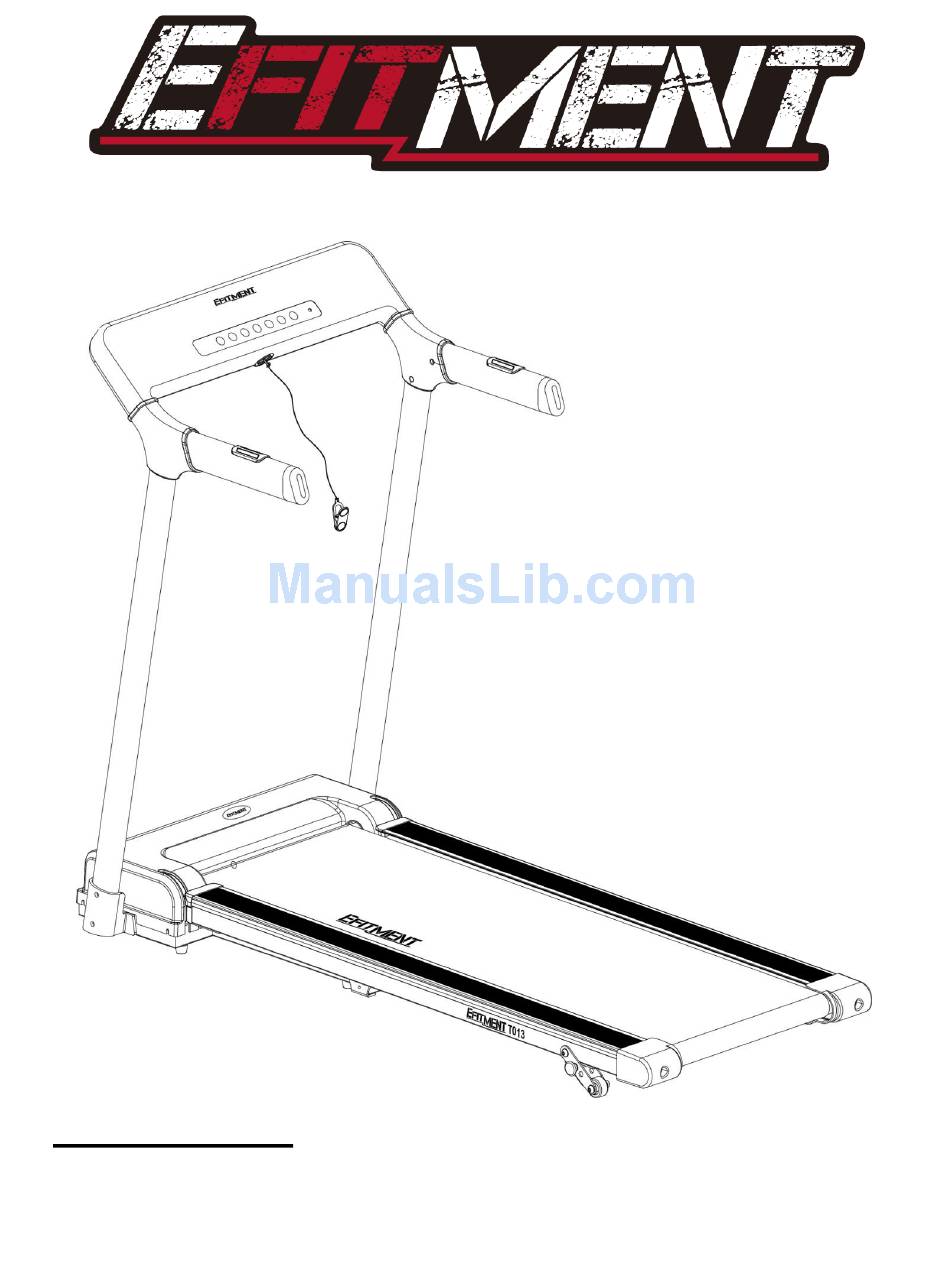

- Page 1 USER MANUAL T013 TREADMILL WITH BLUETOOTH IMPORTANT: Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: service@zoovaa.com...
-
Page 2: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precautions should always be followed, including the following: Read all instructions before using this treadmill. DANGER – To reduce the risk of electrical shock: 1. Always unplug this appliance from the electrical outlet immediately after using and before cleaning. -
Page 3: Important Safety Information
IMPORTANT SAFETY INFORMATION We thank you for choosing our product. It is important to read this entire manual before assembling and using the equipment. It is your responsibility to ensure that all users of the equipment are informed of all warnings and precautions. 1. -
Page 4: Important Note
IMPORTANT OPERATING INSTRUCTIONS 1. Insert the power plug directly into the socket. 2. Read the manual before operating the equipment. 3. Changes in speed do not occur immediately. Set your desired speed using the adjustment keys on the main console. The speed will increase gradually. 4. -
Page 5: Exploded Drawing
EXPLODED DRAWING... - Page 6 PARTS LIST Description Specification Description Specification Base Frame Hand Pulse Lower Wire 200MM Main Frame Upper Signal Wire Computer Bracket Middle Signal Wire Left Upright Lower Signal Wire Right Upright Safety Key Adjustable board DC Motor Front Roller AC Single Line Blue Rear Roller AC Single Line...
- Page 7 Screw Foam ST2.9*8.0 Motor Belt Spring Washer Left End Cap Flat Washer Right End Cap Filter Black Cushion Bolt M5*8 Black Cushion AC Single Line Blue Foot Pad AC Single Line Brown Ring Protecting Wire Plug Grounding Wire Power Wire Buckle Audio Module Fixing Cap Adjustable Rubber Pad Audio Connecting Line...
-
Page 8: Assembly Hardware
ASSEMBLY HARDWARE CARTON CONTENTS: Description Specification Qty Description Specification Qty Handrail Decorative Main Frame Ring Console Safety Key Left Upright Tube Bolt M8*30 Right Upright Tube Bolt M6*35 Spanner w/ screw driver S=13,14,15 Screw ST4.2*12 Allen wrench Spring Washer Left Upright Tube Outside Flat Washer Cover Right Upright Tube... - Page 9 ASSEMBLY INSTRUCTIONS STEP 1: Notice: We recommend having two people do the assembly. Open the carton and remove contents. Place Main Frame (No. A) on level ground, ensure that you have a work area that is clean and has adequate space. Do not cut the Packing Belt (No.
- Page 10 ASSEMBLY INSTRUCTIONS STEP 4: Fix the Console (No. B) to the Left & Right Upright Tubes (No. C and D) using 4 Bolts (No. E09). Tighten using Allen Wrench (No. B08). STEP 5: Fix the Left Upright Tube Outside & Inside Cover (No. C09 and C11) to the Left Upright Tubes (No.
- Page 11 ASSEMBLY INSTRUCTIONS STEP 6: The assembly is now complete! Now you can cut the Packing Belt (No. I). Insert the Safety Key (No. D10) into the magnetic area of the Console (No. B) IMPORTANT NOTE! You will need to lubricate your treadmill before the first use.
-
Page 12: Maintenance And Care
MAINTENANCE & CARE General cleaning will help prolong the life and performance of your treadmill. Keep the unit clean and maintained by dusting the components on a regular basis. Clean both sides of the running belt to prevent dust from accumulating underneath the belt. Keep your running shoes clean so that dirt from your shoes does not wear out the running board and belt. -
Page 13: Lubricating The Treadmill
LUBRICATING THE TREADMILL *IMPORTANT NOTE: You will need to lubricate your treadmill before the first use. RUNNING BELTS & TREADMILL LUBRICANT: Lubricating the running board and running belt is essential as the friction between the two affects the life span and function of the treadmill, therefore it is suggested that the running board and belt be inspected regularly. -
Page 14: Folding Instructions
FOLDING INSTRUCTIONS FOLDING: Place your hand at position “H” and lift up on the Main Frame (No. A) until the Air Pressure Cylinder (No. B03) “K” locks into the tube. When Pressure Cylinder (No. B03) successfully locks into the tube, you will hear a clicking sound. -
Page 15: How To Move The Machine
HOW TO MOVE THE MACHINE Before attempting to move the treadmill, make sure that it has been properly folded. Unplug the power cord. To tilt, start by placing one hand at position “H” to support the top end of the treadmill. Next, place one foot at position “L”... -
Page 16: Adjusting The Incline
ADJUSTING THE INCLINE ATTENTION: For your safety and convenience, always fold the treadmill (as shown below) before attempting to adjust the incline. There are two holes located on the Adjustable Foot Pad (No. A06). To adjust the level of incline, remove the two Fixing Pins (No. B04) from the left and right side. Align the holes of the Adjustable Foot Pad (No. -
Page 17: Important Electrical Information
IMPORTANT ELECTRICAL INFORMATION WARNING: This treadmill requires a power source of 10 amps (100-120V) in order to properly operate. For your safety, as well as the safety of others, please verify that the power source is correct before plugging the equipment. Any power source above or below this level could cause significant damage to the equipment and or user. -
Page 18: The Display Console
THE DISPLAY CONSOLE QUICK START: 1. Insert the magnet end of the safety key into the computer console. Turn on the power switch. 2. Press the START button, and the system will automatically display a 3 second countdown. Once the countdown reaches zero, the running belt will start at the initial default speed of 0.5 MPH. -
Page 19: Function Keys
3. CALORIES/DISTANCE: Displays the amount of calories burned from 0 to 999 KCAL and the incline level from 0-15. When the count reaches 999, it will reset and start back from 0. When in Countdown Mode, it will count down from the desired setting to 0. Once it reaches 0, the machine will stop smoothly and display “End”, then automatically reset to the initial setting after 5 seconds. -
Page 20: Playing Music
PLAYING MUSIC You can connect your mobile device to the treadmill to play music. You choose music and adjust the volume of music using your device buttons. There are 2 ways to connect: 1. Connect your device using the MP3 wire (No.G05). 2. - Page 21 THE DISPLAY CONSOLE BODY MASS CALCULATION: Press the PROGRAM button until the window displays FAT to access Body Mass Calculation. Press MODE to enter F-1, F-2, F-3, F-4, F-5 F-1 SEX, F-2 AGE, F-3 HEIGHT, F-4 WEIGHT, F-5 is Body Mass Index Press SPEED +/- BUTTONS to set F1-F4 (refer to the chart below).
- Page 22 TREADMILL FUNCTIONS SAFETY LOCK FUNCTION: Removing the Safety Key (No. D10) from the computer console while the treadmill is running will cause it to stop immediately. Once the treadmill reaches a full stop, the window display of the computer will show “- - -“ and the buzzer will beep 3 times. To start the treadmill again, insert the magnet end of the Safety Key (No.
-
Page 23: Exercise Instructions
EXERCISE INSTRUCTIONS GETTING STARTED: Before starting any exercise program, you should consult your physician to determine if you have any medical or physical conditions that could put your health and safety at risk or prevent you from using the equipment properly. Be aware of your body’s signals. -
Page 24: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SUGGESTED ACTION Not plugged in Plug cord into outlet Treadmill will not start Safety Key not inserted Insert Safety Key Running belt tension not Tighten the adjustment bolts Running belt not centered correct on the left or right on the left and right side of the sides of the running board rear roller... - Page 25 Check motor wires to see if the motor is connected. If The motor wire is not the wire has been punctured E06: Motor Abnormality connected or the motor is or damaged, you will need to damaged. replace it. If the problem is not rectified, you may need to replace the motor Check the upper and middle...
