AEM10941
Quick Start Guide EVK with

FEATURES

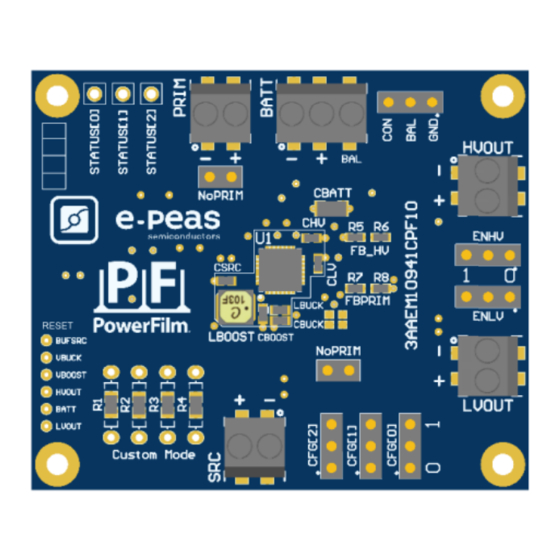

Connectors

• 1 screw connector for Photovoltaic cell from PowerFilm
• 1 screw connector for Storage Element
• Multiple Footprints for Supercapacitors
• 1 screw connector for Primary Battery
• 1 screw connector for HVOUT LDO output (80mA @ 1.8 – 4.2 V)
• 1 screw connector for LVOU LDO output (20mA @ 1.2 or 1.8 V)

Configuration

• 3 Jumpers for CFGx pins related to the storage element protection
• 6 resistors footprint related to the custom mode (CFG2-1-0=0-0-0)
• 2 jumpers related to the internal LDOs – enable/disable
• 2 jumpers related to the primary battery minimum level
• 1 jumper if using the BAL feature (dual-cells supercapacitor)

Size

• 58mm x 49mm
• 4 x M2.5 Mounting holes

SUPPORT PCB

BOM around the AEM10941
Footprint & Symbol:
Available on the
web product page
www.e-peas.com
© 2020 e-peas S.A.
V1.0
