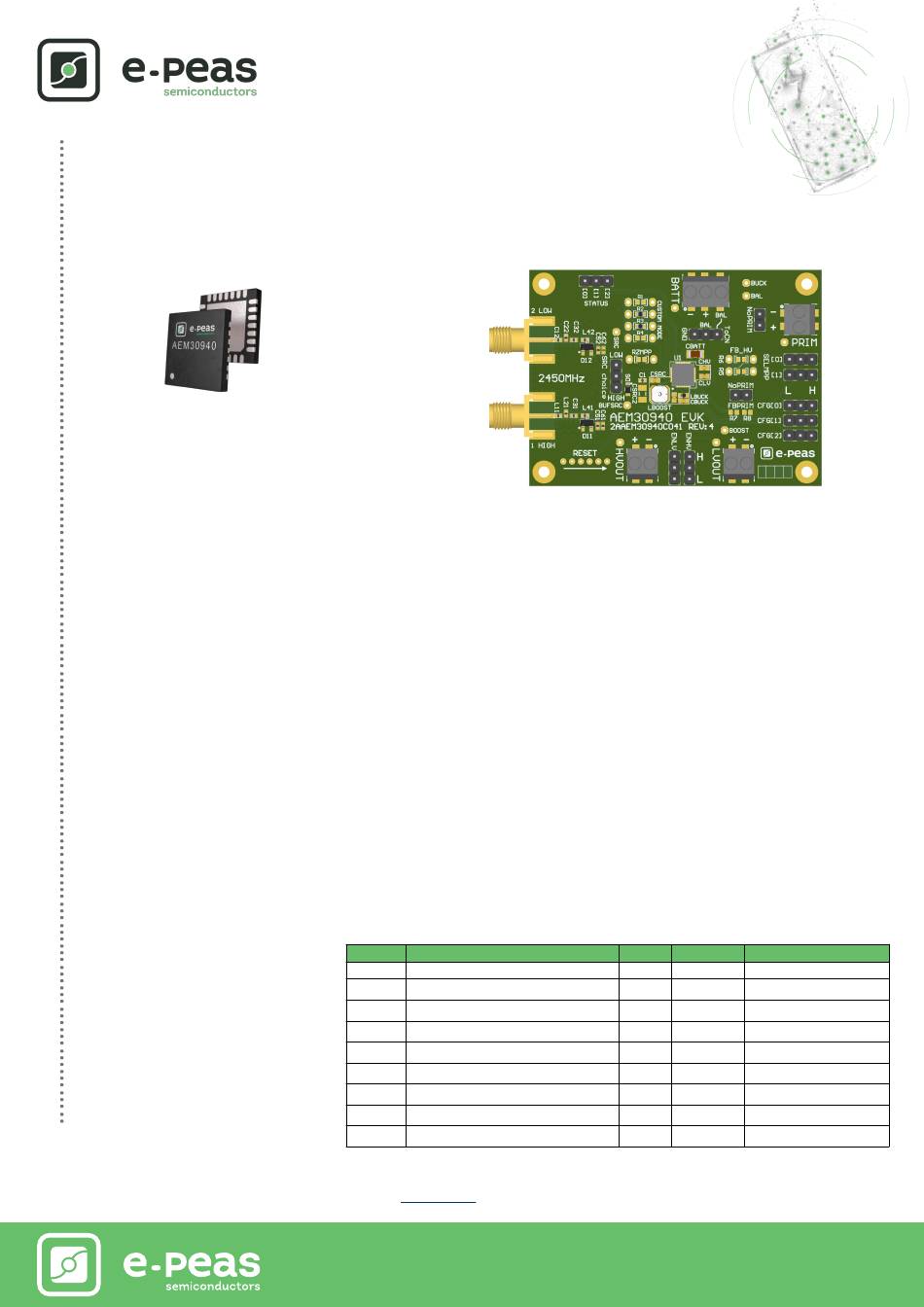

E-peas AEM30940 RF 2.45 GHz Quick Start Manual

AEM30940 RF 2.45 GHz
Quick Start Guide EVK
FEATURES
Connectors
• 1 SMA connector for input power below -10dBm [LOW]
• 1 SMA connector for input power above -10dBm [HIGH]
• 1 screw connector for the storage element
• 1 screw connector for primary battery
• 1 screw connector for HVOUT LDO output (80mA @ 1.8 – 4.1 V)
• 1 screw connector for LVOUT LDO output (20mA @ 1.2 or 1.8 V)
Configuration
• 2 headers SELMPP[1:0] to define the MPPT ratio linked to the harvester technology
• 3 headers CFG[2:0] to define the storage element protection levels and LDOs output voltages
• 6 resistors footprint related to the custom mode (CFG[2:0]=LLL)
• 2 headers to enable/disable the internal LDOs
• 2 headers to disable the primary battery feature
• 2 resistors to define the primary battery minimum level
• 1 header to disable the dual cell supercapacitor balancing feature
• 1 resistors footprint to use the ZMPPT feature (constant impedance matching)
Size
• 76mm x 49mm
• 4 x M2.5 mounting holes
SUPPORT PCB
BOM around the AEM30940
Matching network and RF rectifier schematic under NDA signature
Footprint & Symbol: Available in the
Designator Description
U1 AEM30940
L
Power inductor 22 µH - 0.65 A - LPS4018
BOOST
C
Ceramic Cap 22 µ F, 10 V, 20%, X5R, 0603
BOOST
L
Power inductor 10 µH - 0.25 A - 0603
BUCK
C
Ceramic Cap 10 µ F, 10 V, 20%, X5R, 0603
BUCK
C
Ceramic Cap 10 µ F, 10 V, 20%, X5R, 0603
SRC
C
Ceramic Cap 10 µ F, 10 V, 20%, X5R, 0603
HV
C
Ceramic Cap 10 µ F, 10 V, 20%, X5R, 0603
LV
C
Ceramic Cap 220 µF, 6.3 V, 20%, X5R 1206
BATT
datasheet
www.e-peas.com © 2025 e-peas S.A.
Quantity Manufacturer Part Number
1 e-peas Order at sales@e-peas.com
1 Coilcraft LPS4018-223MR
1 Murata GRM188R61A226ME15D
1 TDK MLZ1608M100WT
1 TDK C1608X5R1A106M080AC
1 TDK C1608X5R1A106M080AC
1 TDK C1608X5R1A106M080AC
1 TDK C1608X5R1A106M080AC
1 Murata GRM31CR60J227ME11L
QSG-AEM30940_QFN28_2450MHz_EVK1.4-v1.0
