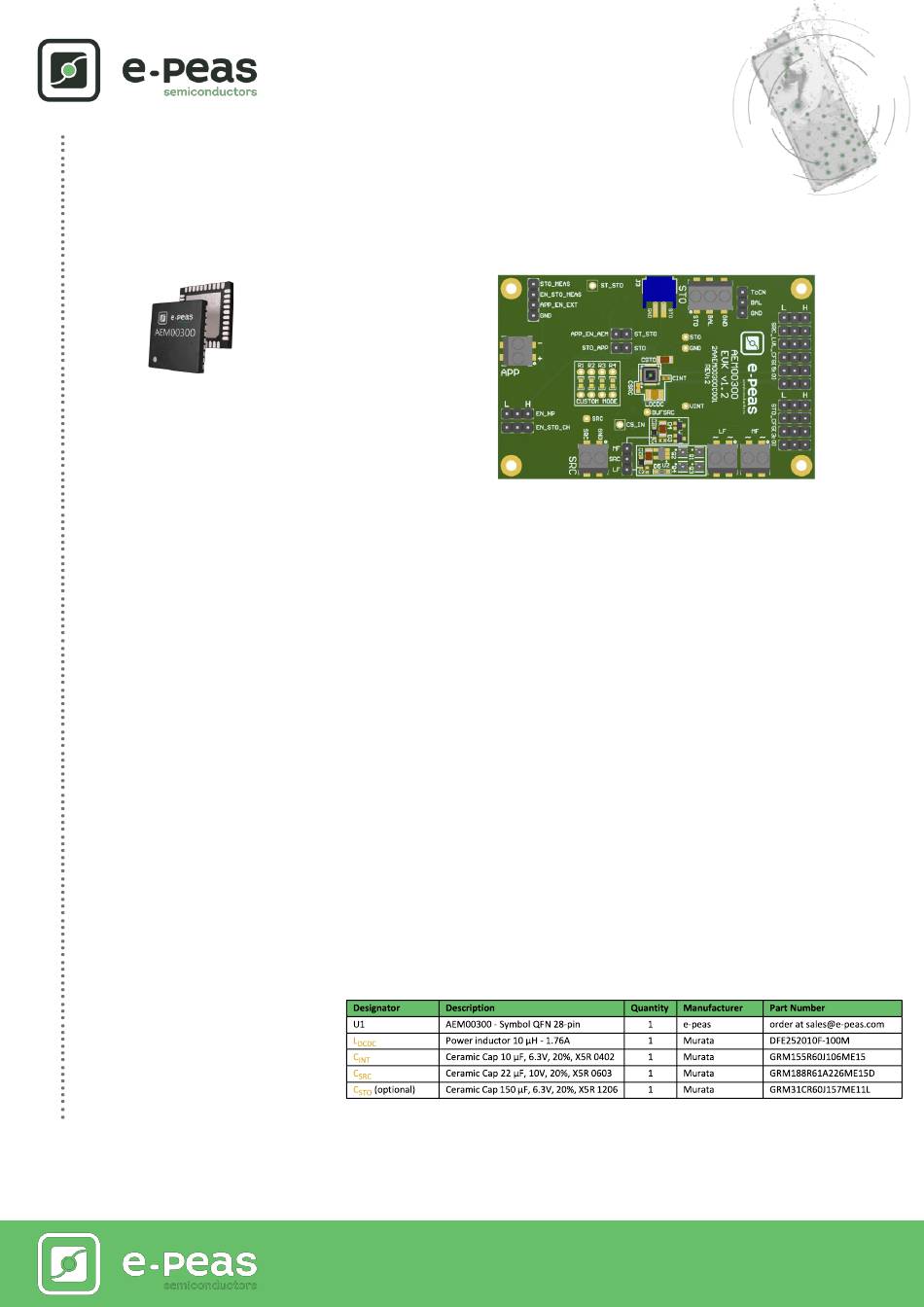

AEM00300
Quick Start Guide EVK
FEATURES
Connectors
• 1 screw connector for the source + 2 screw connectors for AC input signal.
• 1 screw connector + 1 JST connector for the storage element.
• 1 screw connector for the application circuit.
Configuration
• 6 headers SRC_LVL_CFG[5:0] to configure the source voltage regulation.
• 4 headers STO_CFG[3:0] to configure the storage element protection levels.
• 4 resistor footprints, R1 to R4, related to the custom mode (STO_CFG[3:0]=LHHH).
• 1 header to set the dual-cell supercapacitor BAL feature.
• 2 headers to configure the different modes.
• 2 headers to enable the application output supply.
• 1 header to select the rectifier.
Size
• 76mm x 49mm.
• 4 x M2.5 mounting holes.
SUPPORT PCB
BOM around the AEM00300
Footprint & Symbol:
Information available in the datasheet.
www.e-peas.com
© 2024 e-peas S.A.
QSG-AEM00300_EVK1.2-v1.0
Advertisement
Related Manuals for E-peas AEM00300
Summary of Contents for E-peas AEM00300
- Page 1 • 2 headers to enable the application output supply. • 1 header to select the rectifier. Size • 76mm x 49mm. • 4 x M2.5 mounting holes. SUPPORT PCB BOM around the AEM00300 Footprint & Symbol: Information available in the datasheet. www.e-peas.com © 2024 e-peas S.A. QSG-AEM00300_EVK1.2-v1.0...
- Page 2 STEP 1: Configure the AEM00300 • Source voltage regulation: SRC_LVL_CFG[5:0] • Storage element voltages protection: STO_CFG[3:0] • BAL option: Select “ToCn” to use the balancing or “GND” to disable it. • Configuration mode: Jumper to H to enable or to L to disable the features: •...
- Page 3 STEP 2: Connect the storage element STEP 3: Connect the harvester • Internal boost efficiency Vs. input voltage in Low Power mode: • Internal boost efficiency Vs. input voltage in High Power mode: STEP 4: Check the status www.e-peas.com © 2024 e-peas S.A. QSG-AEM00300_EVK1.2-v1.0...
