User Manual ► FEISOL Ball Heads
The following manual applies to all FEISOL Ball Heads

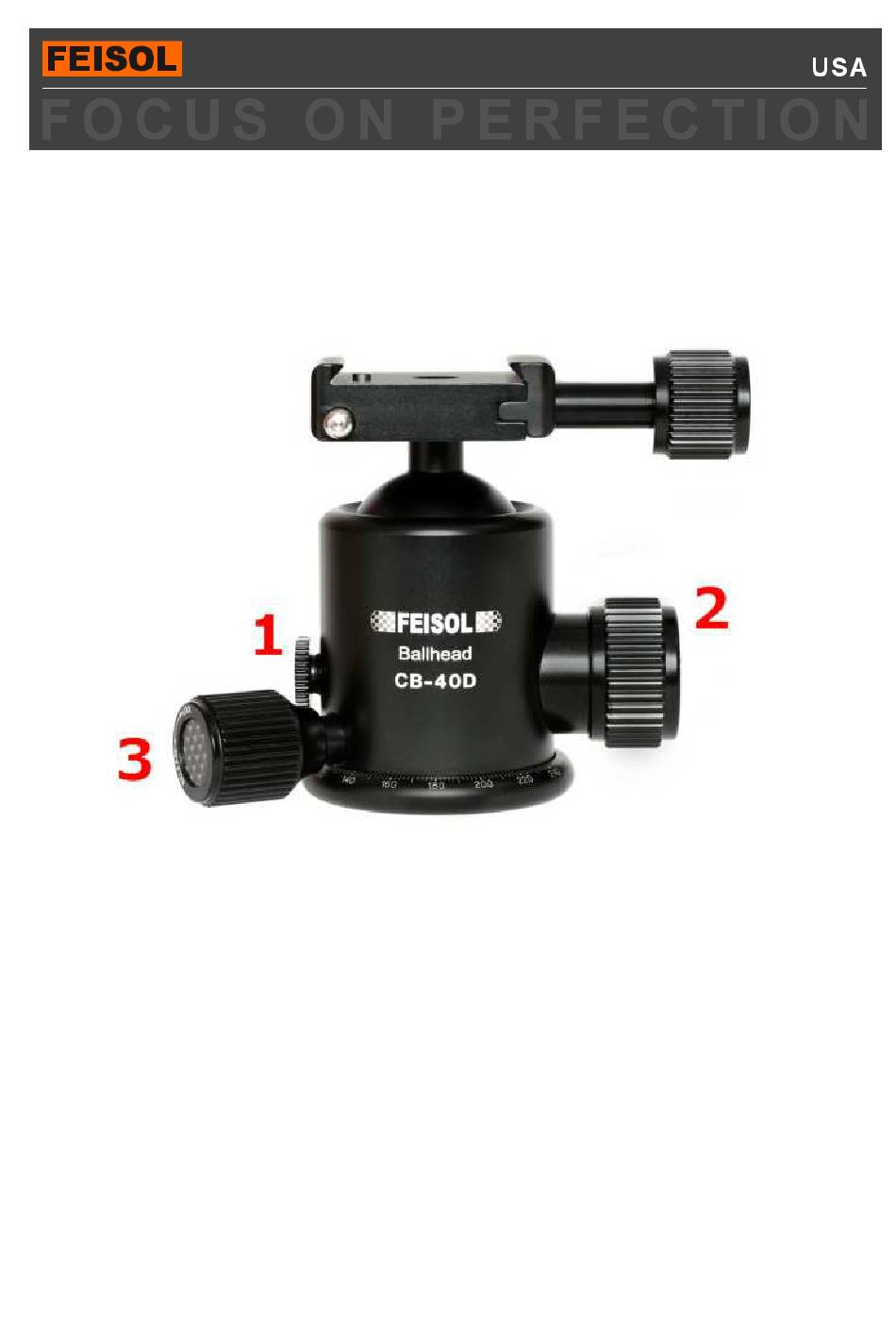

(1) Friction Control Knob
(2) Ball Head Lock / Release Knob
(3) Panning Base Knob (except CB-30C)
(4) Quick Release Knob
Note
No tools are needed for operating any of these knobs. Use of tools may cause damage to
the Ball Head and void the warranty.
Do not carry your Tripod and Ball Head with a camera/lens attached. Ball Heads are
designed to work only stationary.
WWW.FEISOL.NET
© FEISOL INC, USA
Page 1 of 2
Advertisement
Table of Contents
Related Manuals for feisol CB-40D
Summary of Contents for feisol CB-40D
- Page 1 User Manual ► FEISOL Ball Heads The following manual applies to all FEISOL Ball Heads (1) Friction Control Knob (2) Ball Head Lock / Release Knob (3) Panning Base Knob (except CB-30C) (4) Quick Release Knob Note No tools are needed for operating any of these knobs. Use of tools may cause damage to the Ball Head and void the warranty.
- Page 2 For optimal use of the Panning Base Function, turn the Panning Knob (3) only slightly. Opening the Panning Knob too far may cause instability. To allow for precise adjustments, FEISOL Ball Heads feature a graduated scale at the bottom of the Panning Base.
