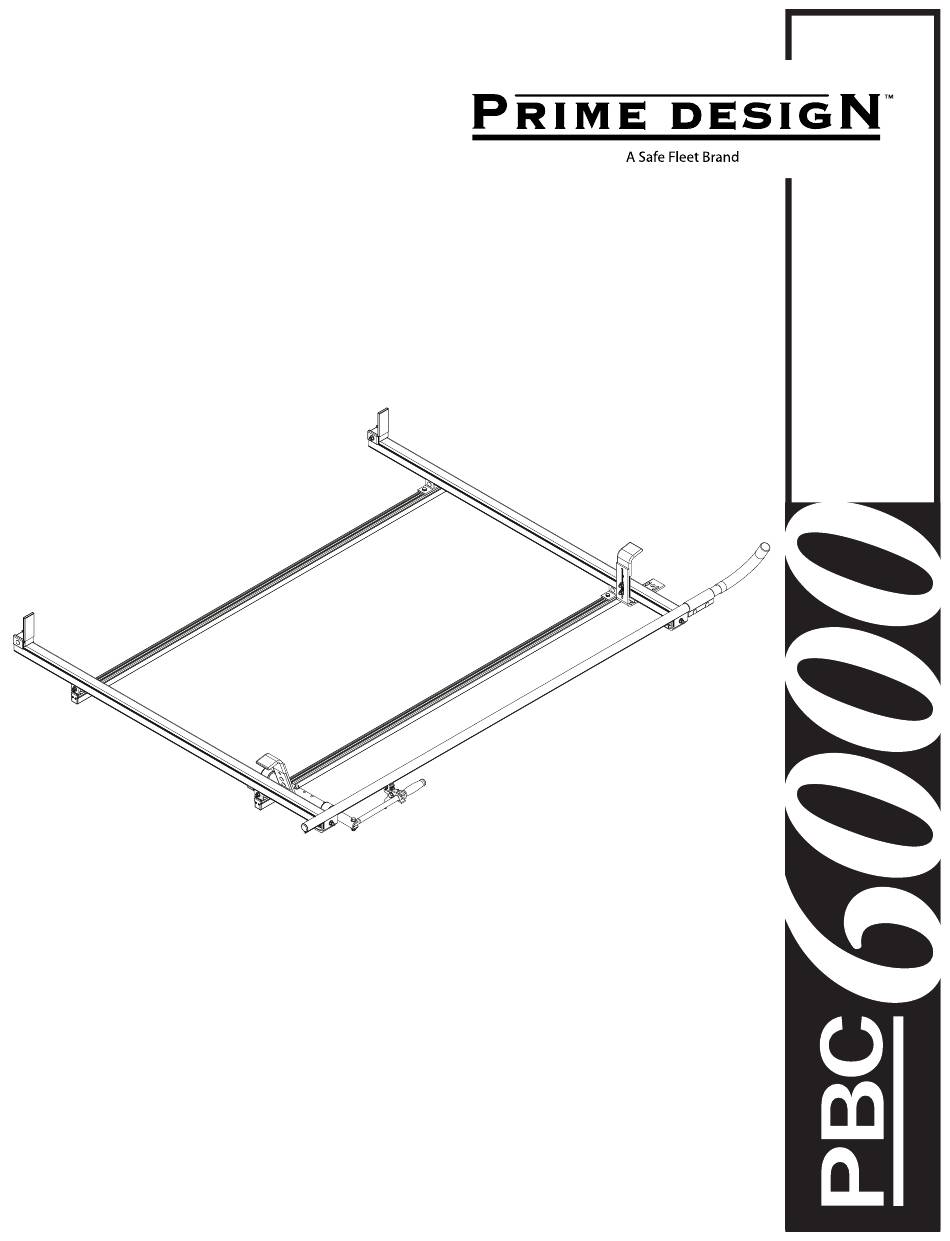

- Page 1 PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 Toll Free: 1.8.PRIME.RACK ▪ Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
-
Page 2: Contents Overview
CONTENTS OVERVIEW INSTALLER NOTE: Mounting Hardware or Brackets to attach this rack to a vehicle roof or cap are not included in this kit, and must be purchased separately. To purchase Mounting Hardware or Brackets, please contact Prime Design Sales & Support. 1—FBM-0001 ............ - Page 3 6—Front Hook Assembly ........(Qty 1) 7—Clamp Down Tube ..........(Qty 1) 80.00” 8—Quick Clamp Tube Splice Assembly ....(Qty 1) 5.00“ 9—Removeable Horn with Cap ......(Qty 1) 15.00” 10—Clamp Down Handle Assembly ..... (Qty 1) M8 x 45MM (1X) Clamp Down Handle (1X) M8 Lock Nut (1X) "...
- Page 4 FBM-0001 FLUSH Set to distances then torque nuts to 80 in-lbs CHANNELS TO PRE–INSTALLED MOUNTING BRACKETS F r o R i g R e a R e a Flush to end See Note Loosen nuts Crossbar Rear Note: Use Alternate instructions if marked distances exceed 18” (457mm). Set to distances then torque Rear Bracket nuts to 90 in-lbs F r o R i g...
- Page 5 FBM-0001 ALTERNATE Set to distances then torque nuts to 80 in-lbs CHANNELS TO PRE–INSTALLED MOUNTING BRACKETS F r o R i g R e a R e a See Note Loosen nuts Crossbar Rear Move Channels rearward until front distance no longer exceeds 18” (457mm). Set to distances then torque Rear Bracket nuts to 90 in-lbs F r o R i g...
- Page 6 FBM-0001 SLOPED TYPICAL Set to distances then torque nuts to 80 in-lbs CHANNELS TO PRE–INSTALLED MOUNTING BRACKETS F r o R i g R e a Flush to end Loosen nuts Crossbar Rear Set to distances then torque nuts to 90 in-lbs F r o R i g R e a...
- Page 7 FBM-0001 SLOPED ALTERNATE Set to distances then torque nuts to 80 in-lbs CHANNELS TO PRE–INSTALLED MOUNTING BRACKETS F r o R i g R e a R e a Flush to end See Note Crossbar Rear Loosen nuts Note: Use Sloped Typical instructions if front distance exceeds 18” (457mm). Set to distances then torque nuts to 90 in-lbs F r o R i g...
-
Page 8: Assembly Sequence
RIGHT CLAMP DOWN ASSEMBLY SEQUENCE CROSSBARS CROSSBAR ADJUSTMENT Even Front Even F r o Even Rear Even Torque to 90 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). - Page 9 CLAMP DOWN HANDLE CLAMP DOWN TUBE Torque to 90 in-lbs Torque to 90 in-lbs HANDLE LATCH FRONT LADDER HOOK SEE QUICK START GUIDE FOR ADJUSTMENTS Torque to 90 in-lbs Torque to 90 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 10 LEFT BASE ASSEMBLY SEQUENCE LADDER STOPS Loosen nuts Torque to 90 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 11 Page Intentionally Left Blank...
- Page 12 USAM-PBC6000-US01 Rev-A 0218...
