Summary of Contents for Safe Fleet Prime Design PBR0005

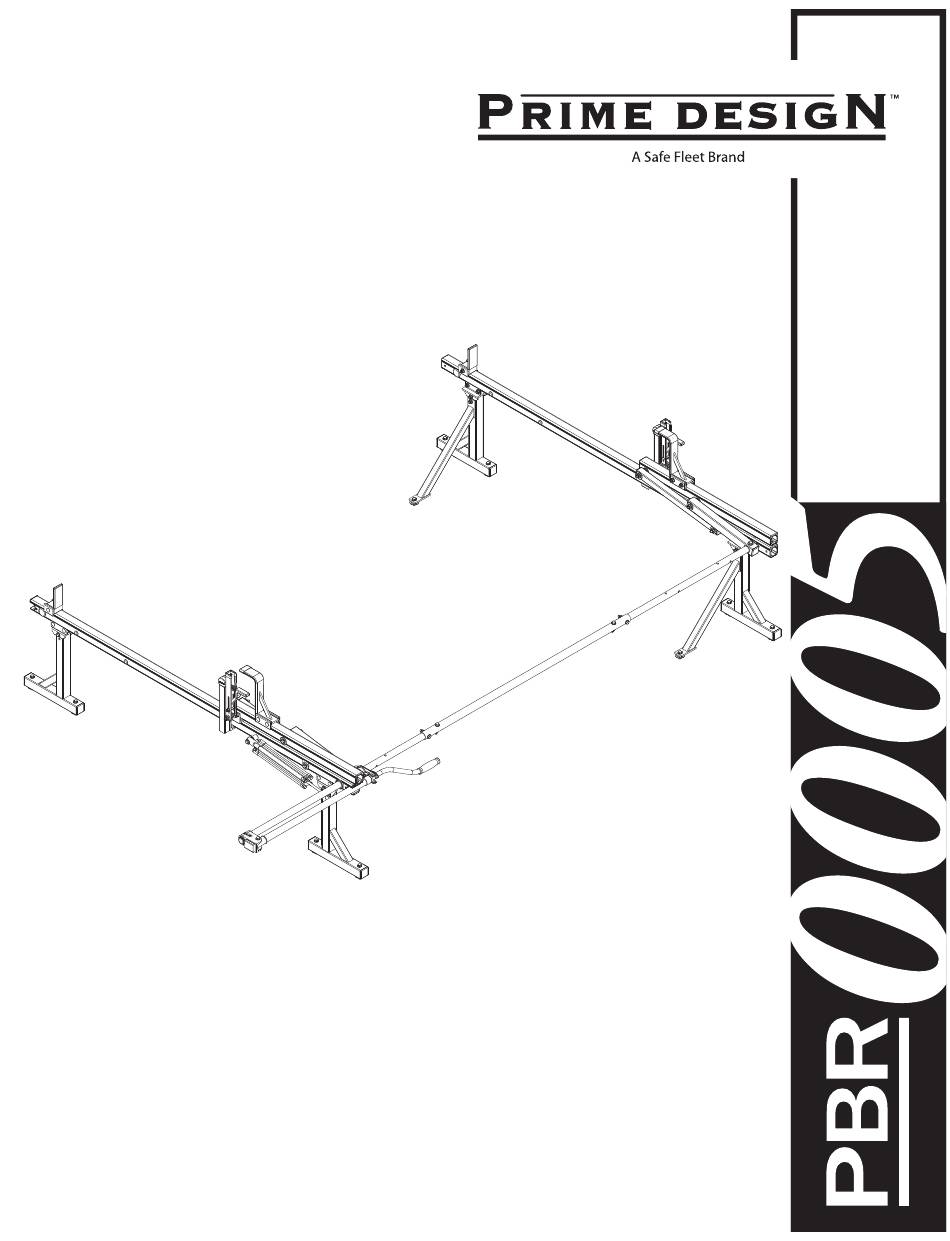

- Page 1 PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
-
Page 2: Contents Overview
CONTENTS OVERVIEW 1—FBM-0067 ............(Qty 1) Utility Elevated Base Mounting w/hardware Bracket Braces (2X) Mounting Brackets (4X) M8 x 65MM (10X) Fender Washer (10X) Neoprene Washer (10X) " Flat Washer (14X) M8 Lock Nut (12X) M8 x 30MM (2X) 2—Rear Crossbar Assembly ........(Qty 1) 3—Front Crossbar Assembly ......... - Page 3 4—Rear Drive Shaft ..........(Qty 1) Right Hand, B4 Version, 46.00” 5—Handle Latch Assembly ........(Qty 1) 6—Connecting Bar ..........(Qty 1) 48.00” 7—Front Drive Shaft ..........(Qty 1) B Version, 35.75” 8—Ladder Stop Assembly ........(Qty 3) 1.75” 9—L & Z Post Kit ............ (Qty 1) Adj.
-
Page 4: Assembly Sequence
RIGHT ROTATION ASSEMBLY SEQUENCE 4/11 7’ (84”) CONFIGURATION FBM-0031 8’ (96”) CONFIGURATION Front Front 14.25” 14.25” 61.50” 61.50” 84.00” 96.00” Rear 55.7625” Rear 10.00” 55.7625” 10.00” Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). - Page 5 6’ (72”) CONFIGURATION Attach Brace using supplied hardware. Do not tighten until Step 1.3 Front M8 X 65MM Flat Washer 14.25” Flat Washer M8 Lock Nut 61.50” 72.00” Rear 55.7625” 10.00” Apply Anti-Seize to Mounting Bolts and complete installation of mounting system. Torque to 90 in-lbs M8 X 30MM Flat Washer...
-
Page 6: Rear Drive Shaft
CROSSBARS CROSSBAR ADJUSTMENT F r o Even Front Even Even Rear Even Torque to 90 in-lbs REAR DRIVE SHAFT CYLINDER HARDWARE NOTE: For instructional clarity, the FBM Mounting System will not be shown for the remainder of this Assembly Manual. Torque to 80 in-lbs Torque to... -
Page 7: Front Drive Shaft
CONNECTING BAR FRONT DRIVE SHAFT Torque to 90 in-lbs CONNECTING BAR FASTENERS DRIVE SHAFT SEALING Apply Silicone Sealant to Connecting Bar ends Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). - Page 8 8 8 8 L POSTS Prepare the L Post by removing the hex head bolt, lock washer, flat washer, and Bracket Clamp. Retain for SEE QUICK START GUIDE FOR ADJUSTMENTS installation Steps 10.4-10.8. NOTE: The Auto Clamps may come preset from the factory for packaging purposes only.
- Page 9 Z POSTS SEE QUICK START GUIDE FOR ADJUSTMENTS Slide the L Post until parallel to the Auto Clamp and the 10.1 Slide the Z Post into the Mounting Clamp Assembly gap between the two is even from top to bottom Torque to 80 in-lbs Ensure both Z Post Mounting...
- Page 10 LEFT SIDE ASSEMBLY SEQUENCE * NOTE: Crossbars may not have Caps installed from the factory. If factory-installed, proceed to Step 13 and ignore Step 14. If not installed, Caps will be included in the Hardware Kit. Press them into the Crossbars as shown in Step 14. LADDER STOPS CROSSBAR CAPS NOTE: Some Front Crossbars may...
- Page 11 QUICK START GUIDE Place the Quick Start Guide into the vehicle’s glove box for ladder setup and adjustment. Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 12 USAM-PBR0005-US01 Rev-B 0219...
