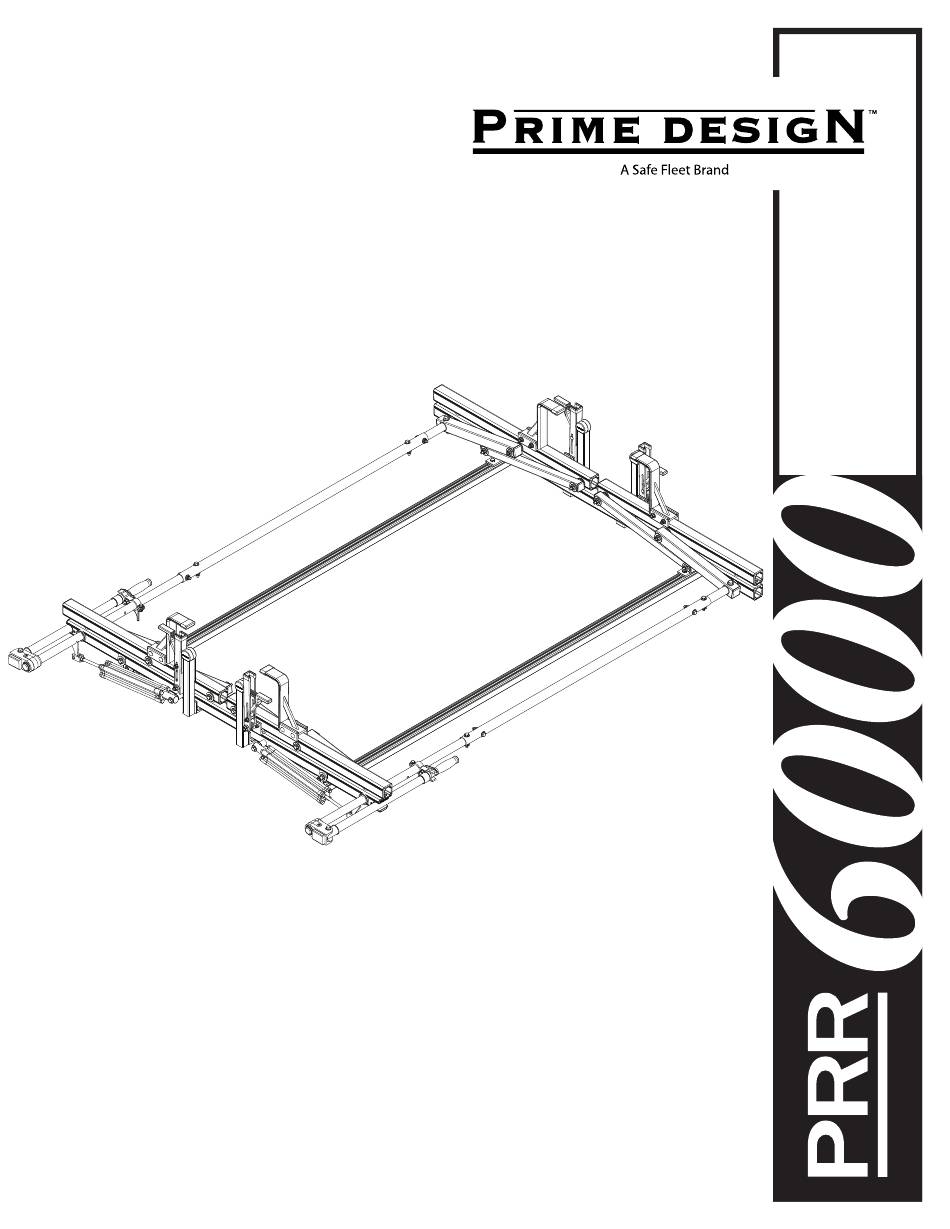

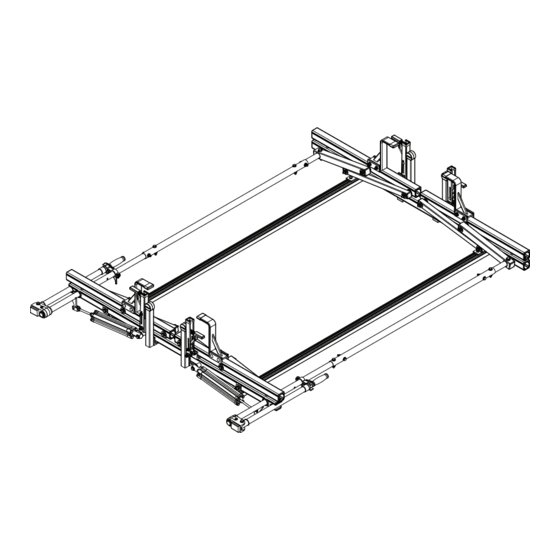

- Page 1 PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
-
Page 2: Contents Overview
CONTENTS OVERVIEW INSTALLER NOTE: Mounting Hardware or Brackets to attach this rack to a vehicle roof or cap are not included in this kit, and must be purchased separately. To purchase Mounting Hardware or Brackets, please contact Prime Design Sales & Support. 1—FBM-0001 ............ - Page 3 7—Front Drive Shaft ..........(Qty 2) B Version, 35.75” 8—Z Post ..............(Qty 4) Adjustable, 7.25” 9—L Post..............(Qty 4) Roller Cap, 9.25” 10—Rear Drive Shaft ..........(Qty 1) Left Hand, 34.00” 11—Handle Latch Assembly ......... (Qty 1) Left Hand 12—HKT-8163-Rotation Hardware Kit ....
- Page 4 FBM-0001 FLUSH Set to distances then torque nuts to 80 in-lbs CHANNELS TO PRE–INSTALLED MOUNTING BRACKETS F r o R i g R e a R e a See Note 1—9/16” (40mm) from end Left Rear Flush to end See Note Loosen nuts Right Rear Note: Use Alternate instructions if marked distances exceed 18”...
- Page 5 FBM-0001 ALTERNATE Set to distances then torque nuts to 80 in-lbs CHANNELS TO PRE–INSTALLED MOUNTING BRACKETS F r o R i g R e a R e a See Note 12—5/16” (313mm) from end Left Rear 12—5/16” (313mm) from end See Note Loosen nuts Right Rear...
-
Page 6: Assembly Sequence
RIGHT ROTATION ASSEMBLY SEQUENCE 3/16 NOTE: Assemblies and parts shown in this manual are representative. Some items may appear different from actual parts, assemblies, or components received. CROSSBARS CROSSBAR ADJUSTMENT Even Rear Even F r o Even Front Even Torque to 120 in-lbs Prime Design Limited Warranty. -
Page 7: Rear Drive Shaft
REAR DRIVE SHAFT CYLINDER HARDWARE Torque to 80 in-lbs Torque to 120 in-lbs CONNECTING BAR FRONT DRIVE SHAFT Torque to 120 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). - Page 8 CONNECTING BAR FASTENERS Z POSTS SEE QUICK START GUIDE FOR ADJUSTMENTS Torque to 120 in-lbs L POSTS SEE QUICK START GUIDE FOR ADJUSTMENTS Torque to 80 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 9 LEFT ROTATION ASSEMBLY SEQUENCE 11/16 REAR DRIVE SHAFT CYLINDER HARDWARE 10.2 10.1 Torque to 80 in-lbs Torque to 120 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 10 CONNECTING BAR FRONT DRIVE SHAFT 12.1 12.2 11.1 12.3 11.2 12.4 Torque to 120 in-lbs CONNECTING BAR FASTENERS Z POSTS SEE QUICK START GUIDE FOR ADJUSTMENTS 14.1 14.1 14.2 Torque to 120 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 11 L POSTS CYLINDER ADJUSTMENT SEE QUICK START GUIDE FOR ADJUSTMENTS 15.1 15.1 15.2 Adjust the Cylinder Flow Torque to 120 in-lbs Control Screw to allow approximately 3 seconds time for the ladder to glide down when operating the loaded Ladder Rack. DRIVE SHAFT SEALING 17.2 Apply Silicone Sealant to...
- Page 12 USAM-PRR6000-US01 Rev-A 0618...
