JL Audio Stealthbox SB-F-EXPDEL/10W3v3 Installation Manual page 6

Page 6 • JL Audio, Inc 2017

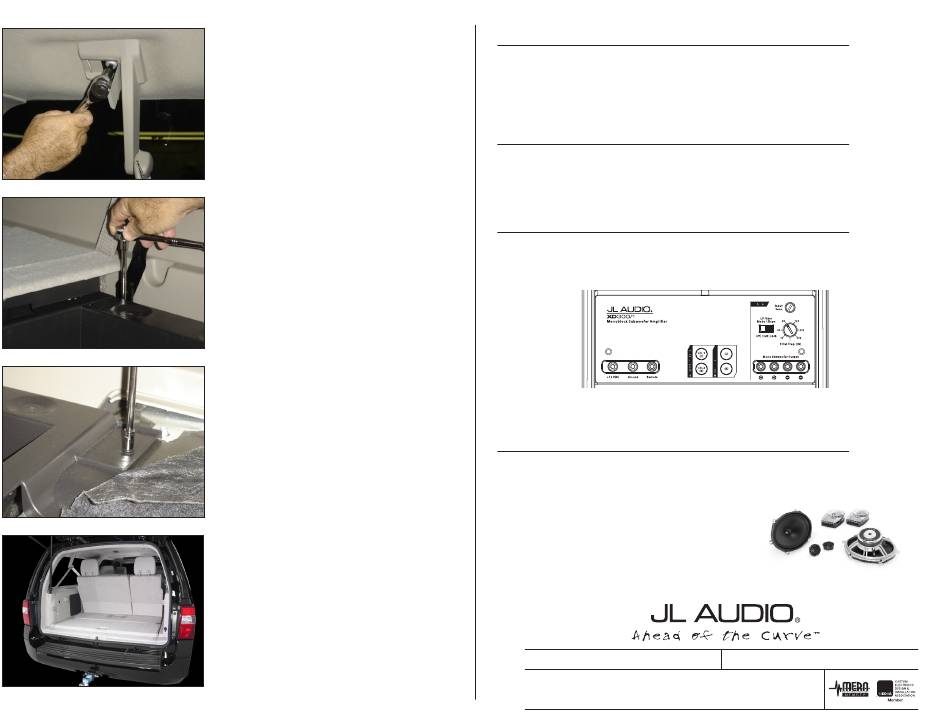

S T E P 3 6
Secure the third row seat belt to the ceiling and floor,
from STEPS 8 & 9.
Snap in the seat belt trim panel, from STEP 7.
Replace the d-pillar cover, from STEP 16.
Replace the tailgate's upper sill plate, from STEP 15.
Replace the driver's rear door sill plate, from STEP 14.
S T E P 3 7
Secure the lift tray to the floor, from STEP 5.
S T E P 3 8
Replace the floor storage bins back into the SUV. Secure
them to the floor, from STEP 4.
Replace the tailgate's lower sill plate back into the SUV,
from STEP 3.
Replace the storage covers back into the SUV,
from STEPS 1 & 2.
C O N G R A T U L A T I O N S
You have completed the installation for this model!
Please refer to the Power Recommendation section for an
amplifier recommendation and basic set-up help.
I N C L U D E D H A R D W A R E
(3) 3/8-inch -16 x 1-inch Hex Tap Bolt
(1) L-bracket
(1) Z-bracket
(3) 3/8-inch Split lock Washer
(4) 3-inch x 3-inch Wax Squares
S P E C I F I C A T I O N S
Enclosure Type: Acoustic Suspension (sealed)
Driver Type: 10W3v3-2
Nominal Impedance: 2 ohms mono
Continuous Power Handling: 500 Watts
P O W E R R E C O M M E N D A T I O N
JL Audio recommends using a high quality amplifier such as the JL Audio XD300/1v2.
The diagram below shows the recommended crossover settings for the XD300/1v2 when being used to power
your Stealthbox ® .
The JL Audio XD300/1v2 is a very versatile audio component. Please consult the owner's manual for even more
detailed information about installing and tuning this amplifier.
M I D / H I G H F R E Q U E N C Y D R I V E R F I T M E N T
A variety of JL Audio coaxial and component systems will fit in the factory speaker locations of you vehicle.
Front Speaker Size / Location: 5-inch x 7-inch / Front Doors
Fits JL Audio Models: C5-570, C5-570x, C3-570, C2-570x,
C1-570x
Rear Speaker Size / Location: 5-inch x 7-inch / Rear Door
Fits JL Audio Models: C5-570, C5-570x, C3-570, C2-570x,
& C1-570x
(954) 443-1100
All specifications are subject to change without notice. "JL Audio®" and the JL Audio logo, "Stealthbox" and the Stealthbox logo are registered
trademarks of JL Audio, Inc. "Ahead of the Curve" and its respective logo is a trademark of JL Audio, Inc.
JLA-SKU# 011237 12.01.2017 • Printed in USA • ©2016 JL Audio, Inc.
For more detailed information please visit us online at www.jlaudio.com.
1 0 3 6 9 N O R T H C O M M E R C E P A R K W A Y
SB-F-EXPDEL/10W3v3_INSTR_SKU#011237
(4) 3/8-inch Flat Washer
(3) #8 SAE Flat Washer
(4) #8-32 x 1/2-inch Pan Head Screw
(1) 5/8-inch MDF Square Grille
