DIP Switch: The four-pole DIP switch controls a
supervision signal on the "Page" audio output line.
For systems where supervision is used, setting DIP
switches 1 & 2 to ON enables supervision on the
Page audio output connections. Where supervision
is not used, set DIP switches 1 & 2 to OFF.
Switches 3 & 4 are not used.
Audio Input/Contact Closure: One Audio Input
and one Contact Closure input are provided.
Neither input is polarity sensitive. The contact
closure is labeled "CC". The audio input
terminals are labeled "AUDIO".
Relay Channels: Access to the two form C relays
is provided via a six pin screw terminal block. The
relays are labeled K1 and K2. Each relay is
brought out on three terminals. The common
contact is the middle terminal with the normally
closed contact on the right and the normally open
contact on the left. Relay contacts are rated for 1A
@ 24VDC.

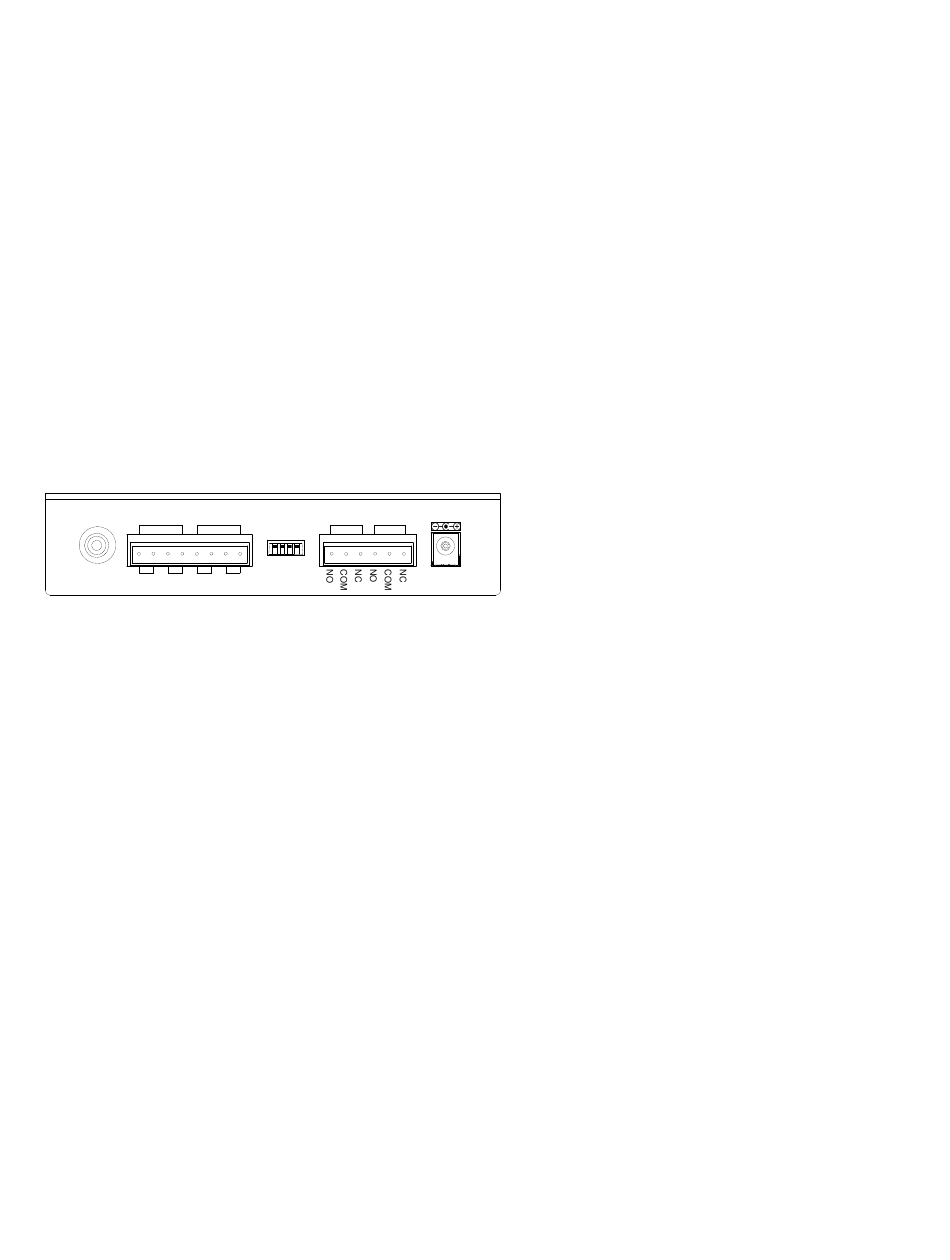

AUX INPUTS OUTPUTS
IN
AUDIO CC PAGE AUX
Rear View
K1 K2 +24V DC
1 2 3 4
ON
Status Indicator Lights
The VIP-801A has 3 status indication lights on the
front panel:
STATUS: Flashes during normal operation and
solid during system startup.
Green LED: (Link) Indicates Ethernet connection
when illuminated.
Yellow LED: (Activity) Indicator flashes to indicate
network activity.
Setup
Information specific to your application will need
to be programmed into the VIP-801A using a
computer. The PC used for programming should
be connected to the same subnet as the VIP-801A.
Setup will be done using the IP Solutions Setup
Tool. Download the latest version of the free
IP Solutions Setup Tool from the Valcom web site
at www.valcom.com/vipsetuptool.
