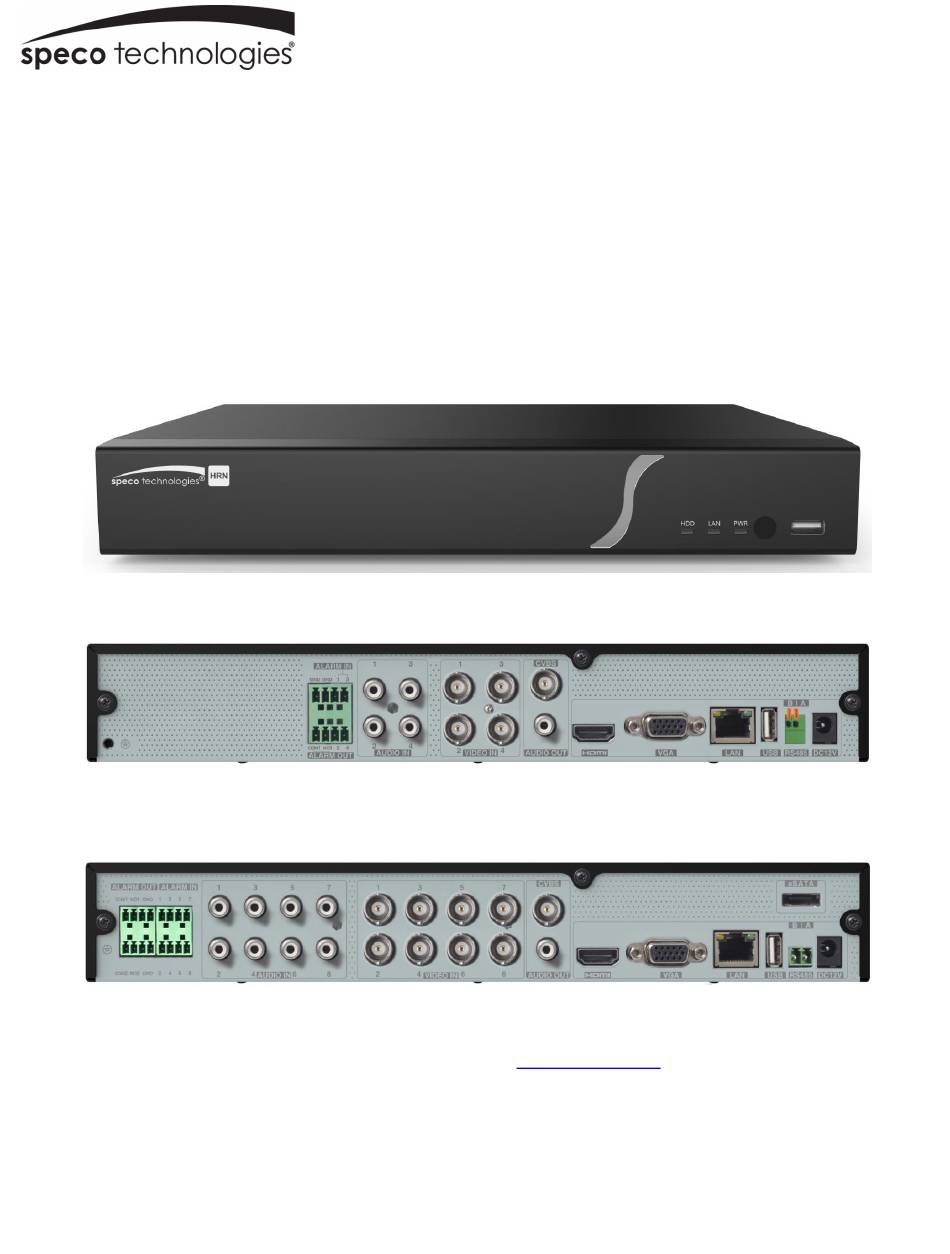

- Page 1 HRN (6 and 12 Channel) Quick Start Guide H6HRN H12HRN Version 1.0 Features and specifications are subject to change, please check www.specotech.com for firmware updates.
- Page 2 Email: techsupport@specotech.com Important Safeguards and Warnings Speco Technologies assumes no liability or responsibility for any fires or electrical shock caused by improper handling or installation. Speco Technologies is not liable for any problems caused by unauthorized modifications or attempted repair.
- Page 3 Figure 1-2 (12 channel unit shown) RS485 Interface: A is TX+; B is TX-. Set Password and Security Questions 2.1 Enter a password Note: You will be prompted to set a Password and security questions upon initial boot up. See Fig 2-1 The default login ID and administrator username is: admin The password strength indicator can be used as a reference.
- Page 4 Figure 2-1...
- Page 5 3. Update Firmware (if necessary) Speco will continuously make improvements, please check the website to ensure you are running the latest firmware version. 3.1 Check firmware version on recorder You can click Start→Settings→System→Information→Basic go to “About this machine” and click on “view”. You will then be able to see the firmware version number and build date.
-
Page 6: Updating Firmware
If the web has a more recent firmware version than your recorders build date, then please update your device to the latest firmware. 3.2 Updating Firmware 1. Copy the upgrade software into the USB storage device. 2. Insert the USB storage device into the USB interface of the DVR. 3. - Page 7 Time format: Choose between 24-hour mode or 12-hour mode. NTP: Specify an NTP server to synchronize the time (optional). Figure 4-1 4.2 EZ Network Setup Next, set the network of the DVR. Go to Start → Settings → Network →TCP/IP. Input IP address, subnet mask, gateway, etc.
-
Page 8: Upnp Configuration
4.4 DDNS Settings The DDNS is used to control the dynamic IP address through domain name. Speco Technologies provides free DDNS service with US-based servers. You can access to the DVR easily if the DDNS is enabled and configured. Click Start→... - Page 9 4.5 EZ Camera Setup Add Camera. Click “Refresh” to refresh the list of online IP cameras which are in the same local network with DVR and then click to add the searched camera. Click “Add All” to add all the cameras in the list. Click to delete the added camera.
-
Page 10: Disk Settings
Click to edit the added camera as shown on the above right. Input the new camera name, IP address, port, username and the password of the camera. You can click “Test” to test the effectiveness of the input information. Click “OK” to save the settings. - Page 11 QR Code. Enable the NAT function in the interface or set it in the network configuration after exiting the wizard (please refer to manual for details). You can scan the QR Code through the Speco Blue App available for iOS and...
-
Page 12: Web Browser Access
4.9 Web Browser Access Click Start→Settings→Network→NAT to go to the interface for NAT configuration and check “Enable”. Click “Apply” to save the settings and make note of the QR code number under the QR code. Via Internet Explorer, go to connect.specotech.cloud, input the QR code number, your username and password to login. - Page 13 4.10 Playback Click Start→Playback to go to the playback interface as shown below (click on the tool bar at the bottom of the live preview interface to set the default playback time). On panel on the right will show you’re the channel number and their recorded data coded by color. The bar that runs across them represents the playback time being viewed.
- Page 14 5. EZ search EZ Search- Quickly search an instance using video thumbnails Click Start→Search and Export→EZ search. There are two view modes: by time and by camera. In the time view mode, a maximum of 64 camera thumbnails can be showed. ...
