Summary of Contents for Speco DVR-IP4CF

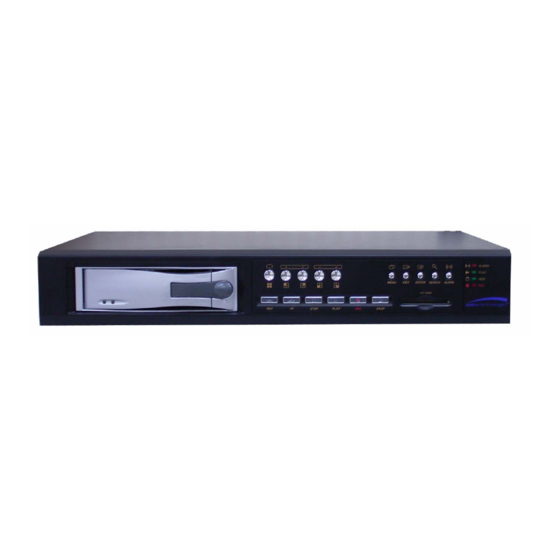

- Page 1 DVR-IP4CF U S E R M A N U A L Speco Technologies 200 New Highway Amityville, NY 11701 631-957-8700 www.specotech.com DEFAULT PASSWORD : 111111...
-
Page 2: Table Of Contents
9.1 N DVR S ETWORK ETUP 9.2 C ONNECTING ETWORK 9.3 M ... 44 ISPLAY 9.3.1 L ... 44 ISPLAY 9.3.7 Q ... 47 UALITY ETTING INDEX ...4 ...7 ANEL ...8 ONTROLS ... 10 ONTROLS ... 38 DVR... 39 DVR-IP4CF... - Page 3 ... 48 ... 48 ... 48 ... 48 ... 49 ETTING ... 50 ASSWORD ... 50 ... 50 ... 51 MODE ... 52 ... 54 V1.0 P/N:%040605-CS1 DVR-IP4CF...
-
Page 4: Safety Precautions
Do not expose to extreme temperatures. Use the product at temperatures within -10∘C ~ +50∘C. CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN! C AUTION : DO NOT OPEN COVERS (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. DVR-IP4CF... -
Page 5: Introduction
Education/ Military/ Government Organization: Important facilities, important areas, rapid transit system, and railroad safety. Recreation/ Activities: Sports and news broadcast. Home: Elevator, doorway, community safety, and hotels. Hospital/ Kindergarten: Hospital and isolated ward, home for the aged, kindergarten, and Day Care center. DVR-IP4CF... -
Page 6: Features
PC. Removable hard disk box. Removable hard drive mechanism allows you to backup important data with ease. Live monitoring through Internet from anywhere. Built-in TCP/ IP network interface (auto detects and switches to 10/ 100Base T). DVR-IP4CF... -
Page 7: Packing List
Check to make sure all of the items shown below are included in your product package. If something is missing, contact your dealer as soon as possible. (1) DVR (digital video recorder) (2) Power adapter (3) Power Cord (4) User Manual (5) CD-ROM DVR-IP4CF... -
Page 8: Connector On The Rear Panel
5. INSTALLATION 5.1 Connectors on the Rear Panel Please setup the connection by following the illustration shown below: DVR-IP4CF... -
Page 9: Name And Function Of Each Part
: Press this button to confirm after data input. (10) UP/ LEFT : Press this button to move the cursor up or down. (11) DOWN/ RIGHT : Press this button to move the cursor left or right. (12) REC LED : LED lights while recording. DVR-IP4CF... - Page 10 (19) REW : Press this button under playback to start reverse scanning. (20) PLAY : Press this button under playback mode to start playback. : Press this button under playback mode to start fast-forward (21) F.F. scanning. (22) CF-CARD SLOT DVR-IP4CF...
-
Page 11: Rear Panel Button And Control
N.C. (8) Cooling Fan. Function Ground Terminal（signal） Alarm Input Terminal Ground Terminal（signal） Alarm Input Terminal Ground Terminal（signal） Alarm Input Terminal Ground Terminal（signal） Alarm Input Terminal Alarm Output (Normal Open) Alarm Output Terminal (NC/ NO COM) Alarm Output (Normal Close) DVR-IP4CF... -
Page 12: Operating Procedure
3 times, and after reset the password will be set as default value (111111). When the reset procedure has been completed, the message“DVR RESET COMPLETED. TURN THE DVR ON & OFF＂will be displayed, then please restart the DVR. DVR-IP4CF... -
Page 13: Record Display
Note:CH1: No block figure next to CH1 indicates that it is not recording. EACH: Record Type QUAD: Record Type (T): TIMER RECORD (A): ALARM RECORD (M): MIX RECORD (□): Currently under recording. VIDEO LOSS: Video input unable to be detected. CAMERA1: Name for CH 1. OFF: Channel is set to “OFF”. DVR-IP4CF... -
Page 14: Playback Display
5. Press《FF》button to fast-forward playback. 6. Press《REW》button to reverse playback. 7. Press《STOP》button to stop playback. TIME SEARCH HARD DRIVE: MASTER >01 TIME 2003/11/27 18:20:42 02 TIME 2003/11/27 16:43:56 03 TIME 2003/11/27 15:07:11 ) MOVE (ENTER)CHANGE (PLAY)PLAY >01 TIME Total 7 >07 DVR-IP4CF... -
Page 15: Note
CF card before withdrawing it from the slot. Otherwise an error may occur. The system displays “CF CARD REMOVED”, and auto returns to live display. 5. Camera name may only be viewed during recording display and under live display. DVR-IP4CF... -
Page 16: System Setup
Under main menu (first menu layer), the system will enter live mode. Press《ENTER》button, to increase or decrease the setting values that has been highlighted. (4) Menu Layer Operation Guide （1） ：First Menu Layer (Main Menu) ：Second Menu Layer ：Third Menu Layer ：Fourth Menu Layer DVR-IP4CF... -
Page 17: System Setup
5. “System Setup＂is situated on the second menu layer. Under this menu layer user may setup the system time, password, and return system to default value, etc (VERSION displayed represents the FIRMWARE version). SYSTEM SETUP V1.0 PRESS(< >), THEN (ENTER) PRESS (MENU) TO EXIT ■■ DVR-IP4CF... -
Page 18: Time Set
PRESS (< >), THEN (ENTER) PRESS (MENU) TO EXIT 1. Cursor (^) position indicates the current time and date selected. 2. Use《←》or《→》button to move the cursor. 3. Use《ENTER》button to setup time and date. 4. Use《MENU》button to exit “Time Setup”. ■■■ TIME DVR-IP4CF... -
Page 19: Password Set
(Default Password: 111111). 6. When password is setup to “ON”, user will be requested to enter the correct password to stop recording (Default Password: 111111). PASSWORD SETUP PRESS (< >), THEN (ENTER) PRESS (MENU) TO EXIT ■■■ DVR-IP4CF... -
Page 20: Password Change
If password entered is incorrect, you will receive a message “NO PASSWORD CHANGED” to inform you (message flashes three times) and the system returns to “Password setup” selection. ■■■■ PASSWORD ：_ _ _ _ _ _ PRESS (MENU) TO EXIT DVR-IP4CF... -
Page 21: Load Default
3 times, and returns to default value. When reset procedure has been completed, the message“DVR RESET COMPLETED TURN OFF AND ON THE DVR＂will be displayed, please restart the DVR. 3. Press《MENU》button to exit “Load Default Setup” selection. PRESS (ENTER) TO RESET PRESS (MENU) TO EXIT ■■■ DVR-IP4CF... -
Page 22: Camera Setup
3) Select (- - - 4), only camera four is operational (CH4 image display only). 7. When proceeding “CH1 TITLE”, press 《 ENTER》 button to show the display CAMERA SETUP 1234 ---- CAMERA1 CAMERA2 CAMERA3 CAMERA4 PRESS (< >), THEN (ENTER) PRESS (MENU) TO EXIT ■■ DVR-IP4CF... - Page 23 8. All channel titles are setup the same way. Once the user formats the hard disk drive, the camera title returns to its default setting (CAMERA1/ CAMERA2/ CAMERA3/ CAMERA4). It is because this setup is stored in the hard disk drive. CAMERA1 12345678 DVR-IP4CF...
-
Page 24: Camera Setting
10. CONTRAST: Press 《 ENTER》 button to adjust the camera contrast (15 contrast adjustment values, default value: 08). 11. BRIGHTNESS: Press《ENTER》 button to adjust camera brightness (15 color adjustment values, default value: 08 ). CAMERA SEUP PRESS (< >), THEN (ENTER) PRESS (MENU) TO EXIT ■■■ DVR-IP4CF... -
Page 25: Record Setup
8. TIME RECORD FRAMERATE: Press 《ENTER 》 button to setup the recording speed when “T” mode is setup under schedule record mode. 9. MOTION RECORD FRAMERATE: Press《ENTER》button to setup RECORD SETUP EACH NORMAL PRESS (< >), THEN (ENTER) PRESS (MENU) TO EXIT ■■ DVR-IP4CF... -
Page 26: Record Mode
< M A T T T T T T T T T T T T T T T T T T T T－T > PAL :25,12,8,6,4,3,2,1fps. RECORD MODE T: TIME A: MOTION+SENSOR M: TIME+MOTION+SENSOR PRESS (< >), THEN (ENTER) PRESS (MENU) TO EXIT ■■■ DVR-IP4CF... - Page 27 (1) When motion has been detected, it will be recorded by “Motion Record Speed”. (2) When sensor has been triggered, it will be recorded by “Sensor Record Speed”. ※ When both “MOTION” and “SENSOR” has been triggered, it will be recorded by “Motion Record Speed”. DVR-IP4CF...
-
Page 28: Buzzer Setup
(this setup is only active when the system is under record or live status). 8. HDD FULL ALERT: Press 《ENTER》 button to setup “ON” or “OFF”, whether BUZZER SETUP PRESS (< >), THEN (ENTER) PRESS (MENU) TO EXIT ■■ DVR-IP4CF... -
Page 29: Sensor Type
5. CHANNEL-1: Press《ENTER》button to setup “NO” (Normal Open) or “NC” (Normal Close). 6. CHANNEL-2 ~ CHANNEL-4: Please follow the setup shown above (CHANNEL-1). SENSOR SETUP NOT INSTALLED NOT INSTALLED NOT INSTALLED NOT INSTALLED PRESS (< >), THEN (ENTER) PRESS (MENU) TO EXIT ■■■ DVR-IP4CF... -
Page 30: Event List
4. Press《MENU》button to exit “EVENT LIST” selection. 5. “EVENT LIST＂is situated on the second menu layer. Under this menu layer user may setup “TIME SERACH” or “EVENT SEARCH”. EVENT LIST PRESS (< >), THEN (ENTER) PRESS (MENU) TO EXIT ■■ DVR-IP4CF... -
Page 31: Time Search
2. Press《←》and《→》button to select the desired time and date. 3. Press《ENTER》button to setup playback starting time and date. 4. Press《MENU》button to exit “TIME SEARCH” selection. 5. Press《PLAY》button to play. TIME SEARCH 05/01/13 19：27：16 05/01/13 19：27：16 05/01/15 15：00：06 PRESS (< >), THEN (ENTER) PRESS (MENU) TO EXIT ■■■ DVR-IP4CF... -
Page 32: Event Search
※ BEGIN： 05/01/15 15：00：01 Displays the beginning and end time of each event. EVENT SEARCH END： 05/01/15 15：00：06 2005/01/15 15：00：01 2005/01/15 14：00：01 2005/01/15 13：00：01 2005/01/15 12：00：01 PRESS (< >), THEN (ENTER) PRESS (MENU) TO EXIT END： 05/01/15 15：00：06 ■■■ DVR-IP4CF... -
Page 33: Cf Card Setup
※ Note! Format the CF card (FORMAT/ ERASE) before first time use. ※ Please do not use the format (FORMAT) function supplied by the personal computer, data may be lost due to such action. CF CARD SETUP 512MB 100MB PRESS (< >), THEN (ENTER) PRESS (MENU) TO EXIT ■■ DVR-IP4CF... -
Page 34: Select Time
※ When the message “Time Input Error” is displayed on the screen, indicates that the time date entered is incorrect or no data. The system auto returns to CF Card setup selection. SELECT TIME 05/01/15 15：00：01 15：00：06 PRESS (< >), THEN (ENTER) PRESS (MENU) TO EXIT ■■■ DVR-IP4CF... -
Page 35: Copy
（2）Estimated time to complete data copy. （3）Request to confirm copy. （4）When the data capacity is greater than the remaining storage capacity, the message “CAPACITY IS NOT ENOUGH” will be displayed. （5）Data copy percentage completed. （6）Press《ENTER》button to start copy. （7）Press《MENU》button to exit “Copy Display”. ■■■■ DVR-IP4CF... -
Page 36: Format/ Erase
“PASSWORD CORRECT”, “CF CARD FORMATED” (flashes 3 times), indicates CF Card format is successful. 3. When password entered is incorrect, the screen will display “PASSWORD INCORRECT” (flashes 3 times), and returns to “CF CARD SETUP” selection. ※ This password equals to hard disk format password. ■■■ DVR-IP4CF... -
Page 37: Hard Drive Setup
7. HDD SIZE: Displays hard disk capacity. 8. HDD USED: Displays the capacity already used. HARD DRIVE SETUP OVERWRITE 120103MB 13321MB PRESS (< >), THEN (ENTER) PRESS (MENU) TO EXIT ■■ DVR-IP4CF... -
Page 38: Hdd Format
2. When password entered is correct, the screen will display the message “HDD FORMATTED” (flashes 3 times), indicates hard disk format is successful. 3. When password entered is incorrect, the screen will display “PASSWORD INCORRECT” (flashes 3 times), and returns to “HARD DRIVE SETUP” selection. DVR-IP4CF... -
Page 39: Network Operation
9.1.1 Online with DHCP Server Use IPEDIT.exe to find the installed Network DVR. Select this Network DVR in the Camera List Window. The default configuration will be shown on the right window. Update the IP status. Online with DHCP Server DVR-IP4CF... -
Page 40: Online Without Dhcp Server
After the “Submit” button is clicked, the IP information of this Network DVR will be updated. 9.2 Connecting Network DVR 3 methods for connecting Network DVR: 1. Online using Intranet or Fixed IP 2. Online using ADSL (PPPoE) Router 3. Online using DDNS Server DVR-IP4CF... -
Page 41: Online Using Intranet Or Fixed Ip
Start Internet Explorer, enter the IP Address of the Network DVR into the Address field, such as 192.168.1.31 or click twice on IPEdit. Before connection, “User name” and “Password” will be requested: Default User Name: admin Default Password: 1234 DVR-IP4CF... -
Page 42: Install Activex
Before entering remote connection, please install ActiveX and check your browser setup by following the procedures below: a. Open Internet Explorer under “Tools” and select “Internet Options”. Tools Internet Options b. Select “Security”, and then press “Custom Level”. Security -> Custom Level DVR-IP4CF... - Page 43 Start-up ActiveX Control DVR-IP4CF...
- Page 44 The graphic below will be shown when first time installing ActiveX Mode. Please, select “Yes” to accept installation. Download ActiveX Control Live view will be displayed when installation is successful. DVR-IP4CF...
-
Page 45: Main Display
Image Recording/ Record function setup Save Current Picture/ Save the current image Welcome! Administrator/ Display current user name About/ Version description Move the cursor inside the image range, right mouse click to display 9 function selections: ○ ○ ○ DVR-IP4CF... - Page 46 Actual size: The actual image size. 9.3.3 Rotate Four types of rotate settings: a. Rotate 0: Default state b. Rotate 180: Rotate the image by 180 degrees. c. Flip horizontal: Image flips horizontally d. Flip vertical: Image flips vertically DVR-IP4CF...
-
Page 47: Save As Jpeg
Frame Rate: Image storage according to “frame rate”. Time: Image storage according to “time”. Maximum Number of Frame in Each File: Image storage according to “maximum frame”. Save Path: Image storage according to “Save Path”. Pre Name: Image storage according to “Prefix Name”. DVR-IP4CF... -
Page 48: Save Current Picture
Supports DVR remote control function (Please refer to 6-1 Front Panel Buttons and Controls, on page 8). 9.3.7 Quality Setting Network DVR provides 5 image quality settings. The user can select the quality setting from the “Quality” list box. Highest High Medium Lowest DVR-IP4CF... -
Page 49: Resolution Setting
Only the administrator can select the “Configuration”; the ordinary user account does not have this privilege to access this function. 9.4.1 System Setting The number on Port 1 and Port 2 may be changed, press “OK” button to save the setting. System Setting Display DVR-IP4CF... -
Page 50: User Setting
9.4.2.1 User Authorization Setting Select item “Needed” to enable user authorization function, then each time before login to Network DVR the Login window will request for “Username” and “Password”. To disable user authorization function, select item “No Need”. User Setting Display DVR-IP4CF... -
Page 51: New User/ Change Password
After selecting “OK” button, the selected user account will be deleted from the “Current User List”. 9.4.3 Network Setting 9.4.3.1 Fixed IP To setup follow the steps below: 1. Select item “Manually”. 2. Enter “IP Address”, “Subnet mask”, and ”DNS”. 3. Click “OK” button to save the setting. Network Setting Display DVR-IP4CF... -
Page 52: Dhcp
If the Network DVR and ADSL modem are connected by a hub, the user can select item “Dial On Power Up” to perform the connect operation. On contrary, if the Network DVR and ADSL modem are connected directly, then please note the following steps below: ADSL Setting Display DVR-IP4CF... -
Page 53: Ddns Setting
DDNS provider service whenever the router detects that its public IP address has changed. The router logs on to an account you setup and maintain, and updates the account with its latest public IP address. You may register at DDNS Server: http://www.dyndns.org. t can autonomously and DVR-IP4CF... - Page 54 3. Click the “Enable” button. Enter “UserName” and “Password” with “DomainName”. DDNS Setting After registering the domain name, please enter the information supplied by the administrator to the Network DVR DDNS Account Setting. Select “Enable” button to start-up DDNS server, and press “Submit” button to save the setting. DVR-IP4CF...
-
Page 55: Firmware Update
(bin file) to your PC by following the procedures below: Select the Firmware to be Updated Uploading the Selected Firmware Press “Upload” button to display the message below, and follow the instruction to make the necessary setup. Firmware Update DVR-IP4CF... - Page 56 The message below displays the writing progress of the firmware update. When Firmware update is completed, it will show 100%, and a message “Click here to reboot DVR browser” will be displayed, requesting to restart the Network DVR. Firmware Update Display Firmware Update Completed, prompt to restart the device. DVR-IP4CF...
-
Page 57: Cf Card/ Hdd Player Software Description
Move the cursor to PC Player Software and double left mouse click to proceed. When proceeding PC Player Software, it auto-detects the CF card or HDD (about 1 min. to auto detect, and may differ depending on file size). ※ Network DVR does not support player software other then PC Player software. DVR-IP4CF... -
Page 58: User Interface
System Status Figure 1 When the system detects stored materials (HDD or CF card), the above graphic (Figure 1) will be shown. User may operate the function buttons to make necessary playback adjustment or store recordings onto the PC. DVR-IP4CF... - Page 59 ： Click this button to shut the system. ： Recording Material Stored ： Step Back One Frame ： Pause Playback ： Step Forward One Frame ： Quad split screen display ： CH2 Full Screen Display ： CH4 Full Screen Display DVR-IP4CF...
- Page 60 Figure 2 Figure 3 DVR-IP4CF...
- Page 61 Figure 4 Figure 5 DVR-IP4CF...
-
Page 62: Parameter Setup
B. Parameter Setup To setup the parameter, click “Parameter Setup” button to show the graphic display below (Figure 6): Figure 6 DVR-IP4CF... -
Page 63: Troubleshooting
Please reinstall the hard disk, make sure that it is properly connected, and reboot the device. Please reinsert the CF card, make sure that it is properly connected and reboot the device. Maxtor, Seagate, and Hitachi. Apacer, Sandisk, Transcend, Hagiware, A-DATA and Silicon. DVR-IP4CF... -
Page 64: Specifications
By Date, Time, Event 10/100BaseT Ethernet (RJ45) CF-Card, HDD, VCR, TCP/IP network (live & playback) DC 12V / 4A 430mm x 320mm x 80mm 30 ~ 80% RH, 5 ﾟ C ~ 40 ﾟ C (41 ﾟ F ~ 104 ﾟ F) DVR-IP4CF... - Page 65 MEMO DVR-IP4CF...
