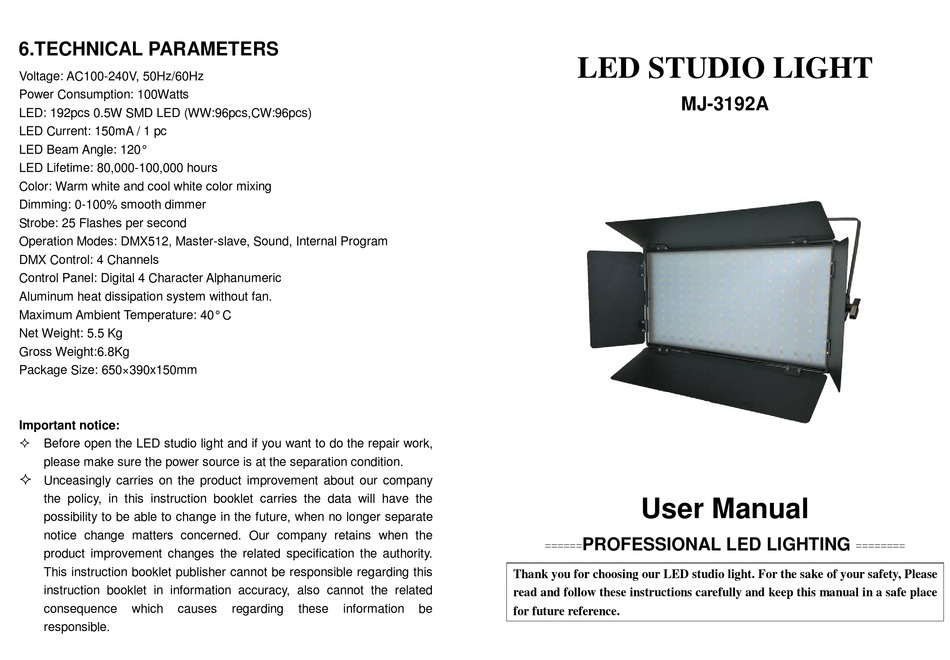

MJ LED LIGHTNING MJ-3192A User Manual

6.TECHNICAL PARAMETERS
Voltage: AC100-240V, 50Hz/60Hz
Power Consumption: 100Watts
LED: 192pcs 0.5W SMD LED (WW:96pcs,CW:96pcs)
LED Current: 150mA / 1 pc
LED Beam Angle: 120°
LED Lifetime: 80,000-100,000 hours
Color: Warm white and cool white color mixing
Dimming: 0-100% smooth dimmer
Strobe: 25 Flashes per second
Operation Modes: DMX512, Master-slave, Sound, Internal Program
DMX Control: 4 Channels
Control Panel: Digital 4 Character Alphanumeric
Aluminum heat dissipation system without fan.
Maximum Ambient Temperature: 40° C
Net Weight: 5.5 Kg
Gross Weight:6.8Kg
Package Size: 650×390x150mm
Important notice:

Before open the LED studio light and if you want to do the repair work,
please make sure the power source is at the separation condition.

Unceasingly carries on the product improvement about our company
the policy, in this instruction booklet carries the data will have the
possibility to be able to change in the future, when no longer separate
notice change matters concerned. Our company retains when the
product improvement changes the related specification the authority.
This instruction booklet publisher cannot be responsible regarding this
instruction booklet in information accuracy, also cannot the related
consequence which causes
responsible.
regarding these information

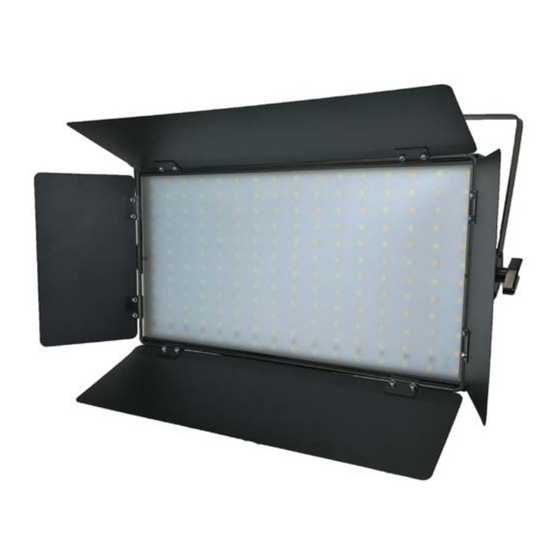

LED STUDIO LIGHT
PROFESSIONAL LED LIGHTING
======
Thank you for choosing our LED studio light. For the sake of your safety, Please
read and follow these instructions carefully and keep this manual in a safe place
be
for future reference.
MJ-3192A
User Manual
========
