5.2

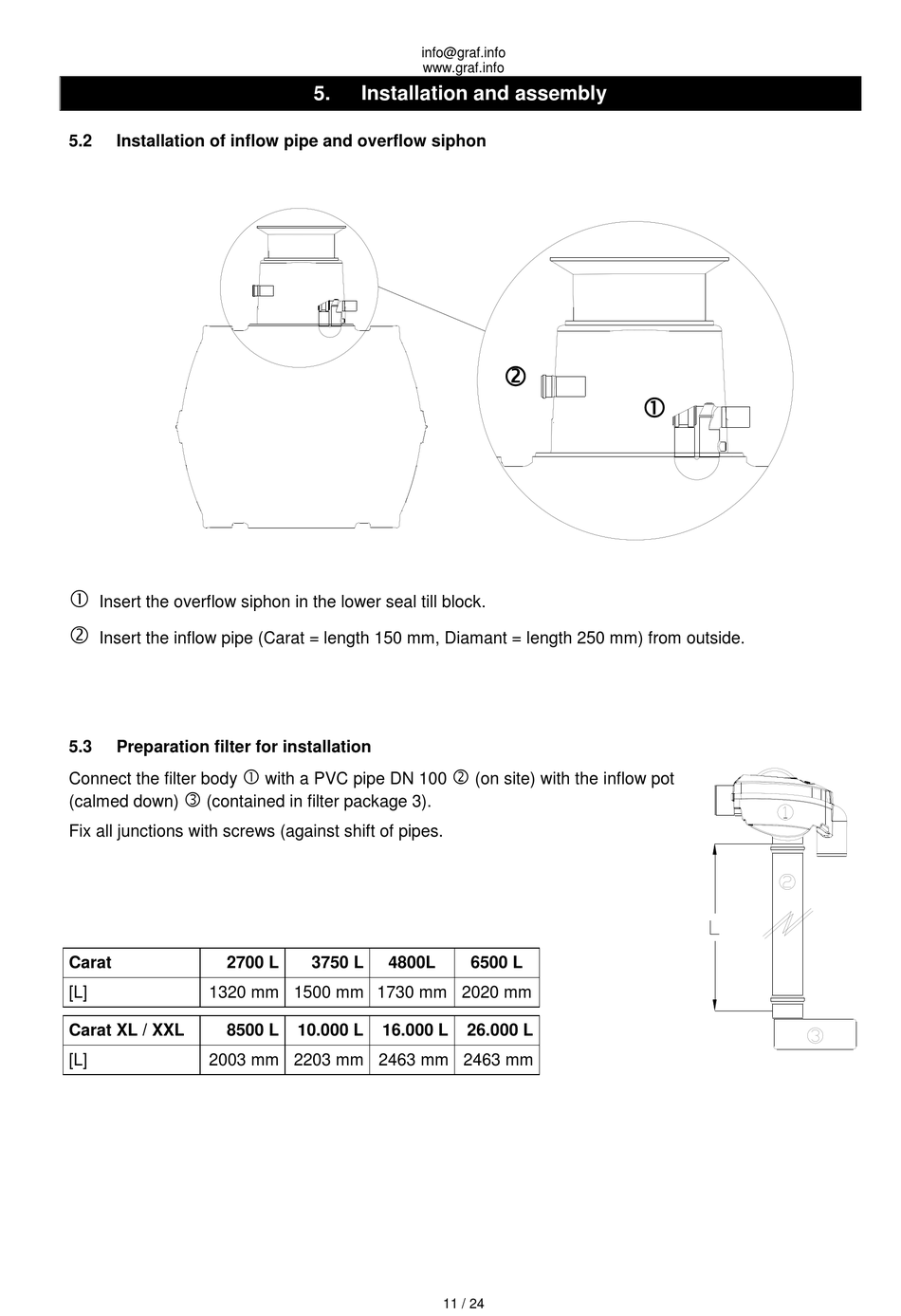

Installation of inflow pipe and overflow siphon


Insert the overflow siphon in the lower seal till block.

Insert the inflow pipe (Carat = length 150 mm, Diamant = length 250 mm) from outside.
5.3

Preparation filter for installation

Connect the filter body

(calmed down) (contained in filter package 3).
Fix all junctions with screws (against shift of pipes.
Carat 2700 L
[L] 1320 mm 1500 mm 1730 mm 2020 mm
Carat XL / XXL 8500 L
[L] 2003 mm 2203 mm 2463 mm 2463 mm
5. Installation and assembly

with a PVC pipe DN 100
3750 L 4800L
10.000 L 16.000 L
info@graf.info
www.graf.info


(on site) with the inflow pot
6500 L
26.000 L
