Chapter 4. Installation
This chapter provides the following procedures for installing the QuickPanel+ unit:
■
■
■
■
■
■
4.1
Installing the Protective Sheet
1. Wipe the display of any dust or fingerprints.
2. Peel a corner of the clear side of the protective sheet.
3. Begin applying the corner to the display.
4. Slowly apply the rest of the protective sheet, smoothing out as you go.
5. Peel the green curing film off the protective sheet.
4.2
Choosing a Mounting Location
When mounting the QuickPanel+ make sure that the mounting area allows room to insert and
remove the SD card, cables, and mounting brackets. The QuickPanel+ should not be
mounted at an angle more than 30° from the vertical as illustrated below.

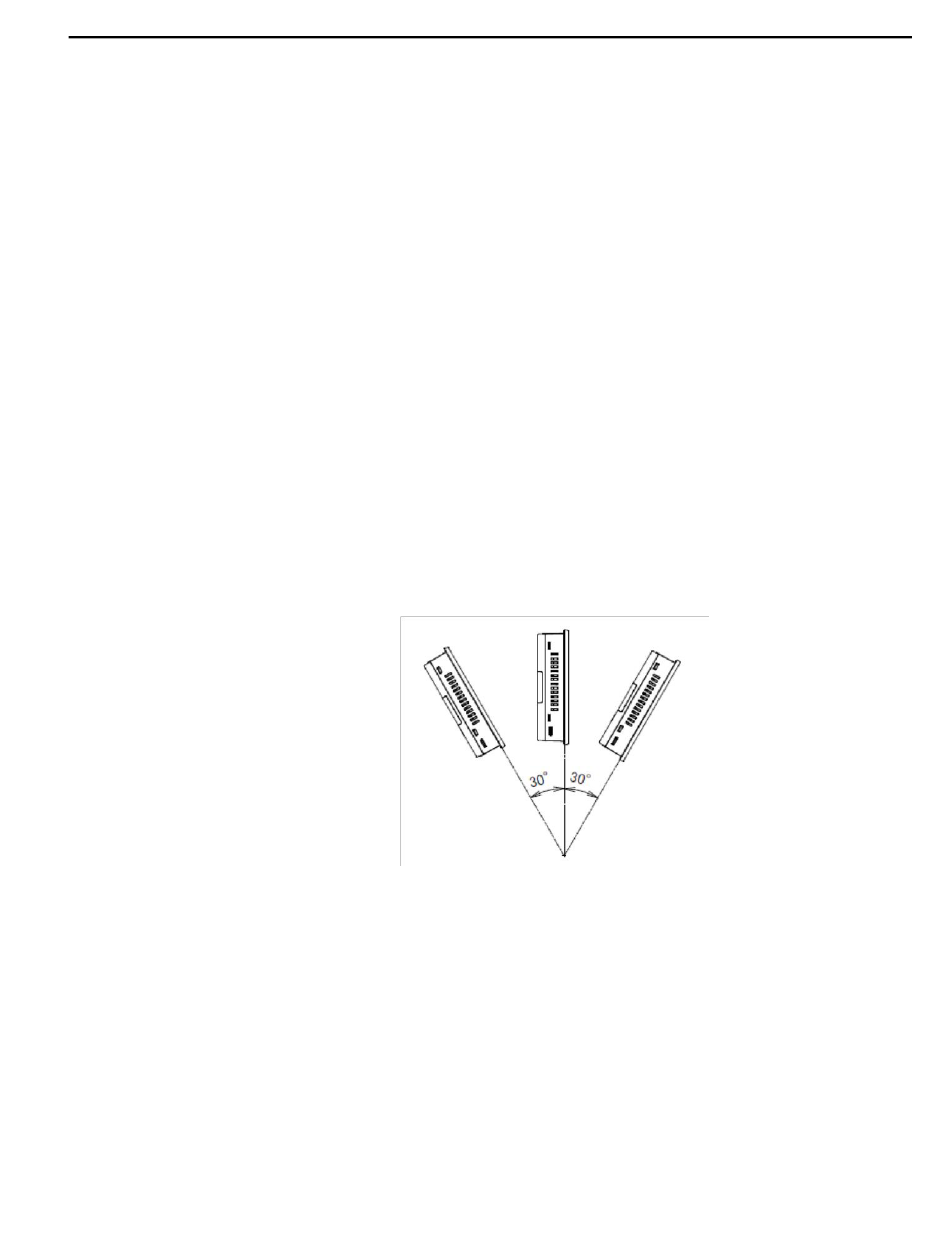

Figure 4. Mounting Angle
Choose a location that will allow natural convection air flow from bottom to top of the
QuickPanel+ unit.
For environmental requirements, see 1.1.3, "Environmental Specifications."
4.3
Panel Mounting
To mount the QuickPanel+ in an enclosure, you will need:
■
■
The QuickPanel+ has four mounting holes located on the top and bottom of the unit. The
mounting holes are indicated in the drawing below.
GFK-2847
Installing the Protective Sheet
Choosing a Mounting Location
Panel Mounting
Mounting on a VESA Arm
Installing/Replacing the Battery
Connectors
a Phillips head screwdriver
four mounting brackets (supplied)
QuickPanel+ User's Manual–November 2013
Chapter 4. Installation
19
