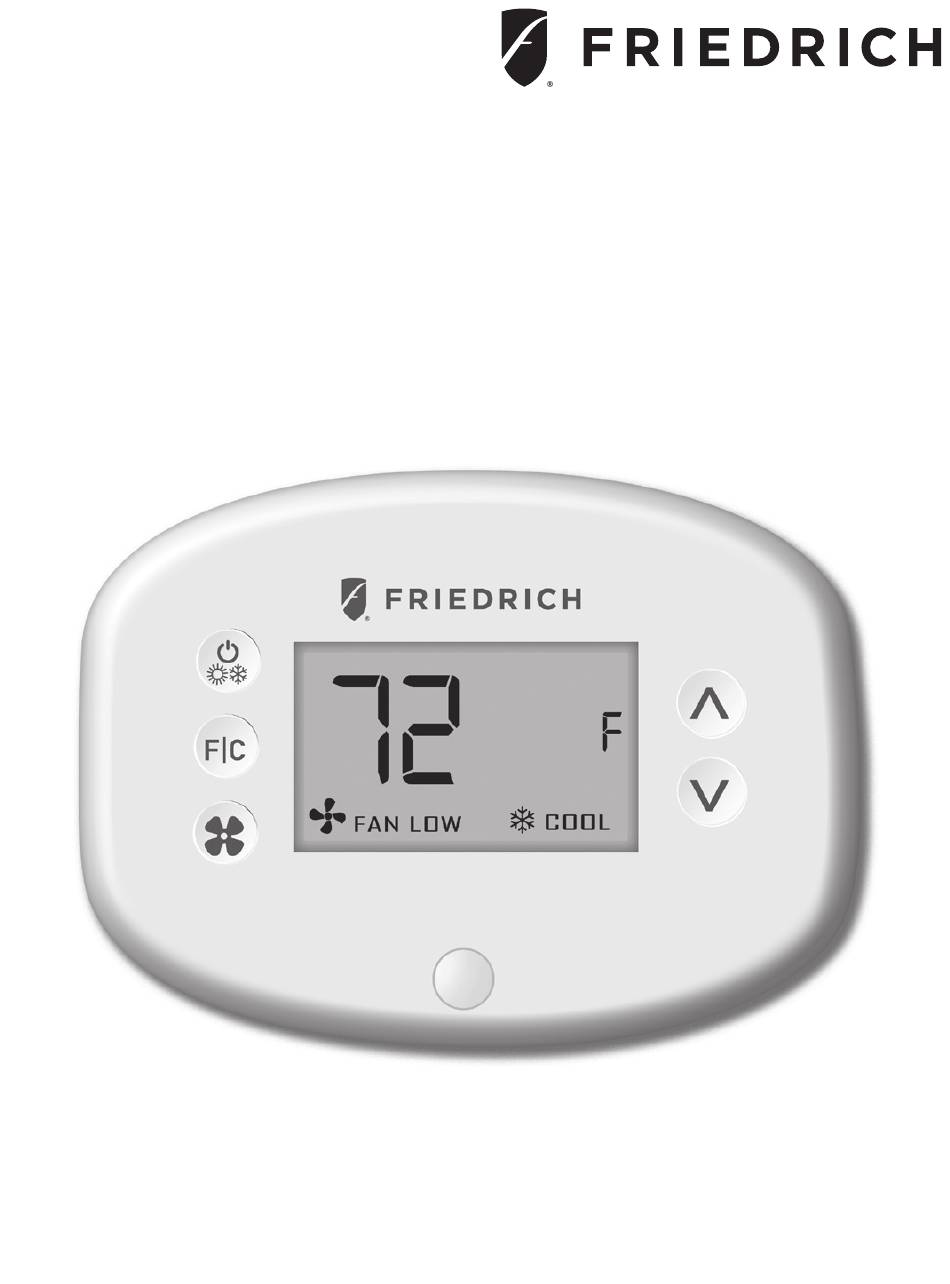

- Page 1 EMRT2 Energy Management Wired Thermostat with an Occupancy Sensor INSTRUCTION MANUAL...
-
Page 3: Table Of Contents
Table of Contents Introduction ......................5 Before You Begin ....................6 Programming a Thermostat with a Network Programmer ........7 Thermostat Installation ..................8 Thermostat Configuration ..................9 Setting the thermostat clock ................10 Entering the room number ................... 11 Configuring the Equipment Settings - Compressor Type ........ - Page 4 Table of Contents 18 – MAXIMUM SET POINT ................36 19 – TEMPERATURE CONTROL MODE ............37 20 – AUTO CHANGEOVER SET POINT OFFSET ..........38 21 – SETBACK SET POINTS / AUTO-RESTORE ..........39 22 – AUTOMATIC HUMIDITY CONTROL ............
-
Page 5: Introduction
Introduction Friedrich EMRT2 Energy Management Thermostats for the hospitality industry deliver unprecedented energy savings without compromising guest comfort. An integrated occupancy sensor uses a combination of motion and thermal sensing technologies for accurate occupancy detection. Reliable occupancy detection allows for energy savings when rooms are unoccupied. -
Page 6: Before You Begin
Before You Begin Determine the appropriate installation location for the thermostat. The thermostat should face the bed area of the room. Set the PTAC/ Vert-I-Pak unit to “External Thermostat” (Class 2) mode. Consult the PTAC/ Vert-I-Pak unit documentation to determine how to set the PTAC/ Vert-I-Pak unit to “External Thermostat”... -
Page 7: Programming A Thermostat With A Network Programmer
Before You Begin Programming a Thermostat with a Network Programmer In case of Network Installation with Online management, the thermostat must be programmed with a Network Programmer specific to the property before the installation. The thermostat must not be powered during the pairing procedure. Plug one programmer connector into the thermostat;... -
Page 8: Thermostat Installation
Thermostat Installation Set the PTAC unit to “External Thermostat” (Class 2) mode. Mounting the thermostat to the wall Unplug the PTAC/ Vert-I-Pak unit; Remove the thermostat cover; Connect the thermostat wires to the supplied Wiring Connector - refer to the Wiring Table to determine proper connections; Plug in the wiring connector into to the thermostat;... -
Page 9: Thermostat Configuration
Thermostat Confi guration Once the thermostat is powered, thermostat confi guration settings will appear on the thermostat screen. In order to properly operate the PTAC/ Vert-I-Pak unit: Set the thermostat clock; Enter the room number; Confi gure the equipment settings; Select Energy Savings Preset;... -
Page 10: Setting The Thermostat Clock
Thermostat Confi guration Setting the thermostat clock HOURS MINUTES Set the thermostat clock to current time in 24h (Military Time) format. Use the “Up” and “Down” buttons to set the hours; Press the “Fan” button to advance to the minutes setting; Use the “Up”... -
Page 11: Entering The Room Number
Thermostat Confi guration Entering the room number Enter the room number by changing the digits on the screen. Leading zeros “0” preceding other digits will be ignored, i.e. Room number “123” should be entered as “00123”. Use the “Up” and “Down” buttons to change the digit; Press the “Fan”... -
Page 12: Configuring The Equipment Settings - Compressor Type
Thermostat Confi guration Confi guring the Equipment Settings - Compressor Type COMPRESSOR TYPE Use the “Up” and “Down” buttons to change the compressor type by changing the fi rst digit; No Compressor Heat Pump Air Conditioner Press the “Fan” button to advance to the next setting; Indicates default setting;... -
Page 13: Configuring The Equipment Settings - Electric Heat
Thermostat Confi guration Confi guring the Equipment Settings - Electric Heat ELECTRIC HEAT Use the “Up” and “Down” buttons to change the Electric Heat setting by changing the second digit; No Electric Heat Electric Heat Press the “Fan” button to advance to the next setting; Indicates default setting;... -
Page 14: Configuring The Equipment Settings - Reversing Valve
Thermostat Confi guration Confi guring the Equipment Settings - Reversing Valve REVERSING VALVE Use the “Up” and “Down” buttons to change the Reversing Valve setting by changing the third digit; OB contact is energized to cool; OB contact is energized to heat; Refer to the PTAC unit documentation to determine the correct OB VALVE setting. -
Page 15: Configuring The Energy Saving Settings
Thermostat Confi guration Confi guring the Energy Saving Settings Use the “Up” and “Down” buttons to select the Energy Saving preset: E-0* Energy Savings Off - No Temperature Setback; Lowest Energy Savings; Lower Energy Savings; Standard Energy Savings; Higher Energy Savings; Highest Energy Savings;... -
Page 16: Testing The Thermostat
Thermostat Configuration Testing the thermostat Following the thermostat configuration, test if the thermostat is controlling the PTAC unit. Press the “Power” button to turn the thermostat ON; Press the “Up” and “Down” buttons to change the temperature set point above and below the current room temperature to test if the thermostat initiates heating and cooling - the PTAC unit should turn heating and air conditioning on and off. -
Page 17: Accessing The Thermostat Settings
Custom Energy Savings Settings If you don’t want to use the one of the energy saving presets listed on page 17 and detailed in the Appendix 1, you can enter the custom energy savings settings. Accessing the Thermostat Settings Press and hold the “Confi guration” button until the fi rst thermostat settings screen appears. -
Page 18: Using The Thermostat Settings Screens
Custom Energy Savings Settings Using the Thermostat Settings Screens SETTING VALUE SCREEN NUMBER Use the “Up” and “Down” buttons to change the setting; Press the “F/C” button to advance to the next setting; Press the “Fan” button to return to the previous setting; Press the “Power”... -
Page 19: Fan Control Mode
Custom Energy Savings Settings 01 – FAN CONTROL MODE Select Fan Control Mode: MANUAL - guest can select automatic or continuous fan mode; 01 * AUTOMATIC - fan runs only when there is a demand for heating or air conditioning; Indicates default setting;... -
Page 20: St Stage Differential - Heat
Custom Energy Savings Settings 02 – 1 STAGE DIFFERENTIAL - HEAT 02-30 (0.2°F - 3.0°F; 0.5°F* default setting) Select the number of degrees the thermostat has to sense between the automatic changeover temperature for heat and the room temperature before a call for the 1st stage heating is initiated. -
Page 21: Nd Stage Differential - Heat
Custom Energy Savings Settings 03 – 2 STAGE DIFFERENTIAL - HEAT 10-20 (1.0°F - 2.0°F*; 2.0°F* default setting) Select the difference between 1st stage heating and 2nd stage heating initiation. -
Page 22: 1St Stage Differential - Cool
Custom Energy Savings Settings 04 – 1ST STAGE DIFFERENTIAL - COOL 02-30 (0.2°F - 3.0°F; 0.5°F* default setting) Select the number of degrees the thermostat has to sense between the automatic changeover temperature for cool and the room temperature before a call for the 1st stage cooling is initiated. -
Page 23: Incidental Occupancy Threshold
Custom Energy Savings Settings 05 – INCIDENTAL OCCUPANCY THRESHOLD 00-60 (05* default setting) Select the minimum period of time (in minutes) for which occupancy needs to be detected to enter the guest occupancy mode. When occupancy is detected, thermostat will switch to occupied mode for a duration of “Incidental Occupancy Threshold”... -
Page 24: Night Occupancy Threshold
Custom Energy Savings Settings 06 – NIGHT OCCUPANCY THRESHOLD 00-60 (01* default setting) Select the minimum period of time (in minutes) for which occupancy needs to be detected in order to consider the room occupied during the “Night Occupancy”period. When occupancy is detected during the “Night Occupancy Period” for longer than the “Night Occupancy Threshold”... -
Page 25: Forced 2Nd Stage Heating
Custom Energy Savings Settings 07 – FORCED 2ND STAGE HEATING 00-60 (30* default setting) Select a number of minutes 1st stage heating will run before 2nd stage heating is automatically initiated if the guest set point is not reached and the 2nd stage heating is not initiated through differential settings. -
Page 26: Night Occupancy Start
Custom Energy Savings Settings 08 – NIGHT OCCUPANCY START 00-23 (21* default setting) Select the start time (in hours - 24- hour clock) for “Night Occupancy” If occupancy is detected for a period of time longer than the “Night Occupancy Threshold” during “Night Occupancy” period, the thermostat will disable the occupancy sensor and consider the room occupied until the end of the “Night Occupancy”... -
Page 27: Night Occupancy End
Custom Energy Savings Settings 09 – NIGHT OCCUPANCY END 00-23 (09* default setting) Select the time (in hours - 24-hour clock) for “Night Occupancy” to end. The time of day the “Night Occupancy” ends and the thermostat switches back to the room sensing settings chosen in the other occupancy modes. -
Page 28: Temperature Recovery Time
Custom Energy Savings Settings 10 – TEMPERATURE RECOVERY TIME 00-60 (25* default setting) Select the maximum time allowed for a PTAC unit to attain temperature as defi ned by Heat and Cool “Recovery Temperature”; “Temperature Recovery Time” selected here and the actual temperature recovery ability of the PTAC unit are used to calculate setback temperatures. -
Page 29: Recovery Temperature - Heat
Custom Energy Savings Settings 11 – RECOVERY TEMPERATURE - HEAT 62-82 (67°F* default setting) Select the room temperature in °F that a PTAC unit will have to attain within the selected “Temperature Recovery Time” when there is a need for heating. -
Page 30: Temperature Setback Delay - Heat
Custom Energy Savings Settings 12 – TEMPERATURE SETBACK DELAY - HEAT 00-120 (20* default setting) Select the time delay (in minutes) for which the room that is in the guest occupancy mode needs to be unoccupied before the temperature setback is initiated. This feature prevents initiating temperature setback prematurely while the guest is still in the room but in an area where occupancy cannot be detected by the occupancy sensor. -
Page 31: Minimum Setback Temperature
Custom Energy Savings Settings 13 – MINIMUM SETBACK TEMPERATURE 52-72 (64°F* default setting) Select the “Minimum Setback Temperature” in °F. Setback temperature is calculated by measuring PTAC unit’s ability to attain “Recovery Temperature - Heat” within “Temperature Recovery Time”. If recovery is disabled (“Temperature Recovery Time” is set to “0”) or if setback temperatures have not yet been calculated, the “Minimum Setback Temperature”... -
Page 32: Temperature Setback Delay - Cool
Custom Energy Savings Settings 14 – TEMPERATURE SETBACK DELAY - COOL 00-120 (20* default setting) Select the time delay (in minutes) for which the room that is in the guest occupancy mode needs to be unoccupied before the temperature setback is initiated. This feature prevents initiating temperature setback prematurely while the guest is still in the room but in an area where occupancy cannot be detected by the occupancy sensor. -
Page 33: Maximum Setback Temperature
Custom Energy Savings Settings 15 – MAXIMUM SETBACK TEMPERATURE 72-92 (78°F* default setting) Select the “Maximum Setback Temperature” in °F. Setback temperature is calculated by measuring PTAC unit’s ability to attain “Recovery Temperature - Cool” within “Temperature Recovery Time”. If recovery is disabled (“Temperature Recovery Time” is set to “0”) or if setback temperatures have not yet been calculated, the “Maximum Setback Temperature”... -
Page 34: Recovery Temperature - Cool
Custom Energy Savings Settings 16 – RECOVERY TEMPERATURE - COOL 62-82 (74°F* default setting) Select the room temperature in °F that a PTAC unit will have to attain within the selected “Temperature Recovery Time” when there is a need for air conditioning. -
Page 35: Minimum Set Point
Custom Energy Savings Settings 17 – MINIMUM SET POINT 64-84 (66°F* default setting) Select the minimum set point in °F that a guest can select. -
Page 36: Maximum Set Point
Custom Energy Savings Settings 18 – MAXIMUM SET POINT 60-82 (78°F* default setting) Select the maximum set point in °F that a guest can select. -
Page 37: Temperature Control Mode
Custom Energy Savings Settings 19 – TEMPERATURE CONTROL MODE Select Temperature Control Mode: MANUAL - Allows users to select HEAT only or COOL only temperature control mode to maintain the room temperature; 01 * AUTOMATIC - Thermostat automatically turns on heating or air conditioning to maintain the room temperature at the selected temperature set point;... -
Page 38: Auto Changeover Set Point Offset
Custom Energy Savings Settings 20 – AUTO CHANGEOVER SET POINT OFFSET 00-04 (01°F* default setting) Select the difference between the guest-selected set point and the heat and the cool set point when the thermostat is in the automatic temperature control mode. This value plus the 1st stage differential defi ned in steps 02 and 04, defi nes the temperature at which the thermostat would automatically change heating/cooling modes. -
Page 39: Setback Set Points / Auto-Restore
Custom Energy Savings Settings 21 – SETBACK SET POINTS / AUTO-RESTORE When room is unoccupied and the thermostat is in the setback mode or turned off, it will NOT maintain the temperature between heat and cool setback set points; When guest enters the room, the thermostat will be turned off - it will not automatically restore the most recent guest settings;... -
Page 40: Automatic Humidity Control
Custom Energy Savings Settings 22 – AUTOMATIC HUMIDITY CONTROL † Disable automatic humidity control; 01 * Enable automatic humidity control; When “Automatic Humidity Control” is enabled, thermostat will turn on air conditioning in an unoccupied room when humidity raises above 60% and room temperature is above 72°F until either room humidity is below 55% or room temperature is below 72°F;... -
Page 41: Temperature Calibration
Custom Energy Savings Settings 23 – TEMPERATURE CALIBRATION -5.0 – 5.0 (0.0°F* default setting) Calibrate the temperature display : -5.0°F - 5.0°F. -
Page 42: Troubleshooting
Troubleshooting Error Codes ERR 1 Thermostat Temperature Sensor Hardware Defect ERR 2 Thermostat Radio Hardware Defect ERR 3 Thermostat Radio Software Defect ERR 5 Thermostat Memory Defect... -
Page 44: Appendix 1 - Energy Saving Presets
APPENDIX 1 - Energy Saving Presets Level Level Level Level Level Level Temperature Control Mode AUTO AUTO AUTO AUTO AUTO AUTO Fan Control Mode AUTO AUTO AUTO AUTO AUTO AUTO Minimum Setpoint Maximum Setpoint Deadband 1st Stage Differential Heat 2nd Stage Differential Heat 1st Stage Differential Cool Force 2nd Stage Heating After Recovery Time... -
Page 45: Appendix 2 - Glossary
APPENDIX 2 - Glossary “Automatic Fan Control Mode” - fan runs only when be detected in order to enter the “Guest Occupancy” there is a demand for heating or cooling; mode; “Manual Fan Control Mode” - guest can select between “Night Occupancy Threshold”... -
Page 46: Warranty Information
Technical Specifications Thermostat Case Dimensions (Imperial) 4.015 x 5.5118” x 0.925” Case Dimensions (Metric) 102mm x 140mm x 23.5mm Screen Dimensions (Imperial) 3.625" x 2.125" Screen Dimensions (Metric) 92mm x 54mm Operating Voltage 3V DC - 2 "AA" Cell Batteries Control Outputs Occupancy Sensor Beam Width ±47°... - Page 48 Friedrich Air Conditioning Co. 10001 Reunion Place, Ste 500 San Antonio, TX 78216 (210) 546-0500 / (800) 541-6645 95200300 Rev 00 www.friedrich.com...
